Description
Features and Benefits of the QLE2670 QLogic 16GB

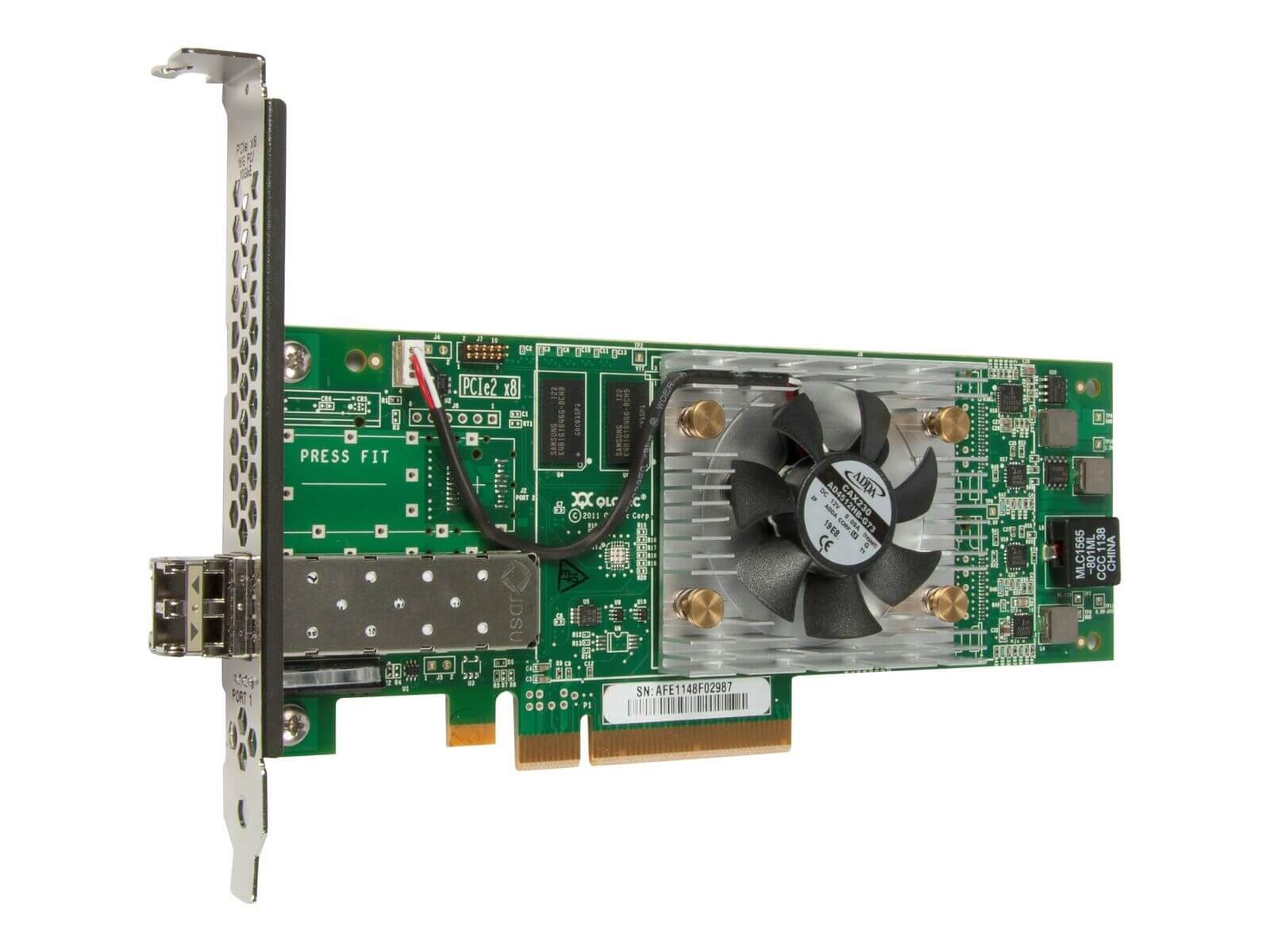

The QLE2670 QLogic 16GB Single Channel PCI-E 3.0 Fibre Channel Host Bus Adapter is a hardware component that connects servers to storage networks. Some of the features and benefits of this adapter include:
- High-Speed Connectivity: The QLE2670 provides 16Gbps Fibre Channel connectivity, delivering high-speed data transfer rates for demanding workloads.
- PCI-E 3.0 Support: The adapter supports PCI-E 3.0, which provides higher bandwidth and lower latency compared to previous versions of the PCI-E interface.
- Single-Channel Design: The QLE2670 features a single-channel design, which is ideal for small to medium-sized deployments that don’t require multiple channels.
- Advanced Data Protection: The adapter includes advanced data protection features, including hardware-assisted data integrity, end-to-end data protection, and data encryption.
- Quality of Service (QoS): The QLE2670 supports QoS, allowing you to prioritize traffic and ensure that critical applications receive the necessary bandwidth.
- Advanced Management Tools: The adapter includes advanced management tools, such as QConvergeConsole, which provides real-time information about adapter performance and allows you to update firmware, change adapter settings, and run diagnostic tests.
- Green Features: The QLE2670 includes power-saving features, such as Dynamic Power Management (DPM) and Energy Efficient Ethernet (EEE), which can help reduce power consumption and lower operating costs.
Monitoring Performance Metrics with the QLE2670 QLogic HBA
The QLE2670 QLogic 16GB Single Channel PCI-E 3.0 Fibre Channel Host Bus Adapter is a hardware component used to connect servers to storage networks. To monitor the performance of this adapter, you can track the following performance metrics:
- Throughput: This measures the amount of data that can be transferred per unit of time. You can use tools like Windows Performance Monitor or third-party monitoring tools to monitor throughput.
- I/O Operations per Second (IOPS): This measures the number of input/output operations that can be performed per second. You can use tools like Windows Performance Monitor or third-party monitoring tools to monitor IOPS.
- Latency: This measures the time it takes for the adapter to respond to a request. You can use tools like Windows Performance Monitor or third-party monitoring tools to monitor latency.
- Queue Depth: This measures the number of I/O requests that are waiting to be processed by the adapter. You can use tools like Windows Performance Monitor or third-party monitoring tools to monitor queue depth.
- Error Rates: This measures the number of errors that occur during data transfer, such as transmission errors or timeouts. You can use tools like QConvergeConsole or third-party monitoring tools to monitor error rates.
- Bandwidth: This measures the amount of data that can be transferred over a network connection in a given amount of time. You can use tools like Windows Performance Monitor or third-party monitoring tools to monitor bandwidth.
Compatibility with Operating Systems and Hardware Platforms
The QLE2670 QLogic 16GB Single Channel PCI-E 3.0 Fibre Channel Host Bus Adapter is designed to provide high-speed connectivity between servers and storage networks. The adapter is compatible with a variety of operating systems and hardware platforms, including:
Operating Systems:
- Microsoft Windows Server 2019, 2016, 2012 R2, 2012, 2008 R2
- Red Hat Enterprise Linux (RHEL) 8.3, 8.2, 8.1, 7.9, 7.8, 7.7, 7.6, 7.5, 7.4
- SUSE Linux Enterprise Server (SLES) 15 SP2, 15 SP1, 15, 12 SP5, 12 SP4, 12 SP3
- VMware ESXi 7.0, 6.7 U3, 6.5 U3, 6.0 U3, 5.5 U3, 5.1 U3
Hardware Platforms:
- Dell PowerEdge R, T, M, and C Series servers
- HPE ProLiant DL, ML, and BL Series servers
- IBM System x and BladeCenter servers
- Oracle Sun x86 servers
- Fujitsu Primergy servers
- Supermicro Xeon E5/E7 Series servers
General Information about this QLogic QLE2670
- Manufacturer: QLogic
- Part Number or SKU# QLE2670
- Product Type : Controller
- Product Name : Fibre Channel
Technical Specifications of QLE2670 QLogic 16GB FC HBA
- Interface: PCI Express 3.0 x8
- Connectivity: Fibre Channel (FC)
- Speed: 16 Gbps (Gen 5)
- Port configuration: Single Port
- Bus type: PCIe 3.0 x8
- Data transfer rate: Up to 6.4 GB/s (full duplex)
- Form factor: Low-profile PCI Express card
- Operating system support: Windows, Linux, VMware
- Management software: QConvergeConsole, SANsurfer
- Power consumption: 7.1W (typical)
- Dimensions: 2.71 in x 6.60 in (low-profile)
- Weight: 0.34 lbs (low-profile)
