Description
Product Overview

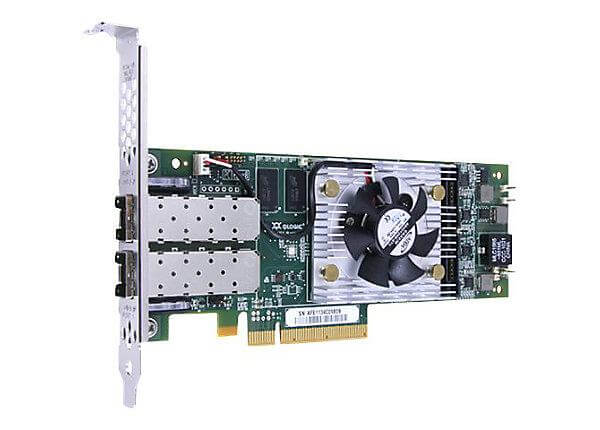

The QLE8362-SR-CK Qlogic -Network Adapter Pci Express is a network interface card that enables data communication between devices on a network. It is designed to work with servers, storage devices, and other network-enabled devices. This adapter card is built on the PCI Express architecture and uses SR-IOV (Single Root I/O Virtualization) technology to provide high-performance networking capabilities. In this article, we will discuss the features and benefits of the QLE8362-SR-CK Qlogic -Network Adapter Pci Express.
Features of QLE8362-SR-CK Qlogic -Network Adapter Pci Express
The QLE8362-SR-CK Qlogic -Network Adapter Pci Express offers several features that make it a powerful and reliable network interface card. Some of its key features include:
- PCI Express Architecture: The QLE8362-SR-CK Qlogic -Network Adapter Pci Express is built on the PCI Express architecture, which provides a high-speed data transfer rate. This architecture allows for faster data transfer between the network adapter and the host system.
- SR-IOV Technology: This network adapter uses SR-IOV (Single Root I/O Virtualization) technology to provide virtualization capabilities. With SR-IOV, multiple virtual machines can share a single physical network interface card, which improves network performance and reduces the need for additional hardware.
- Dual-Port Connectivity: The QLE8362-SR-CK Qlogic -Network Adapter Pci Express features dual-port connectivity, which enables two network connections to be established simultaneously. This feature provides redundancy and load balancing, which enhances network reliability and performance.
- 10 Gigabit Ethernet: This network adapter supports 10 Gigabit Ethernet, which provides high-speed data transfer rates of up to 10 Gbps. This feature makes it ideal for applications that require large amounts of data to be transferred quickly, such as data centers, cloud computing, and high-performance computing.
- Full Duplex Mode: The QLE8362-SR-CK Qlogic -Network Adapter Pci Express supports full duplex mode, which allows data to be transmitted and received simultaneously. This feature improves network efficiency and reduces the amount of time required to transfer data.
Benefits of QLE8362-SR-CK Qlogic -Network Adapter Pci Express
The QLE8362-SR-CK Qlogic -Network Adapter Pci Express offers several benefits that make it an ideal choice for network-enabled devices. Some of its key benefits include:
- High Performance: The QLE8362-SR-CK Qlogic -Network Adapter Pci Express delivers high-performance networking capabilities, which allows for faster data transfer rates and improves overall network efficiency.
- Scalability: With its SR-IOV technology and dual-port connectivity, this network adapter can easily scale to meet the growing demands of a network. This feature makes it ideal for organizations that need to expand their network infrastructure.
- Reliability: The QLE8362-SR-CK Qlogic -Network Adapter Pci Express offers redundancy and load balancing, which enhances network reliability and performance. This feature ensures that network-enabled devices are always connected and available.
- Cost-Effective: This network adapter provides virtualization capabilities, which reduces the need for additional hardware. This feature makes it a cost-effective solution for organizations that need to improve their network infrastructure.
General Information about the Qlogic QLE8362-CU-CK
- Manufacturer: Qlogic
- Part Number or SKU# QLE8362-SR-CK
- Device Type : Network adapter
Technical Information
- Form factor : plug-in card – low profile
- Pci specification revision : pcie 2.0, pcie 3.0
- Interface (bus) type : pci express 3.0 x4 / pci express 2.0 x8
Networking
- Ports : 10GB ethernet x 2
- Connectivity technology : wired
- Data link protocol : 10 Gigabit lan, fcoe
- Fibre channel : fc-gs-2, fc-gs-3, fc-tape, fcp-2, fc-bb-5, scsi-fcp
- Data transfer rate : 10 Gbps
- Capacity : concurrent logins : 2048 active exchanges : 2048
- Network / transport protocol : tcp/ip, udp/ip, iscsi, slp
- Remote management protocol : smi-s
- Features : flow control, full duplex capability, vlan support, ipv6 support, data center bridging exchange (dcbx) support, priority-based flow control, enhanced transmission selection, jumbo frames support, ipv4 support, pxe support, large send offload (lso), giant send offload (gso), large receive offload (lro), receive side scaling (rss), single root i/o virtualization (sr-iov), nic partitioning (npar), priority encoding, transparent (n_port id virtualization – npiv) mode support, extended message-signaled interrupts (msi-x)
- Compliant standards : ieee 802.1q, ieee 802.1p, ieee 802.3x, ieee 802.3ad (lacp), ieee 802.3ae, ieee 802.1qbb, ieee 802.1qaz
Expansion / Connectivity
- Interfaces : 2 x 10gb ethernet – sfp+
- Compatible slots : 1 x pci express 3.0 x4 / pci express 2.0 x8 – low-profile.
