Description
More Specification QSFP Network Cable

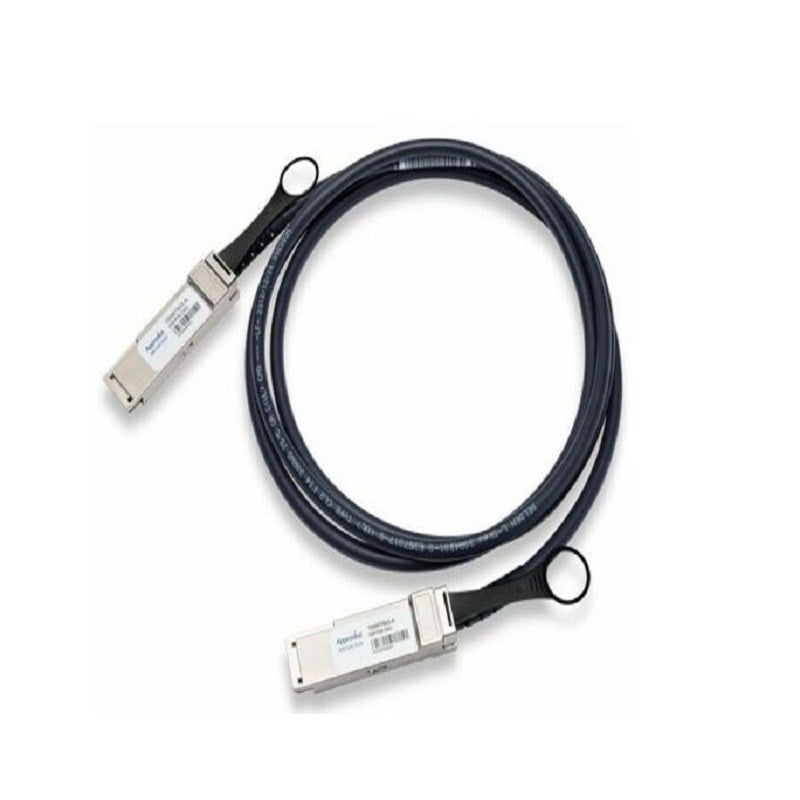

The QSFP-100G-CU3M= Cisco 3 Meter Passive Copper Network Cable is a high-speed data transfer cable designed for use with Cisco’s QSFP (Quad Small Form-Factor Pluggable) transceivers. The cable is 3 meters (9.8 feet) in length and is made of passive copper, which means it does not require an external power source to operate.
The cable supports data transfer speeds of up to 100 Gbps, making it suitable for use in high-bandwidth applications such as data center networks, enterprise networks, and service provider networks. It also supports 40 and 100 Gigabit Ethernet (40/100 GbE) standards, allowing for seamless integration with existing network infrastructure.
The product cable is also compliant with the IEEE 802.3ba standard and is RoHS compliant, ensuring that it meets the latest environmental regulations. The cable has a durable and sturdy design that can withstand the rigors of daily use in a data center or enterprise environment.
High Performance for Passive Copper Cable
The QSFP-100G-CU3M= Cisco 3 Meter Passive Copper Network Cable is a high-performance network cable that is designed for use with 100 Gigabit Ethernet (100 GbE) networks. It is a passive copper cable that uses quad small form-factor pluggable (QSFP) connectors at each end, which provide a high-density, low-power solution for connecting network devices. The cable is 3 meters in length, which provides enough length to connect devices that are located in close proximity to each other.
The cable provides support for 100 GbE data rates and is compliant with IEEE 802.3ba and SFF-8436 specifications. It has been tested and certified by Cisco to ensure that it meets the standards for high-speed data transmission. Additionally, the cable is constructed with high-quality materials to ensure that it is durable and can withstand the rigors of daily use in a network environment.
Exceptional Reliability
The QSFP-100G-CU3M= Cisco 3 Meter Passive Copper Network Cable is a reliable and high-performance cable designed for use in data centers and enterprise networks. It uses a passive copper design, which allows for lower power consumption and reduced heat generation compared to active copper or optical cables. The cable is also compliant with industry standards, including IEEE 802.3bm and RoHS, ensuring compatibility with most network devices.
The cable is designed to support high-speed data transfer, with a maximum data rate of 100 Gbps. This makes it ideal for use in high-bandwidth applications such as data center interconnects, cloud computing, and big data. Additionally, the cable is constructed with a durable and flexible design, which allows for easy installation and routing in tight spaces.
General Information about this Cisco QSFP-100G-CU3M=
- Manufacturer : Cisco
- Model Number or SKU# QSFP-100G-CU3M=
- Product Type: Direct Attach Cable
- Product Name: 100GBASE-CR4 QSFP Passive Copper Cable
Technical Information for 3 Meter Copper Cable
- Cable Type: QSFP
- Cable Length: 3 Meter Copper Cable
- Connector on First End: 1 x QSFP Network
- Connector on Second End: 1 x QSFP Network
- Device Supported: Network Device
- Data Transfer Rate: 12.50 GB/s
Applications of Direct Attach Cable
- 100 Gigabit Ethernet links
- Fiber Channel over Ethernet
- Data storage and communication industry
- Switches, servers,routers and HBA
- Enterprise network
- SAN (Storage area networks)
- Data center cabling infrastructure
- High density connections between networking equipment
Regulatory and Standards compliance for QSFP Cable
Standards
- SFF-8665: QSFP+ 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) – Rev 1.8 May 10, 2013
- SFF-8636: Common Management Interface – DRAFT Rev 1.9 May 12, 2014
- 802.3™-2012 IEEE Standard for Ethernet
- IEEE 802.3ba Amendment of IEEE Std 802.3-2012
- IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014)
- GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable
- GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies
- GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment
- GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors
Safety
- Cable jacket of QSFP copper modules is UL E116441 Compliant
- QSFP copper cables are ELV compliant
Features
- QSFP28 conforms to the Small Form Factor SFF8665
- 4-Channel Full-Duplex Passive Copper Cable
- Up to 25.78 Gbps data rate per channel
- Maximum aggregate data rate: 100Gb/s (4 x 25.78Gb/s)
- Compliant with IEEE 802.3bj 100GEBASE-CR4
- Up to 5m transmission
- Single 3.3V power supply
- 24AWG to 30AWG cable available
- Operating temperature range: 0 to 70°C
- RoHS Compliant and Lead-Free
