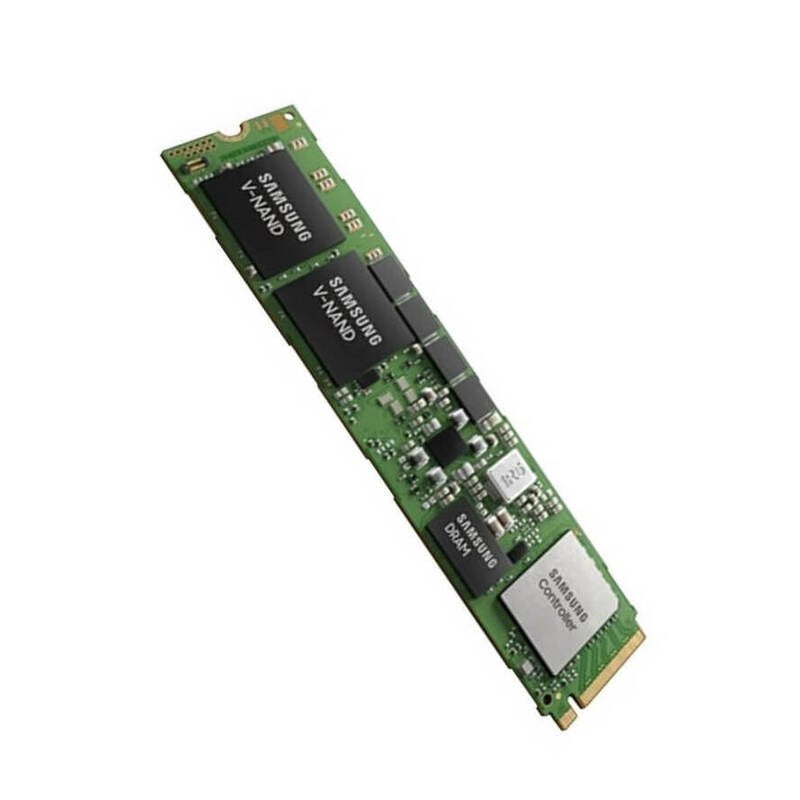

Product Overview of the Samsung MZ1LB1T9HALS-00007 1.92TB SSD
The MZ1LB1T9HALS-00007 PM983 Series is a high-performance solid-state drive (SSD) made by Samsung. It is a 1.92 Terabytes (TB) Triple Level Cell (TLC) Peripheral Component Interconnect Express (PCI-E) 3.0 x4 Non-Volatile Memory Express (NVMe) M.2 22110 Internal Solid State Drive. In this article, we will delve deeper into each of these terms to understand what makes the PM983 Series such a powerful and reliable SSD.
1.92 Terabytes (TB) of Storage Capacity
The PM983 Series comes with an impressive PCIe of 1.92 Terabytes (TB) of storage capacity. This is more than enough for most users who require large storage space for their files, applications, and games. With 1.92 TB of storage capacity, you can store up to 500,000 high-resolution photos or 3840 minutes of 4K video footage.
Triple Level Cell (TLC) Technology
The PM983 Series uses Triple Level Cell (TLC) technology for storing data. This means that each cell can store three bits of data instead of one, which allows for more storage capacity in a smaller space. This technology is widely used in SSDs and is known for its reliability and endurance.
Peripheral Component Interconnect Express Interface
The PM983 Series uses the Peripheral Component Interconnect Express (PCI-E) 3.0 x4 interface, which is a high-speed interface that allows for faster data transfer rates than the traditional Serial ATA (SATA) interface. This means that data can be read and written to the SSD much faster, resulting in faster boot times, application loading times, and overall system performance.
Non-Volatile Memory Express (NVMe) Protocol
The PM983 Series uses the Non-Volatile Memory Express (NVMe) protocol, which is designed specifically for SSDs. This protocol allows for faster communication between the SSD and the computer’s processor, resulting in faster data transfer rates and lower latency. The NVMe protocol is widely used in high-end SSDs and is known for its low latency and high performance.
M.2 22110 Form Factor
The PM983 Series comes in the M.2 22110 form factor, which is a small form factor designed specifically for SSDs. This form factor allows for easy installation in modern motherboards and laptops and also allows for more storage capacity in a smaller space. The M.2 22110 form factor is widely used in high-end SSDs and is known for its reliability and performance.
Internal Solid State Drive
- The PM983 Series is an internal solid-state drive, which means that it is designed to be installed inside a computer or laptop. This is different from external SSDs, which are designed to be connected to a computer via a USB or Thunderbolt interface. Internal SSDs are known for their higher performance and reliability, as they are not subject to the limitations of external interfaces.
- The PM983 Series is made by Samsung, which is one of the leading manufacturers of SSDs in the world. Samsung is known for its high-quality products, and the PM983 Series is no exception. Samsung uses the latest technology and manufacturing processes to ensure that their SSDs are reliable, durable, and high-performing.
Details Information about this Samsung MZ1LB1T9HALS-00007
- Manufacturer: Samsung
- Part Number or SKU# MZ1LB1T9HALS-00007
- Product Type: PCI-E 1.92TB
- Product Name: Solid State Drive (SSD)
Technical Information for 1.92TB Solid State Drive
- Form Factor: M.2
- Product Series: PM983
- Product Status: Mass Production
- NAND Flash Memory Type: TLC VNAND
Performance of NVMe SSD
- Sequential Read: 3000 MBPS
- Sequential Write: 1400 MBPS
- Random Read: 480K IOPS
- Random Write: 42K IOPS
Environmental Specifications
- Temperature, Case (Tc6)
- Operating 0 ~ 70 °C
- Non-operating -40 ~ 85 °C
- Humidity (non-condensing) 5 ~ 95%
- Linear Shock (0.5ms duration with 1/2 sine wave)
- Non-operating 1,500 G
- Vibration
- Non-operating (10 ~ 2,000 Hz, Sinusoidal) 20 G
Features
- PCI Express Gen3
- Single port X4 lanes
- Compliant with PCI Express CEM Specification Rev. 3.0
- Compliant with PCI Express Base Specification Rev. 3.1
- Compliant with NVM Express Specification Rev. 1.2a
- Enhanced Power-Loss Data Protection
- End-to-End Data Protection
- Support SSD Enhanced S.M.A.R.T. Feature Set
- Hardware-based AES-XTS 256-bit Encryption Engine
- Static and Dynamic Wear Leveling
- RoHS / Halogen-Free Compliant
- TCG Opal Compliant
Power Requirements
- Supply Voltage / Tolerance 12V±8%
- Active7 (max. RMS) 10.6 W
- Idle (typ.) 4.0 W
Finally, the MZ1LB1T9HALS-00007 PM983 Series is a high-performance and reliable internal solid-state drive that is designed for professionals who require a lot of storage space and fast data transfer rates. The drive uses Triple Level Cell (TLC) technology, which allows for more data to be stored in a single memory cell. It also uses Non-Volatile Memory Express (NVMe) technology, which provides faster data transfer rates compared to traditional Solid State Drives (SSDs). The drive is compatible with a wide range of devices and operating systems,
