Description
Triple Level Cell (TLC) NAND Flash Technology

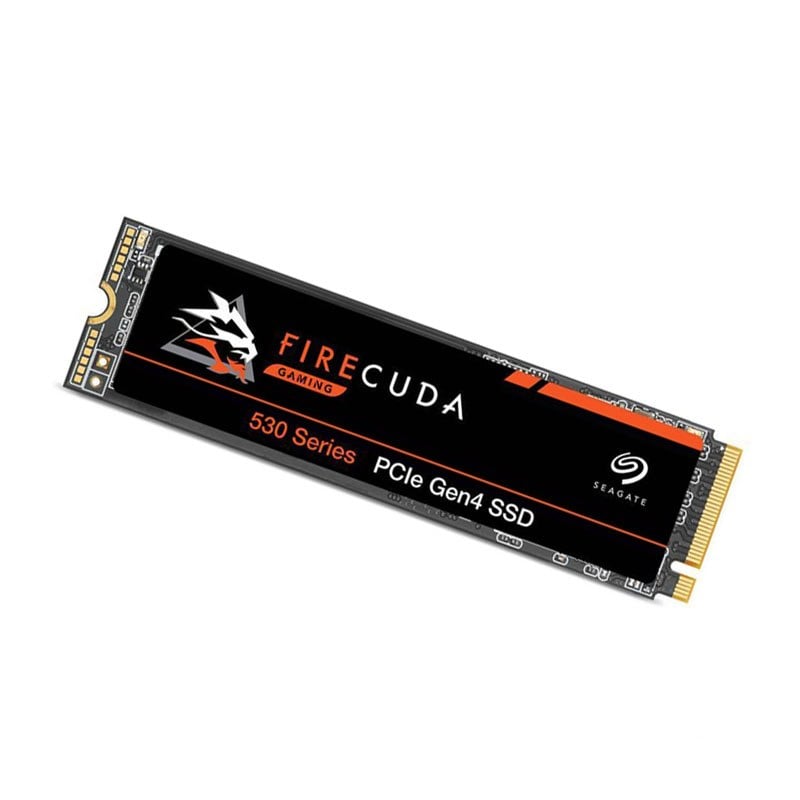

Triple Level Cell (TLC) NAND flash is a type of non-volatile memory that is commonly used in solid state drives (SSDs), including the Seagate ZP4000GM3A013 Fire Cuda 4TB 530 TLC PCI-E 4.0 x4 NVMe M.2 SSD.
In a NAND flash memory cell, the amount of electrical charge stored represents the stored data. In SLC (Single Level Cell) flash, each cell can store one bit of data. In MLC (Multi-Level Cell) flash, each cell can store two bits of data. TLC flash takes this a step further by allowing each cell to store three bits of data.
The advantage of TLC flash is that it provides a higher storage density compared to SLC or MLC flash, which means that more data can be stored in the same physical space. This results in lower production costs, as well as smaller and lighter solid state drives.
However, TLC flash has some disadvantages compared to SLC and MLC flash. TLC flash has a shorter lifespan compared to SLC and MLC flash, as the cells are subjected to more wear and tear due to the additional data stored in each cell. TLC flash also has slower read and write speeds compared to SLC and MLC flash, and is more susceptible to data loss in the event of a power failure.
Peripheral Component Interconnect Express (PCI-E) 4.0 x4 interface
Peripheral Component Interconnect Express (PCI-E) is a high-speed interface standard used to connect various components in a computer system, including solid state drives (SSDs). PCI-E 4.0 is the fourth generation of the PCI-E interface, and offers faster data transfer speeds compared to previous generations.
The “x4” notation in “PCI-E 4.0 x4” refers to the number of data lanes in the interface. Each data lane provides a separate communication channel between the SSD and the host system, allowing for faster data transfer. A PCI-E 4.0 x4 interface provides four data lanes, which can deliver up to 16 GB/s of bandwidth in each direction.
The Seagate ZP4000GM3A013 Fire Cuda 4TB 530 TLC PCI-E 4.0 x4 NVMe M.2 SSD utilizes the PCI-E 4.0 x4 interface to achieve high-speed data transfer and improved system performance. The combination of the NVMe protocol and PCI-E 4.0 x4 interface provides low latency and high-speed data transfer, making it ideal for demanding applications such as gaming and video editing.
Non-Volatile Memory Express (NVMe) Protocol
Non-Volatile Memory Express (NVMe) is a protocol designed specifically for solid state drives (SSDs) that use non-volatile memory, such as NAND flash. NVMe was designed to overcome the limitations of previous storage protocols, such as SATA and SCSI, and to take advantage of the high-speed and low-latency capabilities of modern SSDs.
NVMe provides several key benefits over previous storage protocols, including:
- Parallelism: NVMe allows multiple commands to be processed in parallel, which results in improved performance compared to previous storage protocols.
- Low latency: NVMe provides low latency, which is the time it takes for the SSD to respond to a request from the host system. This results in improved system performance and a more responsive user experience.
- High-speed data transfer: NVMe provides high-speed data transfer, which allows data to be transferred to and from the SSD at high speeds.
- Scalability: NVMe allows for the addition of more queues and commands, which makes it possible to scale the performance of the SSD to meet the demands of demanding applications.
The Seagate ZP4000GM3A013 Fire Cuda 4TB 530 TLC PCI-E 4.0 x4 NVMe M.2 SSD utilizes the NVMe protocol to take advantage of its high-speed, low-latency, and scalable performance capabilities. The combination of the NVMe protocol and the PCI-E 4.0 x4 interface provides fast and efficient data transfer, making the SSD ideal for demanding applications such as gaming and video editing.
M.2 Form Factor
The M.2 form factor is a small, compact and flexible physical interface for solid state drives (SSDs). It was designed to replace the mSATA interface and to meet the growing demand for small and thin devices, such as ultrabooks and tablets.
An M.2 SSD is typically smaller in size compared to a standard 2.5-inch SATA SSD, making it ideal for devices with limited space. The M.2 form factor also provides a faster data transfer rate, making it an attractive option for demanding applications such as gaming and video editing.
The M.2 form factor provides several key benefits, including:
- Small size: An M.2 SSD is typically smaller in size compared to a standard 2.5-inch SATA SSD, making it ideal for devices with limited space.
- High-speed data transfer: The M.2 form factor provides a faster data transfer rate compared to a standard 2.5-inch SATA SSD, making it an attractive option for demanding applications.
- Flexibility: The M.2 form factor provides a flexible physical interface, allowing it to be used in a variety of devices and applications.
- Improved thermal performance: The M.2 form factor provides improved thermal performance compared to a standard 2.5-inch SATA SSD, as it allows for better heat dissipation.
The Seagate ZP4000GM3A013 Fire Cuda 4TB 530 TLC PCI-E 4.0 x4 NVMe M.2 SSD utilizes the M.2 form factor, taking advantage of its small size, high-speed data transfer, and improved thermal performance. This makes it an ideal option for demanding applications, such as gaming and video editing, and for devices with limited space.
In conclusion, the M.2 form factor is a small, compact, and flexible physical interface for solid state drives (SSDs). The Seagate ZP4000GM3A013 Fire Cuda 4TB 530 TLC PCI-E 4.0 x4 NVMe M.2 SSD utilizes the M.2 form factor, providing fast and efficient data transfer, improved thermal performance, and a flexible physical interface, making it an ideal option for demanding applications and devices with limited space.
General Information about this Seagate ZP4000GM3A013
- Manufacturer: Seagate
- Part Number or SKU# ZP4000GM3A013
- Storage Capacity: 4TB
- Device Type: Solid State Drive
Technical Information of Seagate 4TB SSD
- Storage Capacity: 4TB
- Interface: PCI-E NVME
- Form Factor: M.2 2280
- Nand Flash Type: 3d TLC
- Random 4kb Read: 1000000iops
- Endurance (TBW): 5222.40 TB
- Random 4kb Write: 1000000iops
- Maximum Read Transfer Rate: 7300 MBPS
- Maximum Write Transfer Rate: 6900 MBPS
Dimension and Weight for Seagate NVMe Solid State Drive
- Height: 0.6 inch
- Width: 2.7 inch
- Depth: 3.9 inch
- Weight: 0.35 lbs
