Description

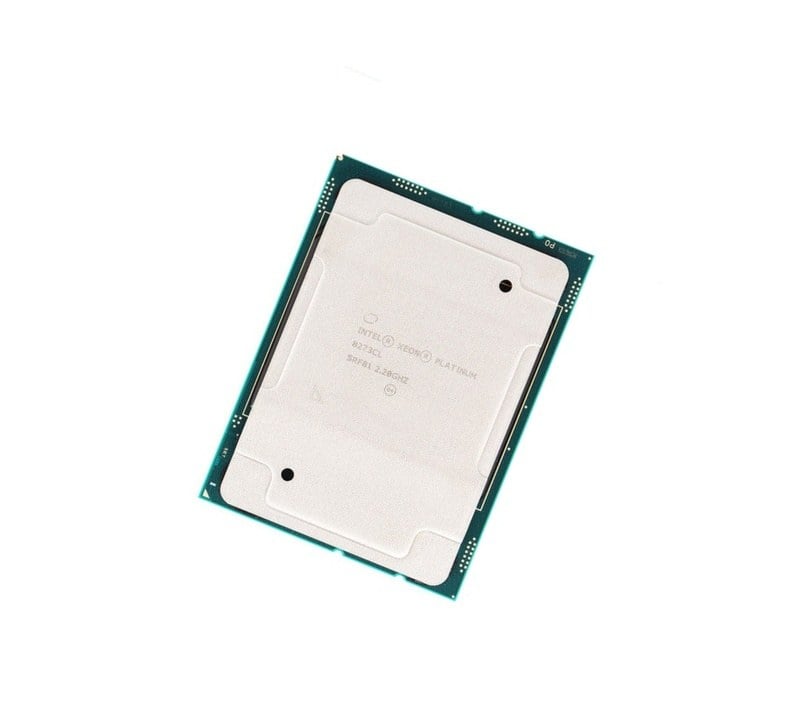

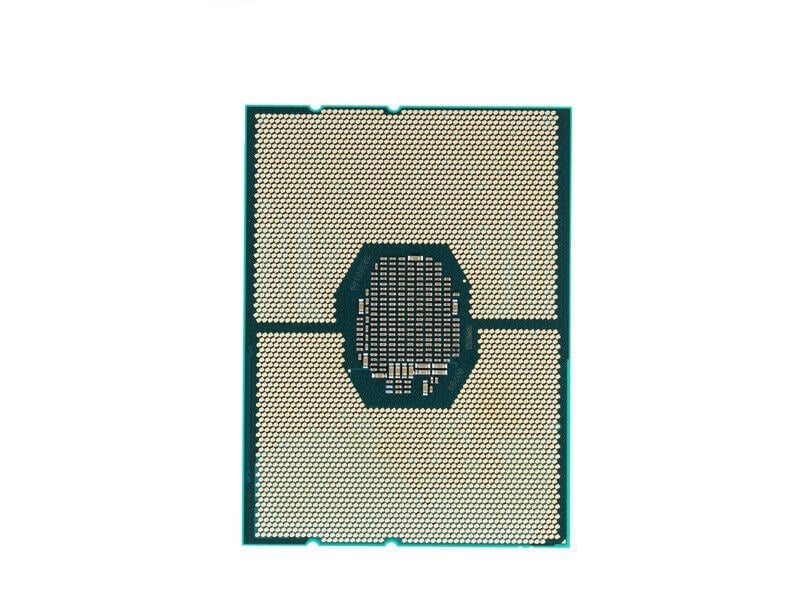

Introduction to Intel Xeon Platinum 8273CL Processor
The Intel Xeon Platinum 8273CL Processor is a high-performance server processor designed for use in data centers and other enterprise applications. It was released in Q1 2020 and is part of the Cascade Lake-SP family of processors. The Platinum 8273CL features 28 cores and 56 threads, making it well-suited for demanding workloads such as artificial intelligence, big data analytics, and scientific computing.
The processor is based on Intel’s 14nm++ process technology and supports a wide range of advanced features, including Intel Hyper-Threading Technology, Intel Turbo Boost Technology, and Intel AVX-512 instruction set. It also features Intel Deep Learning Boost, a set of instructions designed to accelerate AI workloads.
The Platinum 8273CL supports up to 4.5TB of DDR4 memory and features a total of 38.5MB of Intel Smart Cache. It also supports up to 48 lanes of PCIe 3.0 or 24 lanes of PCIe 3.0 and four Intel Optane DC persistent memory modules.
In terms of power consumption, the Platinum 8273CL has a thermal design power (TDP) of 205 watts and supports Intel Speed Select Technology, which allows for dynamic power allocation and improved power efficiency.
Specifications of SRF81 Intel Xeon Platinum 8273CL Processor
Here are the specifications of the SRF81 Intel Xeon Platinum 8273CL Processor:
- Product Collection: Intel Xeon Platinum Processor
- Code Name: Cascade Lake-SP
- Socket Type: LGA 3647
- Number of Cores: 28
- Number of Threads: 56
- Base Clock Speed: 2.2 GHz
- Max Turbo Boost Speed: 3.7 GHz
- Thermal Design Power (TDP): 205 W
- Memory Types: DDR4-2933
- Maximum Memory Size: 4.5 TB
- Memory Channels: 6
- Intel Smart Cache: 38.5 MB
- PCIe Lanes: Up to 48 lanes of PCIe 3.0 or 24 lanes of PCIe 3.0 and 4 Intel Optane DC persistent memory modules
- Instruction Set Extensions: Intel AVX-512, Intel Deep Learning Boost (Intel DL Boost)
- Security Features: Intel AES New Instructions (Intel AES-NI), Intel Trusted Execution Technology (Intel TXT), Intel Run Sure Technology, and more
- Virtualization Features: Intel Virtualization Technology (Intel VT), Intel VT-x with Extended Page Tables (EPT), Intel VT-x with Page Address Extension (PAE), and more
- Manufacturing Process: 14nm++
- Supported Operating Systems: Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and more.
These specifications make the SRF81 Intel Xeon Platinum 8273CL Processor an ideal choice for demanding workloads that require high processing power and memory capacity, such as artificial intelligence, big data analytics, scientific computing, and enterprise applications.
Architecture and Design of Intel Xeon Platinum 8273CL Processor
The Intel Xeon Platinum 8273CL Processor is based on the Cascade Lake-SP microarchitecture, which is designed for high-performance server platforms. Here’s an overview of the architecture and design of the Platinum 8273CL:
- Cores and Threads: The Platinum 8273CL features 28 cores and 56 threads, thanks to Intel’s Hyper-Threading Technology, which allows for two threads per physical core. This makes it well-suited for multi-threaded workloads that require high processing power.
- Cache Hierarchy: The Platinum 8273CL has a total of 38.5 MB of Intel Smart Cache, which is divided into three levels of cache. The first level cache is split into 28 KB of instruction cache and 32 KB of data cache per core. The second level cache is 1 MB per core, and the third level cache is 39 MB shared across all cores.
- Memory: The Platinum 8273CL supports up to 6 memory channels and DDR4 memory speeds up to 2933 MHz. It can support a maximum memory capacity of 4.5 TB, making it ideal for workloads that require large memory capacities.
- Instruction Set Extensions: The Platinum 8273CL supports the Intel AVX-512 instruction set, which allows for high-performance vector processing of data. It also features Intel Deep Learning Boost, a set of instructions designed to accelerate AI workloads.
- Power and Thermal Management: The Platinum 8273CL has a thermal design power (TDP) of 205 watts and supports Intel Speed Select Technology, which allows for dynamic power allocation and improved power efficiency. It also features Intel Run Sure Technology, which provides hardware-based reliability features to help reduce the risk of errors and downtime.
- Security Features: The Platinum 8273CL features a range of security features, including Intel AES New Instructions (Intel AES-NI), which provides hardware-accelerated encryption and decryption of data. It also features Intel Trusted Execution Technology (Intel TXT), which helps protect the platform against attacks and malware.
Key Features about this Intel SRF81
- Manufacturer: Intel
- Part Number or SKU # SRF81
- Device Type: Server Processor
- Processor Core : 28-core
Technical Information of 28 Core Processor
- Clock Speed : 2.20ghz
- Max Turbo Frequency : 3.7ghz
- No Of Upi Links: 3
Memory Information for Server Processor
- Layer3 (L3) Cache : 38.5MB
