Description

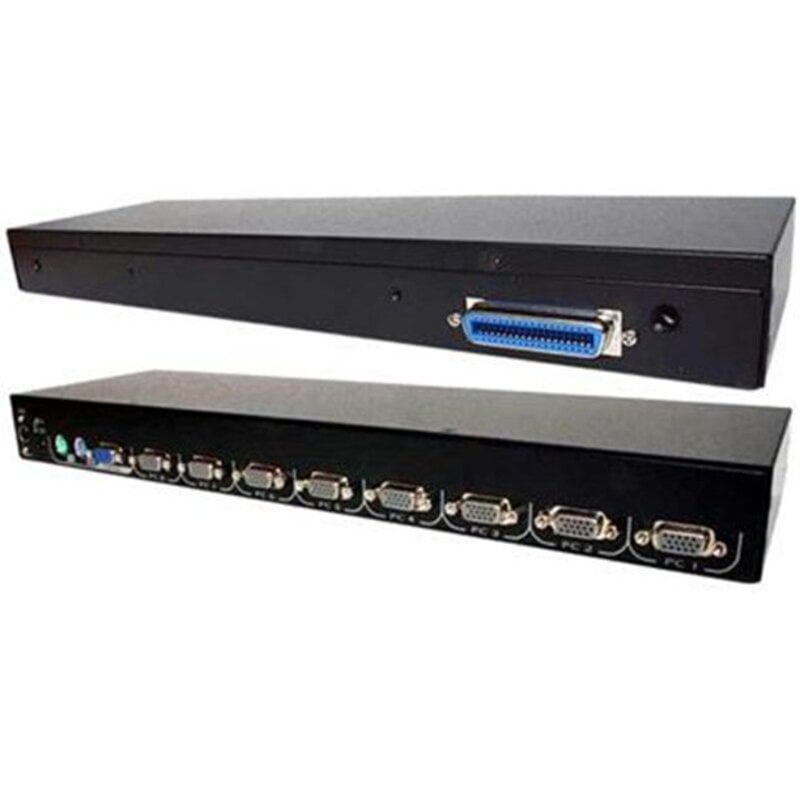

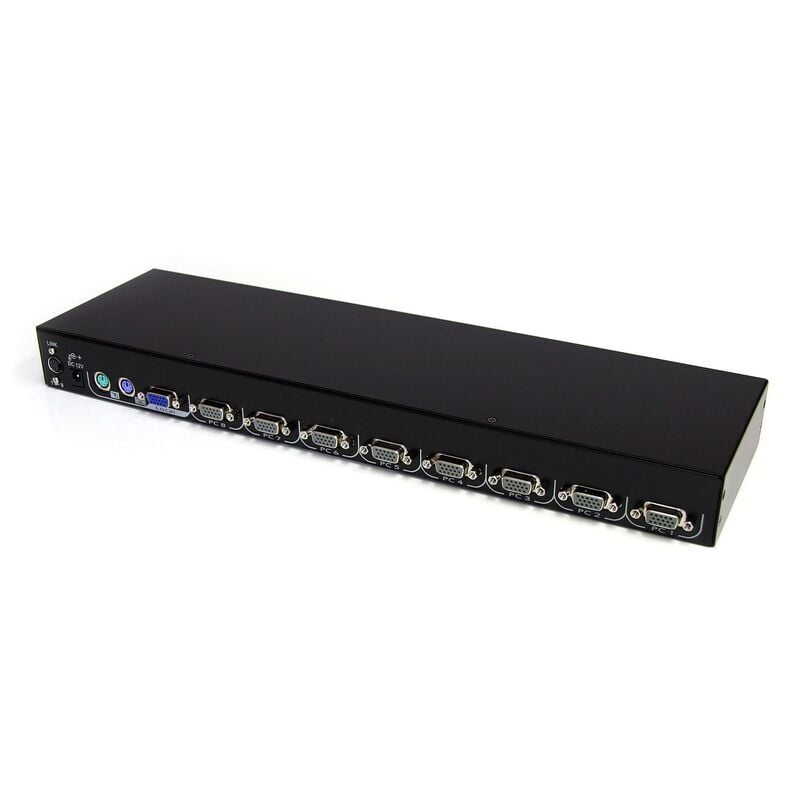

Product Overview of the Startech CAB831HD
The CAB831HD Startech 8-port KVM Module is a powerful device designed for rack-mount LCD consoles with an additional console. It offers advanced features that enable users to control multiple computers from a single console, providing a convenient and cost-effective way to manage their IT infrastructure.
In this article, we will take a closer look at the CAB831HD Startech 8-port KVM Module and explore its features, benefits, and specifications.
Features and Benefits
The CAB831HD Startech 8-port KVM Module offers a range of features and benefits that make it a valuable addition to any IT infrastructure. These include:
- Easy installation and setup: The CAB831HD is easy to install and set up, with no additional software or drivers required. Simply plug in the cables and start using it right away.
- Multiple control options: The device can be controlled using front-panel pushbuttons, OSD (On-Screen Display), or hotkeys, giving users the flexibility to choose the method that works best for them.
- Support for multiple platforms: The CAB831HD supports a wide range of platforms, including Windows, Mac, Linux, and Sun, making it a versatile solution for any IT environment.
- High-resolution video: The device supports resolutions of up to 1920×1440 at 60Hz, ensuring crisp and clear video quality.
- Auto-scan feature: The auto-scan feature enables users to automatically cycle through connected computers at a set interval, making it easy to monitor multiple systems at once.
- Password protection: The device includes password protection to ensure that only authorized users can access connected computers.
Specifications
The CAB831HD Startech 8-port KVM Module has the following specifications:
- Number of ports: 8
- Console connectors: VGA, USB, and PS/2
- Computer connectors: VGA, USB, and PS/2
- Video resolution: up to 1920×1440 at 60Hz
- Auto-scan interval: 1-255 seconds
- Dimensions: 432 x 130 x 44mm (17 x 5.1 x 1.7in)
- Weight: 2.7kg (6lbs)
Overall, the CAB831HD Startech 8-port KVM Module is a powerful and versatile solution for managing multiple computers from a single console. With its easy installation, support for multiple platforms, and advanced features such as auto-scan and password protection, it is an ideal solution for data centers, server rooms, and other IT environments.
General Information about the Startech CAB831HD
- Manufacturer Name: Startech
- Model Number or SKU# CAB831HD
- Type: Networking
- SwitchType: KVM Switch
Port
- PS/2 Port : Yes
- VGA : Yes
- Number of PS/2 Ports : 2
- Number of VGA Ports : 1
Dimension and Weight
- Height : 1.7 Inch
- Width : 17.2 Inch
- Depth : 7.1 Inch
- Weight (Approximate) : 4.85 Lbs
