Description
Product Overview

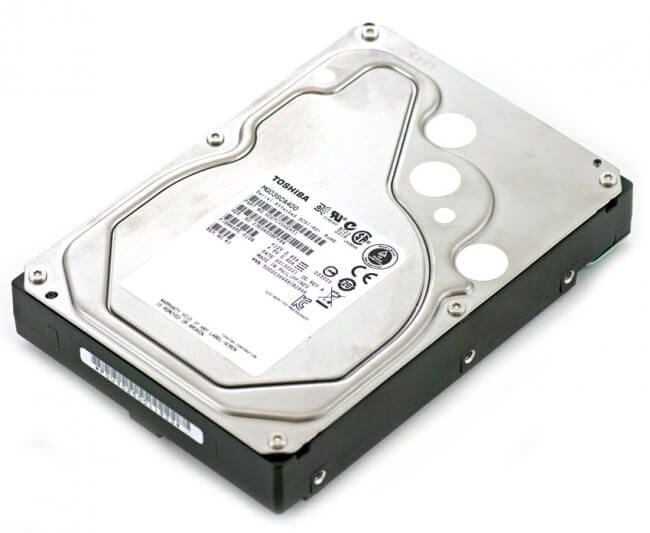

The Toshiba HDEBJ13GEA51 is a 600GB 10K RPM SAS-12GBPS hard drive that provides a high-performance storage solution for servers and other enterprise-level applications. In this article, we will explain the features and specifications of this hard drive in detail.
Capacity and Speed
The HDEBJ13GEA51 has a capacity of 600GB, which is suitable for storing a significant amount of data. This capacity is ideal for applications such as virtualization, databases, and other data-intensive workloads. The hard drive operates at a speed of 10,000 RPM, which makes it one of the fastest SAS hard drives available on the market. The high rotational speed means that data can be accessed and transferred at a faster rate, resulting in faster application response times and improved overall system performance.
Interface and Compatibility
The HDEBJ13GEA51 uses the SAS-12GBPS interface, which provides a high-speed data transfer rate of up to 12Gbps. The SAS-12GBPS interface is backward compatible with SAS-6GBPS and SAS-3GBPS interfaces, making it compatible with older SAS interfaces. This hard drive is designed to work with enterprise-level servers and storage arrays that support the SAS interface.
Form Factor and Dimensions
The HDEBJ13GEA51 has a standard 2.5-inch form factor, which is commonly used in enterprise-level servers and storage arrays. This small form factor allows for higher storage density and reduces the physical space required for storage. The hard drive measures 2.8 inches in width, 3.9 inches in depth, and 0.6 inches in height. These dimensions are consistent with the standard 2.5-inch form factor, making it easy to install and replace in most server and storage array configurations.
Performance and Reliability
The HDEBJ13GEA51 hard drive is designed for high performance and reliability. With a 10K RPM rotational speed, the hard drive can access and transfer data quickly, reducing application response times and improving overall system performance. The hard drive also features a 128MB cache buffer, which helps to improve read and write speeds. Additionally, the HDEBJ13GEA51 uses advanced data protection features such as error correction code (ECC), which helps to prevent data corruption and improve reliability.
Hot Swapping Capability
The HDEBJ13GEA51 features hot-swapping capability, which means that it can be replaced or removed without shutting down the server or storage array. Hot-swapping capability allows for easy maintenance and replacement of hard drives without disrupting the operation of the system. This feature is particularly useful in high-availability environments where downtime must be kept to a minimum.
Power Consumption
The HDEBJ13GEA51 has a low power consumption of 4.5 watts during idle and 8.5 watts during active operation. This low power consumption helps to reduce energy costs and heat generation, which can improve the overall reliability and longevity of the hard drive. Additionally, the hard drive complies with the RoHS directive, which restricts the use of hazardous materials in electronic components, making it an environmentally friendly choice.
In summary, the Toshiba HDEBJ13GEA51 is a high-performance and reliable hard drive that is designed for enterprise-level servers and storage arrays. With a capacity of 600GB and a rotational speed of 10K RPM, this hard drive provides a high-speed storage solution for data-intensive applications. The SAS-12GBPS interface provides a high-speed data transfer rate, and the advanced data protection features help to improve reliability. Additionally, the hot-swapping capability and low power consumption make it a convenient and environmentally friendly choice for enterprise-level storage solutions.
General Information
- Manufacturer : Toshiba
- Manufacturer Model : HDEBJ13GEA51
- Product Type : Hard Disk Drive
Applications
- Tier-1 Mission-Critical Servers And Storage Arrays
- Hybrid And Mainstream Storage Arrays
- Mid-Range Volume Servers
- Blade And Rack Mount Servers
- Edge Servers And Content Delivery Infrastructure
Key Features
- Storage Capacity : 600 GB
- Enclosure : Internal
- Interface : SAS-12GBPS
- Drive Dimensions : 2.5 INCH
- Environmental Compliance : ROHS Compatible
DRIVE PERFORMANCE
- Data Transfer Speed (SUSTAINED) : 226 MBPS
- Average Latency : 2.86 MS
- Rotational Speed : 10000 RPM
- Buffer : 128 MB
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
