Description

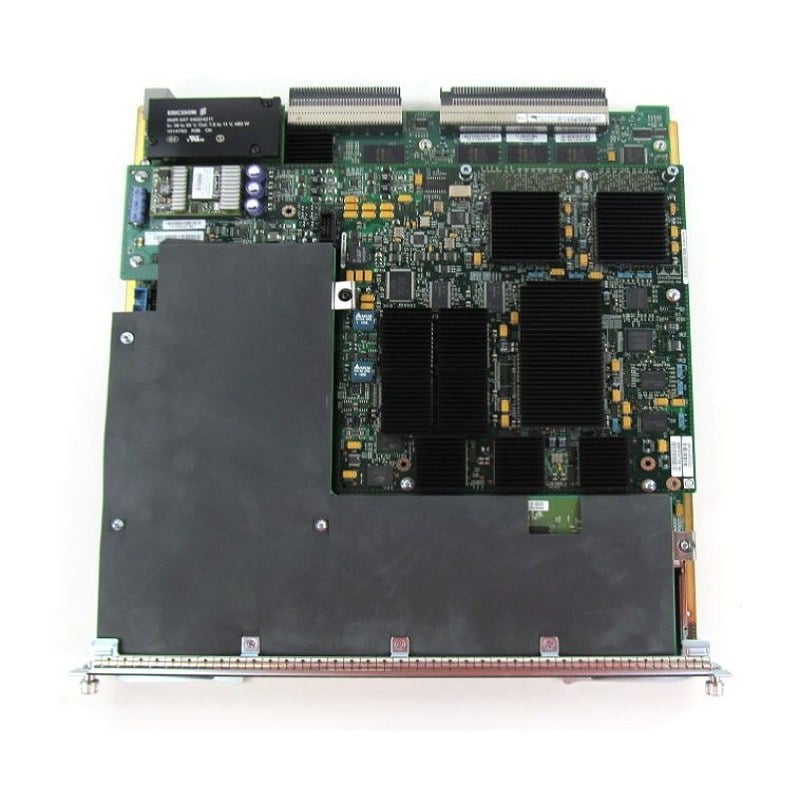

Product Overview of the Cisco WS-X6708-10G-3C Module
The Cisco WS-X6708-10G-3C is a high-performance Ethernet module designed for use in Cisco Catalyst 6500 series switches. This module provides 10 Gigabit Ethernet connectivity, making it a crucial component for network environments that require high-speed data transfer. Ethernet refers to the technology that allows computers and other devices to communicate with each other within a network. The term “10 Gigabit” indicates the speed at which data can be transmitted through this module, providing ultra-fast connectivity suitable for demanding applications.
Key Features of Cisco WS-X6708-10G-3C
In this section, we will discuss the key features of the Cisco WS-X6708-10G-3C module, highlighting what sets it apart from other networking modules.
- 10 Gigabit Ethernet Ports: The Cisco WS-X6708-10G-3C module is equipped with 8 ports, each capable of providing 10 Gigabit Ethernet connectivity. This high-speed data transfer capability is essential for modern networks that handle large volumes of data, such as data centers and enterprises with extensive bandwidth requirements.
- Compatibility with Catalyst 6500 Series: This module is specifically designed to be used with Cisco Catalyst 6500 series switches. It offers seamless integration with these switches, ensuring that your network operates efficiently and effectively.
- X2 Free Expansion Module Support: The module supports 8 X2 free expansion modules, allowing you to expand your network’s capabilities as needed. This flexibility is vital for scaling your network infrastructure to meet evolving requirements.
- Advanced Network Management: Cisco is known for its robust network management capabilities, and the Cisco WS-X6708-10G-3C module is no exception. It offers advanced features for monitoring, configuring, and optimizing your network, ensuring that it operates at its best.
Benefits of Using Cisco WS-X6708-10G-3C Module
Now that we’ve explored the features of this module, let’s discuss the benefits it brings to your network infrastructure.
- High Data Transfer Speeds: One of the most significant advantages of the Cisco WS-X6708-10G-3C module is its ability to deliver high-speed data transfer. With 10 Gigabit Ethernet ports, it can handle large data loads efficiently. This is crucial for applications that require real-time data processing and fast file transfers.
- Scalability: The module’s support for 8 X2 free expansion modules allows you to scale your network according to your needs. Whether you need to add more ports or adapt to changing network demands, this module provides the flexibility to do so without overhauling your infrastructure.
- Reliability: Cisco is renowned for producing reliable networking equipment, and the WS-X6708-10G-3C module is no exception. You can count on this module to operate consistently, reducing downtime and ensuring the smooth functioning of your network.
- Efficient Network Management: Cisco’s network management tools and features make it easier to configure and maintain your network. With the WS-X6708-10G-3C module, you can access a range of network management options to optimize your network’s performance.
Use Cases for Cisco WS-X6708-10G-3C
Let’s explore some scenarios where the Cisco WS-X6708-10G-3C module can be particularly beneficial.
- Data Centers: Data centers often deal with vast amounts of data that require high-speed connectivity. The Cisco WS-X6708-10G-3C module is an excellent choice for data centers, ensuring efficient data transfer and network reliability.
- Large Enterprises: Large enterprises with extensive network requirements can benefit from the scalability and reliability of this module. It can handle the data traffic of a large organization without a hitch.
- Educational Institutions: Universities and schools may have complex network infrastructures. This module can provide the speed and scalability required to support various applications and services across the campus.
- Cloud Service Providers: Cloud service providers need to ensure their network infrastructure is both fast and reliable. The Cisco WS-X6708-10G-3C module can help meet the demands of cloud services and data storage.
More information
- The WS-X6708-10G-3C is a Cisco Catalyst 6500 8-Ports 10 Gigabit Ethernet Module. It is an expansion module for the Cisco Catalyst 6500 series switches, which are high-performance, modular switches that provide scalable, secure, and reliable connectivity for enterprise networks and service provider environments.
- This module is specifically designed to provide 10 Gigabit Ethernet (10 GbE) connectivity for the Catalyst 6500 series switches. It has 8 ports that support 10 GbE, which can be used to connect to other 10 GbE devices, such as servers, storage systems, and other network devices. It allows organizations to aggregate multiple 10 GbE connections to increase throughput and support high-bandwidth applications.
- The module also includes advanced features such as Quality of Service (QoS), VLAN, and Link Aggregation Control Protocol (LACP) to manage and optimize network traffic, providing flexibility, adaptability, and application performance. It also supports Fiber Channel over Ethernet (FCoE) and Fibre Channel Fabric Services (FCFS) for storage networking in data center environments
- The part is a powerful module that can provide high-performance, reliable 10 GbE connectivity to the Cisco Catalyst 6500 series switches, which makes it a great option for organizations looking to upgrade their networks to support high-bandwidth applications and services.
High Performance
- The WS-X6708-10G-3C Cisco Catalyst 6500 10 Gigabit Ethernet Module is a high-performance expansion module that is designed to provide 10 Gigabit Ethernet (10 GbE) connectivity for the Cisco Catalyst 6500 series switches. The module has 8 ports that support 10 GbE and offers several advanced features to help optimize network traffic and support high-bandwidth applications.
- In terms of performance, This product has a forwarding rate of up to 130 million packets per second (Mbps) and a switching capacity of up to 1.28 Tbps. This allows it to handle large amounts of network traffic and support high-bandwidth applications such as video streaming, data backups, and virtualization.
- The module also includes advanced features such as Quality of Service (QoS), VLAN, and Link Aggregation Control Protocol (LACP) to manage and optimize network traffic, providing flexibility, adaptability, and application performance. The QoS features allow you to prioritize different types of network traffic, ensuring that time-sensitive applications receive the necessary bandwidth.
- It also supports Fiber Channel over Ethernet (FCoE) and Fibre Channel Fabric Services (FCFS) for storage networking in data center environments, which can reduce costs and increase scalability by converging storage and data networking traffic over a single 10 GbE network.
Reliability of Ethernet Module
- The WS-X6708-10G-3C Cisco Catalyst 6500 8-Ports Ethernet Module is a reliable expansion module for the Cisco Catalyst 6500 series switches. It is designed to provide 10 Gigabit Ethernet (10 GbE) connectivity for the Catalyst 6500 series switches, which are known for their reliability in enterprise networks and service provider environments.
- The module has several features that contribute to its reliability, such as redundant power supplies, built-in power supply monitoring and control, and support for advanced routing protocols. The module has 8 ports that support 10 GbE and provide throughput of up to 720 Gbps and support for Link Aggregation Control Protocol (LACP) which allows to grouping of multiple physical links to form a single logical link. This increases the availability of the module by providing redundancy in case one of the physical links fails.
- The module also includes advanced features such as a Multilayer Switch Feature Card (MSFC) and Application Control Engine (ACE) to increase the functionality of the switch and to provide Layer 2-4 switching which allows to distribution the traffic among the ports ensuring a reliable and scalable network.
General Information about this Cisco WS-X6708-10G-3C
- Manufacturer: Cisco
- Model Number or SKU# WS-X6708-10G-3C
- Product Name: Catalyst 6500 8-Port 10 Gigabit Ethernet Module
- Product Type: Expansion Module
Networking for Expansion Module
- Connectivity Technology: Wired
- Cabling Type: Ethernet 10GBase-X
- Data Link Protocol: 10 Gigabit Ethernet
- Data Transfer Rate: 10 Gbps
- Remote Management Protocol: RMON, SMON
- Status Indicators: Port status, status
Expansions And Connectivity of Ethernet Module
- Expansion Slots: 8 (total) / 8 (free) x X2
- Compatible Slots: 1 x expansion slot
Miscellaneous
- Compliant Standards: FCC Class A certified, CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, CSA C22.2 No. 60950-00, ICES-003 Class A, FCC CFR47 Part 15, FCC CFR21 Part 1040, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, IEC 60825-1
Processor / Memory
- RAM: 1 GB
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 104 °F
- Humidity Range Operating: 10 – 90%
Compatibility
- Cisco 7606, 7606 Security Bundle, 7606-S, 7609, 7609 Security Bundle, 7609-S, 7613, 7613 Security Bundle Cisco Catalyst 6503-E, 6503-E chassis with Supervisor Engine 32, 6503-E Firewall Security System Bundle, 6503-E WSLM Bundle, 6504-E, 6504-E Application Control Engine (ACE) 20 Bundle, 6504-E chassis with Supervisor Engine 32, 6504-E with Supervisor Engine 720-3B, 6504-E with WiSM Bundle, 6506, 6506 chassis, 6506 Firewall Security System, 6506 Firewall Security System with Enhanced Chassis, 6506-E, 6506-E chassis with Supervisor Engine 32, 6506-E Firewall Security System Bundle, 6506-E IDSM-2 Bundle with 2-Gbps Performance, 6506-E IPSec VPN SPA Security System Bundle, 6506-E VPN System, 6506-E WLSM Bundle, 6509, 6509 chassis, 6509 Firewall and IDS Security System, 6509 Firewall and VPN Security System, 6509 Firewall Security System, 6509 Wiring Closet Bundle, 6509-E, 6509-E 10Gig Firewall Security System Bundle, 6509-E Application Control Engine (ACE) 20 Bundle, 6509-E chassis with Supervisor Engine 32, 6509-E Firewall Security System Bundle, 6509-E Firewall Security System Bundle with Supervisor Engine 720-3BXL, 6509-E IPSec VPN SPA Security System, 6509-E with WiSM Bundle, 6509-NEB, 6509-NEB-A, 6509-V-E, 6513, 6513 10Gig Firewall Security System Bundle, 6513 chassis, 6513 Chassis with Supervisor Engine 32, 6513 Firewall Security System, 6513 Firewall Security System Bundle, 6513 IPSec VPN SPA Security System
In summary, the Cisco Catalyst 6500 8-Ports Ethernet Module is a reliable expansion module for the Cisco Catalyst 6500 series switches, known for its reliability in enterprise networks and service provider environments. With its high throughput, redundant power supplies, advanced routing protocols, advanced security features, and advanced switching and control engine, it is a reliable option for organizations looking to upgrade their networks to support high-bandwidth applications and services.
