Description
Interface and Connectivity

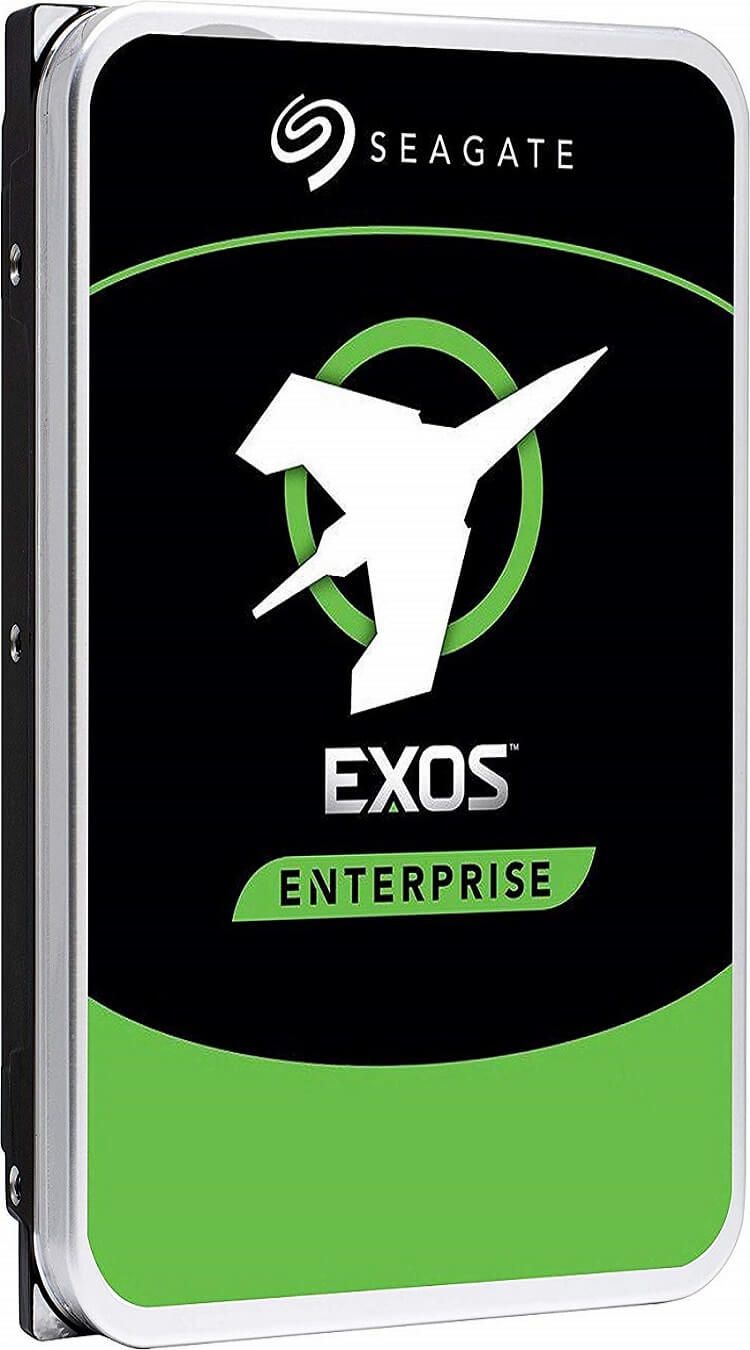

The 1HT27Z-150 Seagate V.4 6TB 7.2K RPM SAS-6GBPS 128MB 3.5inch Hard Drive features a SAS (Serial Attached SCSI) interface with a 6 Gbps data transfer rate. SAS is a high-speed and reliable data storage interface that is designed for use in enterprise-level server and storage systems. It uses a point-to-point connection, which allows for faster data transfer and improved error detection and correction.
This hard drive also supports dual-port connectivity, which allows for redundancy and improved data availability. With dual-port connectivity, the hard drive can be connected to two separate host bus adapters (HBAs) providing a fail-safe mechanism in case one port fails. This feature helps to ensure that the data stored on the hard drive is always available, even in the event of a failure.
Additionally, it is backward compatible with SAS 3 Gbps interfaces, making it compatible with legacy systems. The dual-port connectivity and backward compatibility ensure that this hard drive can be seamlessly integrated into existing storage systems, providing improved data availability and system uptime.
Capacity and Performance
The 1HT27Z-150 Seagate V.4 6TB 7.2K RPM SAS-6GBPS 128MB 3.5inch Hard Drive offers a large storage capacity of 6TB and high performance capabilities. The high storage capacity of 6TB allows for large amounts of data to be stored on the drive, making it suitable for use in enterprise-level storage systems and data centers.
The drive’s high performance is achieved through its 7.2K RPM rotational speed, which allows for faster data access and improved overall performance. The 7200 RPM spindle speed is faster than traditional 5400 RPM hard drive, which means that the drive’s read/write head can access data stored on the disk platters more quickly, resulting in faster data transfer rates and improved overall performance.
Additionally, the drive features a 128MB cache, which can help to improve read and write speeds and performance. The large cache size can help to increase the drive’s overall performance by allowing frequently accessed data to be stored in the cache for faster access.
All these features combine to make the Seagate V.4 6TB 7.2K RPM SAS-6GBPS 128MB 3.5inch Hard Drive a high-performance storage solution that is suitable for use in enterprise-level server and storage systems, especially for those that require large storage capacity and high performance.
Data Transfer Rate
The 1HT27Z-150 Seagate V.4 6TB 7.2K RPM SAS-6GBPS 128MB 3.5inch Hard Drive features a SAS interface with a 6 Gbps data transfer rate. SAS (Serial Attached SCSI) is a high-speed and reliable data storage interface designed for enterprise-level server and storage systems. SAS 6 Gbps interface allows for a data transfer rate of up to 600 MB/s, which is sufficient for most enterprise-level storage needs.
This data transfer rate is the maximum theoretical speed at which data can be transferred between the hard drive and the host system. In practice, the actual data transfer rate will depend on various factors such as the workload, the number of hard drives in the system, and the system’s configuration. However, the 6 Gbps SAS interface provides a fast and reliable data transfer rate that is suitable for most enterprise-level storage applications.
Additionally, the high-performance capabilities of the drive are boosted by its 7200 RPM spindle speed and large 128MB cache, which can help to improve read and write speeds and performance. All these features make the Seagate V.4 6TB 7.2K RPM SAS-6GBPS 128MB 3.5inch Hard Drive suitable for use in enterprise-level server and storage systems that require high storage capacity and high performance.
General Information:
- Manufacturer : Seagate
- Manufacturer Model : 1HT27Z-150
- Product Line : ENTERPRISE CAPACITY V.4
BEST-FIT APPLICATIONS :
- Hyperscale Applications
- High-Capacity Raid Storage
- Mainstream Enterprise External Storage Arrays (SAN, NAS, DAS)
- Cloud Data Centers—Replicated Bulk Data Storage
- Enterprise Backup And Restore—D2d, Virtual Tape
- Centralized Surveillance
Key Features:
- Storage Capacity : 6 TB
- Enclosure : Internal
- Interface : SAS-6GBPS
- Bytes Per Sector : 512
- Drive Dimensions : 3.5 inch
- Mtbf : 1.4 Million Hours
- Humidity Sensor : Yes
- Super Parity : Yes
- Low Halogen : Yes
- Powerchoice™ Technology : Yes
- Hot-Plug Support : Yes
DRIVE PERFORMANCE :
- Max. Sustained Transfer Rate OD : 226 MBPS
- Average Latency : 4.16 Ms
- Interface Ports : Dual
- Rotation Vibration @ 1500 Hz (Rad/S²): 12.5
- Buffer : 128 MB
- Rotational Speed : 7.2K RPM
Physical:
- Dimensions (L X W X H) : 147.0 X 101.85 X 26.1 MM
- Weight : 780 G
