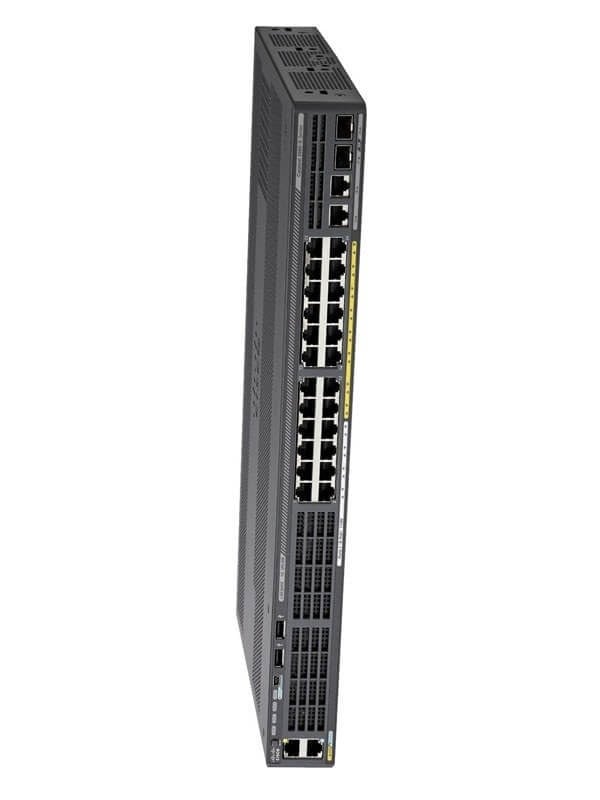

More Information for the Cisco WS-C2960X-24PSQ-L 24 Port Ethernet Switch
In the ever-evolving landscape of networking solutions, the Cisco WS-C2960X-24PSQ-L Catalyst 2960X-24PSQ-L Managed Ethernet Switch stands out as a powerful and versatile option for businesses seeking robust connectivity. In this detailed review, we will explore the key features, specifications, and benefits of this switch, providing insights into its capabilities and how it can enhance network efficiency.
Key Features
- Managed Functionality: The Cisco WS-C2960X-24PSQ-L is a managed Ethernet switch, offering advanced control and configuration options. This allows network administrators to tailor the switch’s behavior to specific requirements, optimizing performance and security.
- 24 Ports Ethernet Switch: With 24 Ethernet ports, this switch provides ample connectivity for various devices within a network. Whether it’s computers, printers, or other networking equipment, the extensive port availability ensures seamless integration.
- Power over Ethernet Plus (PoE+): One of the standout features of this switch is its support for Power over Ethernet Plus (PoE+). This capability allows the switch to deliver both data and electrical power over the Ethernet cables, eliminating the need for separate power sources for compatible devices such as IP cameras and VoIP phones.
- Gigabit SFP Ports: The inclusion of 2 Gigabit SFP (Small Form-factor plugable) ports enhance the switch’s flexibility by enabling high-speed fiber-optic connections. This is particularly advantageous for scenarios where extended distances or increased bandwidth are required.
- Ethernet Ports: In addition to the Gigabit SFP ports, the switch is equipped with 2 standard Ethernet ports, offering additional connectivity options for devices that do not support fiber-optic connections.
Technical Specifications
- Performance: The Cisco WS-C2960X-24PSQ-L is designed to deliver reliable and high-performance networking. With its advanced hardware and capabilities, the switch ensures low-latency data transfer, making it suitable for demanding applications and scenarios.
- Layer 2 Switching: Operating at Layer 2 of the OSI model, this switch provides efficient and intelligent handling of network traffic. It supports features such as VLANs (Virtual Local Area Networks), enhancing network segmentation and management.
- PoE+ Budget: The PoE+ support in this switch comes with a dedicated power budget. Understanding this budget is crucial for users planning to connect PoE-enabled devices. The switch’s power budget should align with the power requirements of the connected devices to ensure optimal performance.
- Security Features: Cisco is renowned for its commitment to network security, and the WS-C2960X-24PSQ-L is no exception. The switch includes features such as port security, DHCP (Dynamic Host Configuration Protocol) snooping, and MAC (Media Access Control) address filtering, bolstering the overall network security posture.
Benefits
- Improved Network Efficiency: The managed functionality of this switch empowers administrators to fine-tune network configurations, optimizing performance and resource utilization. This leads to improved overall network efficiency and responsiveness.
- Cost Savings with PoE+: The PoE+ support eliminates the need for separate power sources for connected devices, reducing cable clutter and simplifying infrastructure. This not only saves costs but also streamlines maintenance and troubleshooting processes.
- Versatile Connectivity Options: With a combination of standard Ethernet ports and Gigabit SFP ports, the switch caters to a diverse range of networking requirements. Whether it’s traditional wired connections or high-speed fiber-optic links, the WS-C2960X-24PSQ-L offers versatile connectivity options.
- Enhanced Security Measures: The inclusion of security features such as port security and MAC address filtering adds an extra layer of protection to the network. Businesses can have confidence in the security of their data and communications when using this Cisco switch.
- Scalability and Flexibility: As business needs evolve, having a scalable and flexible network infrastructure becomes crucial. The Cisco WS-C2960X-24PSQ-L is designed with scalability in mind, accommodating the growth of the network without compromising performance.
Use Cases and Applications
- Enterprise Networks: The Cisco WS-C2960X-24PSQ-L is well-suited for enterprise networks where a combination of high-performance data transfer, Power over Ethernet, and secure communication is essential. Its 24 managed Ethernet ports can accommodate a variety of devices, making it suitable for office environments.
- IP Surveillance Systems: With 8 PoE+ ports, this switch is an excellent choice for IP surveillance systems. It simplifies the deployment of IP cameras by providing both power and data over a single cable, reducing installation complexity and cost.
- VoIP (Voice over IP) Networks: The switch’s PoE+ capabilities make it ideal for VoIP networks. It can power VoIP phones, eliminating the need for separate power sources and contributing to a more streamlined and organized network setup.
- Network Expansion: The 2 additional Ethernet ports and 2 Gigabit SFP ports allow for easy network expansion. Whether connecting more devices directly or extending the network to remote locations using fiber optics, the Cisco WS-C2960X-24PSQ-L provides the necessary flexibility.
Exceptional Reliability of 24 Port Managed Switch
The WS-C2960X-24PSQ-L Cisco Catalyst switch is designed for reliability and uptime in enterprise networks. Some of the features that contribute to the reliability of this switch include:
- Redundant Power Supplies: The switch is equipped with dual power supplies, which allows for redundancy in case one power supply fails.
- StackWise Plus: This feature allows for multiple switches to be stacked together for increased reliability and ease of management.
- Link Aggregation Control Protocol (LACP) and Hot Standby Router Protocol (HSRP): These protocols provide redundancy and failover capabilities for network connections.
- Quality of Service (QoS): QoS allows you to prioritize network traffic, ensuring that critical applications receive the bandwidth they need to function properly.
- Advanced Security Features: The switch includes advanced security features such as access control lists (ACLs) and port security, which can help protect your network from potential threats.
- Cisco IOS Software: The switch runs Cisco IOS software, which is known for its reliability and stability.
- Extended Temperature Range: The switch is designed to operate in temperatures between -40 and 65 degrees Celsius, making it suitable for use in a wide range of environments.
- Warranty: The switch comes with a limited lifetime warranty, which can provide added peace of mind for businesses.
Power and Innovation of Ethernet Switch
The WS-C2960X-24PSQ-L Cisco Catalyst switch is a powerful and innovative Ethernet-managed switch that provides a range of features and capabilities to support your network needs.
- High-Performance Switching: The switch provides a high-performance switching capacity of up to 95 Mpps and a forwarding rate of up to 128 Gbps, allowing you to handle large amounts of network traffic with ease.
- PoE Support: The switch supports Power over Ethernet (PoE), which allows you to power devices such as IP phones, wireless access points, and cameras over the network cable.
- Easy Management: The switch is easy to manage and configure, with a web-based graphical user interface (GUI) and Cisco’s Command-Line Interface (CLI) that allows you to manage the switch from anywhere on the network.
- Advanced Security: The switch provides advanced security features, such as access control lists (ACLs), port security, and DHCP snooping, to help protect your network from unauthorized access and potential threats.
- Quality of Service (QoS): The switch supports QoS, which allows you to prioritize network traffic to ensure that critical applications receive the bandwidth they need to function properly.
- Energy Efficient Ethernet (EEE): The switch supports Energy Efficient Ethernet (EEE), which reduces power consumption during periods of low network activity, helping to lower energy costs and reduce your environmental impact.
- Layer 2 and Layer 3 features: The switch supports both Layer 2 and Layer 3 features, providing flexibility and scalability for your network.
Resiliency and High Availability
The WS-C2960X-24PSQ-L Cisco Catalyst Layer3 switch is designed to provide resiliency and high availability in your network. Here are some of the key features that contribute to this:
- Redundant Power Supplies – The switch is equipped with dual power supplies to ensure that power is always available, even if one power supply fails.
- StackWise Plus – This technology allows multiple switches to be connected and managed as a single unit, providing increased resiliency and high availability.
- StackPower – This feature allows the switch to share power between multiple switches in a stack, providing a redundant power supply for each switch.
- Link Aggregation Control Protocol (LACP) – LACP allows multiple physical links to be bundled together to form a single logical link, providing increased bandwidth and redundancy.
- Rapid Spanning Tree Protocol (RSTP) – RSTP provides fast recovery in the event of a link failure, ensuring that network traffic is quickly rerouted to ensure that the network remains operational.
- Hot Swappable Components – The switch’s components are designed to be easily replaced without interrupting network operations, ensuring that repairs and upgrades can be done quickly and with minimal disruption to the network.
- Quality of Service (QoS) – QoS allows you to prioritize network traffic, ensuring that critical applications receive the bandwidth they need to function properly.
- High-Availability Routing Protocols – The switch supports routing protocols such as OSPF and EIGRP that provide fast convergence and redundancy in the event of a link or device failure.
- Virtual Router Redundancy Protocol (VRRP) – VRRP allows for the creation of virtual routers, providing redundancy for the default gateway on the network.
General Information about this Cisco WS-C2960X-24PSQ-L
- Manufacturer: Cisco
- Part Number or SKU# WS-C2960X-24PSQ-L
- Product Type: Ethernet Switch
- Product Name: Catalyst 2960X-24PSQ-L Managed 24 Ports Ethernet Switch
Technical Specifications Simplified: A Guide to Understanding Your Switch
- Device Type: Managed Switch with 24 Ports
- Enclosure Type: Desktop, Rack-mountable (1u)
- Subtype: Gigabit Ethernet
- Ports: 24 x 10/100/1000 + 2 x SFP + 2 x 10/100/1000
- PoE (Power Over Ethernet): PoE+
- PoE Budget: 92 W
Performance
- Switching Capacity: 216 Gbps
- Forwarding Performance: 71.4 Mpps
- Capacity: Virtual Interfaces (VLANs): 1023
Additional Features
- Jumbo Frame Support: 9216
- Routing Protocols: Static IPv4 Routing, Static IPv6 Routing
- Remote Management Protocols: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
- Authentication Methods: Secure Shell (SSH), RADIUS, TACACS+
Switch Features
- Layer 2 Switching, Auto-negotiation, ARP Support, CISCO Fast EtherChannel, VLAN Support
- Auto-uplink (Auto MDI/MDI-X), IGMP Snooping, Broadcast Storm Control, IPv6 Support
- Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) Support
- Multiple Spanning Tree Protocol (MSTP) Support, DHCP Snooping, Dynamic Trunking Protocol (DTP) Support
- Port Aggregation Protocol (PAGP) Support, Trivial File Transfer Protocol (TFTP) Support
- Access Control List (ACL) Support, Quality of Service (QoS), RADIUS Support, MLD Snooping
- Dynamic ARP Inspection (DAI), Uni-directional Link Detection (UDLD), Shaped Round Robin (SRR)
- Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Per-VLAN Rapid Spanning Tree (PVRST)
- Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS)
Compliance Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1d, IEEE 802.1q, IEEE 802.3ab, IEEE 802.1p
- IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s
- IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor
- 1 x ARM – 600 MHz
Memory
- RAM: 512 MB
- Flash Memory: 128 MB
Status Indicators
- Port Status, Link Activity, Port Transmission Speed, Port Duplex Mode, System
Expansion/Connectivity
- Interfaces:
- 8 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – PoE+
- 16 x 10Base-T/100Base-TX/1000Base-T – RJ-45
- 2 x 10Base-T/100Base-TX/1000Base-T – RJ-45 – Uplink
- 2 x SFP (Mini-GBIC)
- 1 x USB – Type A
- 1 x USB – Type B
- 1 x Console – RJ-45
- 1 x Management (LAN) – RJ-45
Power
- Power Device: Internal Power Supply
- Voltage Required: AC 120/230 V (50/60 Hz)
In general, the Cisco WS-C2960X-24PSQ-L Catalyst 2960X-24PSQ-L Managed Ethernet Switch emerges as a robust solution for businesses seeking reliable and feature-rich networking equipment. With its managed functionality, PoE+ support, versatile connectivity options, and enhanced security measures, this switch caters to the diverse needs of modern networking environments. Whether it’s optimizing network efficiency, reducing costs, or ensuring a secure network environment, the Cisco WS-C2960X-24PSQ-L stands as a commendable choice for businesses looking to elevate their connectivity infrastructure.
