Understanding of the Cisco 24 Ports Manageable Switch
In the world of networking, Cisco has been a pioneering force, consistently delivering innovative solutions to meet the evolving needs of businesses. One of their notable offerings is the Cisco WS-C3850-24XS-E Catalyst switch. In this detailed exploration, we will delve into the key features and specifications of this 24-port switch, shedding light on its capabilities and how it can enhance network performance.

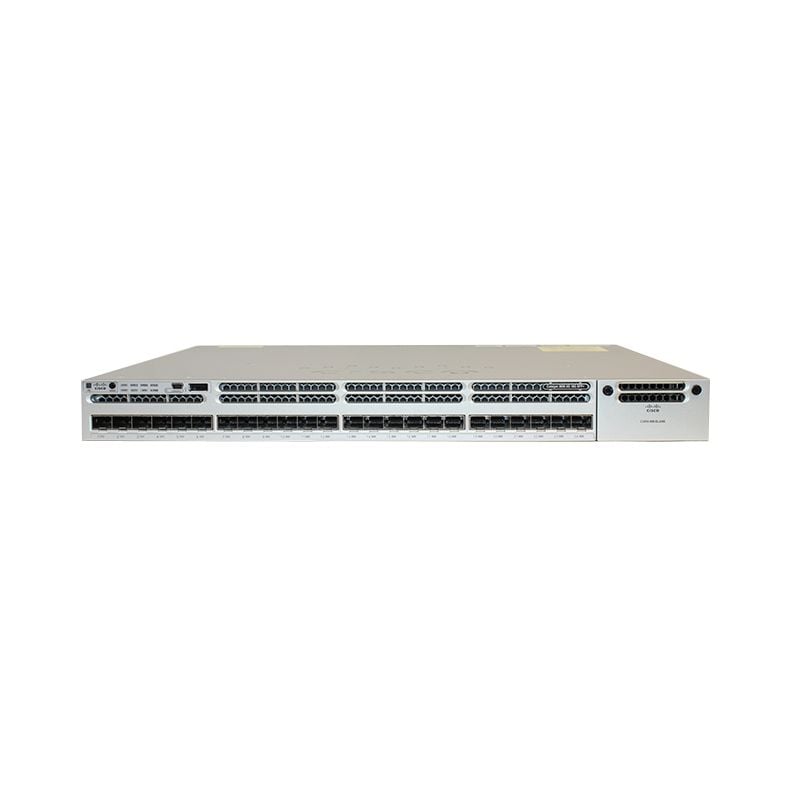

Overview of Cisco WS-C3850-24XS-E Catalyst Layer 3 Switch Module
The Cisco WS-C3850-24XS-E is a powerful Catalyst switch designed to provide high-performance networking solutions. Let’s break down its specifications to understand the essence of this switch.
Expansion Slots
The switch boasts 24 expansion slots, specifically designed for 10GBase-X. These slots serve as the backbone for high-speed data transfer, ensuring that the network can handle the demands of modern applications and services.
Optical Fiber Connectivity
All 24 expansion slots are equipped to support optical fiber connections. This is crucial for long-distance data transmission with minimal signal loss, making the switch suitable for diverse networking environments.
10 Gigabit Ethernet
The Cisco WS-C3850-24XS-E offers a total of 24 SFP+ (Small Form-Factor Pluggable) slots, enabling 10 Gigabit Ethernet connectivity. This level of speed is essential for data-intensive tasks, such as large file transfers, video streaming, and handling multiple concurrent users.
Form Factor
With a 1U height, this switch is designed to be compact and efficient. The 1U form factor makes it rack-mountable, saving valuable space in data center environments and providing an organized, scalable solution.
Layer 3 Manageability
One of the standout features of this Catalyst switch is its Layer 3 manageability. This means that the switch operates not only at the data link layer (Layer 2) but also at the network layer (Layer 3). This capability allows for more advanced routing and network segmentation, enhancing overall network control and efficiency.
Rack-Mountable Design
The switch is built with practicality in mind, featuring a rack-mountable design. This makes it easy to integrate into existing network setups, especially in data centers where space optimization is crucial.
Key Benefits of Cisco WS-C3850-24XS-E Gigabit Ethernet Switch
Now that we’ve explored the technical specifications, let’s delve into the key benefits that the Cisco WS-C3850-24XS-E Catalyst switch brings to the table.
High-Speed Connectivity
The 24 expansion slots supporting 10GBase-X and the 24 SFP+ slots ensure that the switch delivers high-speed connectivity. This is pivotal in today’s digital landscape where the demand for faster data transfer is ever-growing.
Optimal for Data-Intensive Applications
Businesses dealing with data-intensive applications, such as video conferencing, virtualization, and big data analytics, will find the Cisco WS-C3850-24XS-E well-suited to handle these workloads. The 10 Gigabit Ethernet capability ensures smooth and reliable performance even in the face of demanding tasks.
Scalability
The rack-mountable 1U design and the multitude of expansion slots make this Catalyst switch highly scalable. Whether your network needs evolve due to business growth or technological advancements, the Cisco WS-C3850-24XS-E can adapt to these changes seamlessly.
Efficient Network Management
The Layer 3 manageability of this switch empowers network administrators with advanced control and routing capabilities. This is particularly advantageous in larger networks where efficient traffic management and segmentation are essential for optimal performance.
Space Optimization
The rack-mountable design of the switch is a practical solution for organizations where space is a premium. By consolidating network equipment into a standard rack, businesses can maximize the use of their physical infrastructure.
Use Cases of 24 Ports Catalyst switch
Understanding the practical applications of the Cisco WS-C3850-24XS-E is crucial in assessing its relevance to different industries and scenarios. Let’s explore some use cases where this Catalyst switch can shine.
Data Centers
In the dynamic environment of data centers, where large volumes of data are processed and transferred regularly, the high-speed connectivity and Layer 3 manageability of the Cisco WS-C3850-24XS-E make it an ideal choice. Its rack-mountable design facilitates easy integration into existing setups, contributing to the overall efficiency of data center operations.
Enterprise Networks
Enterprises dealing with a myriad of applications and services, from cloud-based solutions to video conferencing, require a robust networking infrastructure. The Cisco WS-C3850-24XS-E, with its scalability and high-speed connectivity, addresses the connectivity needs of modern enterprises. Its Layer 3 manageability is an added advantage for efficient network segmentation.
Telecommunication Providers
Telecommunication providers handling vast amounts of data traffic can benefit from the Cisco WS-C3850-24XS-E. The switch’s ability to support optical fiber connections ensures reliable data transmission over longer distances, a critical requirement for telecommunication networks.
Educational Institutions
In educational institutions where network reliability and speed are crucial for delivering online courses, conducting research, and managing administrative tasks, the Cisco WS-C3850-24XS-E can play a pivotal role. Its scalability accommodates the evolving needs of educational networks, and the Layer 3 manageability enhances control over network traffic.
Advanced Networking Capabilities
The WS-C3850-24XS-E Cisco Catalyst 3850 24 Ports 10 Gigabit Ethernet Switch has a range of advanced networking capabilities, including:
- StackWise-480 technology for high-speed stackable architecture
- 10 Gigabit Ethernet (10 GbE) uplinks for high-bandwidth connectivity
- Advanced Quality of Service (QoS) for prioritizing network traffic
- Cisco StackPower for power sharing and redundancy
- Cisco TrustSec for secure access and identity management
- Cisco EnergyWise for monitoring and managing power consumption
- Support for Cisco DNA Center, a network management platform that allows for easy deployment, monitoring and troubleshooting of the network.
Powerful Connectivity Solutions
The WS-C3850-24XS-E Cisco Catalyst 3850 24 Ports 10 Gigabit Ethernet Switch provides powerful connectivity solutions through its 24 x 10 Gigabit Ethernet (10 GbE) SFP+ ports and 4 x 40 Gigabit Ethernet (40 GbE) QSFP+ ports. These ports allow for high-bandwidth connectivity between devices, allowing for fast and reliable data transfer. Additionally, the switch supports stackable architecture through its StackWise-480 technology, which allows for the stacking of up to 9 switches for a total of 384 10 GbE ports and 72 40 GbE ports. This provides a scalable and flexible solution for growing networks. The switch also supports Cisco StackPower technology which enables power sharing and redundancy across stacked switches.
General Information for the Cisco WS-C3850-24XS-E 24 Port Switch
- Manufacturer: Cisco
- Model Number or SKU# WS-C3850-24XS-E
- Product Line: Catalyst
- Product Series: 3850
- Product Type: Layer 3 Switch
Interfaces/Ports of Manageable Switch
- Total Number of Ports: 24
- Modular: No
- Stack Port: Yes
- Port/Expansion Slot Details: 24 x 10 Gigabit Ethernet Expansion Slot
Performance for Layer 3 Switch Module
- Media Type: Supported Optical Fiber
- Connectivity Technology: Wired/Wireless
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10GBase-X
I/O Expansions of 24 Ports Switch
- Total Expansion Slots: 24
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 24
Capacity
- IPv4 Routes: 24,000
- Net Flow Entries: 48,000
- Virtual Interfaces (VLANs): 4,000
- Switched Virtual Interfaces (SVIs): 1,000
- Switching Capacity: 640 Gbps
- Stacking Bandwidth: 480 Gbps
Network & Communication
- Layer Supported: 3
Management & Protocols
- Manageable: Yes
- Remote Management Protocol: CLI, RMON 1, RMON 2, SNMP 1, SNMP 2c, SNMP 3, SSH, TFTP, Telnet
- Routing Protocol: OSPF, BGP-4, IS-IS, RIP-1, RIP-2, EIGRP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MLDv2, MLD
Power Description
- Power Source: Power Supply
- Power Device: Internal Power Supply
- Installed Qty: 1
- Max Supported Qty: 2
- Power Redundancy: Optional
- Power Redundancy Scheme: 1+1 (with optional power supply)
- Power Provided: 715 Watts
- Voltage Required: AC 120/230 V (50 – 60 Hz)
Miscellaneous
- Catalyst WS-C3850-24XS Layer 3 Switch
- Power Supply – Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS-5
- Compliant Standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.3z
In summary, the Cisco WS-C3850-24XS-E Catalyst switch stands out as a versatile and high-performance networking solution. Its combination of high-speed connectivity, optical fiber support, 10 Gigabit Ethernet capabilities, Layer 3 manageability, and rack-mountable design makes it suitable for a wide range of applications.
Whether deployed in data centers, enterprise networks, telecommunication infrastructures, or educational institutions, this Catalyst switch addresses the demands of modern networking environments. As businesses continue to embrace digital transformation, having a reliable and scalable networking infrastructure becomes increasingly vital, and the Cisco WS-C3850-24XS-E proves to be a valuable asset in this endeavor.
