Product Overview for the Cisco WS-X45-SUP9-E Catalyst 4500E Series Module
The Cisco WS-X45-SUP9-E Catalyst 4500E Series module is an essential component in Cisco’s Catalyst 4500E Series switches. This module is designed to provide high-performance and reliable connectivity for various networking needs. With its 40 SFP (Small Form-factor Pluggable) ports and 80 C-SFP (Compact Small Form-factor Pluggable) ports, it offers flexibility and scalability for different network environments.
In this comprehensive overview, we will delve into the features, specifications, benefits, and applications of the Cisco WS-X45-SUP9-E module, exploring its capabilities and how it can enhance network infrastructure.
Features of Cisco WS-X45-SUP9-E Module
- Port Density: The Cisco WS-X45-SUP9-E module boasts a total of 120 ports, including 40 SFP ports and 80 C-SFP ports. This high port density enables efficient utilization of network resources and accommodates a large number of connections in a compact form factor.
- 1000Base-X Interface: The module supports the 1000Base-X standard, which allows for Gigabit Ethernet connectivity over fiber-optic cables. This interface ensures high-speed data transmission and low latency, making it suitable for demanding networking applications.
- Flexibility and Scalability: With a mix of SFP and C-SFP ports, the Cisco WS-X45-SUP9-E module offers flexibility in network design and deployment. Administrators can choose between different types of SFP modules, including copper or fiber-optic, to meet specific connectivity requirements. Additionally, the module supports hot-swappable SFP modules, allowing for easy upgrades and scalability as network demands grow.
- High Performance: Equipped with advanced hardware and software features, the Cisco WS-X45-SUP9-E module delivers high performance and reliability. It leverages Cisco’s proprietary technology to optimize packet forwarding, minimize latency, and ensure seamless operation even under heavy network loads.
- Advanced Security: Security is a top priority in modern networks, and the Cisco WS-X45-SUP9-E module includes features to enhance network security. It supports features such as Access Control Lists (ACLs), VLANs (Virtual Local Area Networks), and Port Security, which help prevent unauthorized access and mitigate security threats.
- Redundancy and Resilience: To ensure uninterrupted operation, the Cisco WS-X45-SUP9-E module supports redundant power supplies and hot-swappable components. This redundancy enhances network resilience and minimizes downtime in the event of hardware failures or maintenance activities.
Specifications of Cisco WS-X45-SUP9-E Module
- Compatibility: The Cisco WS-X45-SUP9-E module is compatible with Cisco Catalyst 4500E Series switches, providing a seamless integration path for existing deployments or new installations.
- Form Factor: The module is designed to fit into the chassis of Catalyst 4500E Series switches, offering a compact and space-efficient solution for network infrastructure.
- Supported Standards: The Cisco WS-X45-SUP9-E module complies with industry standards for networking protocols and technologies, ensuring interoperability with other devices and systems.
- Maximum Throughput: The module is capable of forwarding data at high speeds, with a maximum throughput of up to 48 Gbps per slot. This throughput enables efficient data transfer and supports bandwidth-intensive applications.
- Power Consumption: The module is designed to operate efficiently while minimizing power consumption. It features low-power components and energy-saving features to reduce overall power consumption and operating costs.
- Management and Monitoring: The Cisco WS-X45-SUP9-E module supports comprehensive management and monitoring capabilities, allowing administrators to monitor network performance, configure settings, and troubleshoot issues remotely.
Benefits of Cisco WS-X45-SUP9-E Module
- Enhanced Connectivity: With its high port density and support for Gigabit Ethernet connectivity, the Cisco WS-X45-SUP9-E module provides enhanced connectivity for network devices, servers, and storage systems.
- Improved Performance: The module’s advanced hardware and software features optimize network performance, ensuring low latency, high throughput, and reliable data transmission.
- Scalability: Administrators can easily scale their network infrastructure by adding additional modules or upgrading existing ones, thanks to the module’s flexibility and compatibility with Catalyst 4500E Series switches.
- Enhanced Security: The module includes robust security features to protect against unauthorized access, data breaches, and other security threats, helping organizations maintain compliance with industry regulations and standards.
- Simplified Management: With comprehensive management and monitoring capabilities, the Cisco WS-X45-SUP9-E module simplifies network administration and troubleshooting tasks, reducing operational overhead and improving efficiency.
Applications of Cisco WS-X45-SUP9-E Module
- Enterprise Networks: The Cisco WS-X45-SUP9-E module is well-suited for large enterprise networks that require high-performance connectivity, scalability, and security. It can handle a wide range of applications, including data center networking, campus networking, and branch office connectivity.
- Service Provider Networks: Service providers can leverage the Cisco WS-X45-SUP9-E module to deliver reliable and high-speed connectivity services to their customers. Whether deploying broadband access networks, metro Ethernet services, or MPLS (Multiprotocol Label Switching) networks, the module offers the performance and features needed to meet service-level agreements (SLAs) and customer demands.
- Data Centers: In data center environments, where performance and reliability are critical, the Cisco WS-X45-SUP9-E module can play a key role in connecting servers, storage arrays, and network appliances. Its high port density and support for Gigabit Ethernet make it ideal for handling the demanding workloads and traffic patterns found in modern data centers.
- Unified Communications: Organizations deploying unified communications (UC) solutions can benefit from the Cisco WS-X45-SUP9-E module’s support for high-speed connectivity and Quality of Service (QoS) features. It can help ensure smooth and seamless communication experiences for voice, video, and data applications across the network.
Performance and Capacity

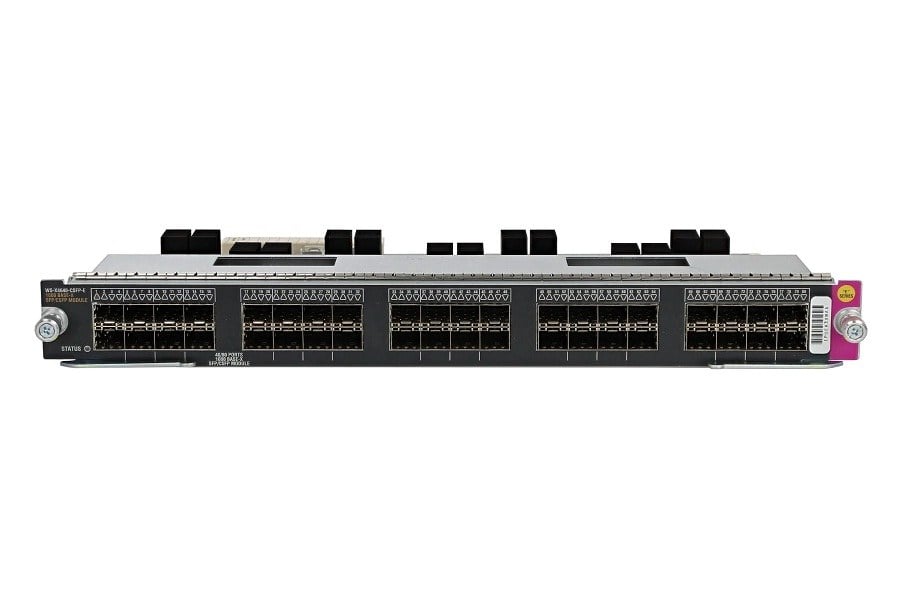

The WS-X4640-CSFP-E is a Cisco Catalyst 4500E Series line card switch that offers 40 ports for network connectivity. It is designed to provide high-performance networking capabilities and supports a wide range of applications and protocols.
Here’s an overview of the performance and capacity of the WS-X4640-CSFP-E line card switch:
- Port Density: The WS-X4640-CSFP-E line card switch provides 40 ports for network connectivity, which allows for the connection of a large number of devices to the network.
- Port Speed: The line card switch supports a range of port speeds, including 100Mbps, 1Gbps, and 10Gbps. This flexibility in port speed allows for the support of a wide range of applications and protocols.
- Forwarding Rate: The WS-X4640-CSFP-E line card switch has a forwarding rate of up to 240 million packets per second (Mpps). This high forwarding rate allows for efficient and fast data transmission across the network.
- Switching Capacity: The line card switch has a switching capacity of up to 480 Gbps. This high switching capacity ensures that the switch can handle large amounts of network traffic without experiencing bottlenecks or slowdowns.
- Buffer Size: The WS-X4640-CSFP-E line card switch has a buffer size of up to 8 MB per port. This large buffer size helps prevent packet loss and ensures that network traffic is efficiently managed.
- Quality of Service (QoS): The line card switch supports a range of QoS features, including priority queuing, traffic shaping, and policing. These QoS features help ensure that network traffic is prioritized appropriately and that critical applications receive the necessary bandwidth and resources.
- Layer 2 and Layer 3 Support: The WS-X4640-CSFP-E line card switch supports both Layer 2 and Layer 3 switching, which allows for the support of a wide range of network topologies and protocols.
- Redundancy: The line card switch supports a range of redundancy features, including Link Aggregation Control Protocol (LACP), Virtual Router Redundancy Protocol (VRRP), and Hot Standby Router Protocol (HSRP). These redundancy features help ensure network availability and prevent downtime in the event of a network failure.
Redundancy and Failover Features
The WS-X4640-CSFP-E Cisco Catalyst 4500E Series Line Card Switch is designed to provide high-performance networking capabilities to the Cisco Catalyst 4500E Series Switches. The line card comes equipped with a range of redundancy and failover features that help ensure reliable and uninterrupted network operations. Here’s an overview of the redundancy and failover features of the WS-X4640-CSFP-E line card:
- Modular Redundancy: The WS-X4640-CSFP-E line card supports modular redundancy, which means that you can install a second line card in the switch chassis to provide backup in case the primary line card fails. The two line cards can be configured in a hot standby mode, with the backup line card automatically taking over if the primary line card fails.
- In-Service Software Upgrade (ISSU): The WS-X4640-CSFP-E line card supports ISSU, which allows you to upgrade the switch’s software without interrupting network operations. This feature ensures that the switch and its line cards remain operational during software upgrades, reducing the risk of downtime and service interruptions.
- Link Aggregation Control Protocol (LACP): The WS-X4640-CSFP-E line card supports LACP, which allows you to bundle multiple physical links into a single logical link. This feature provides redundancy and failover capabilities by automatically redirecting traffic to an alternate physical link in case one link fails.
- Bidirectional Forwarding Detection (BFD): The WS-X4640-CSFP-E line card supports BFD, which provides a fast and reliable mechanism for detecting and recovering from network failures. BFD can be used to detect link and path failures and can trigger failover mechanisms to switch traffic to alternate paths or links.
- Virtual Switching System (VSS): The WS-X4640-CSFP-E line card supports VSS, which allows you to configure redundant switches to provide backup in case the primary switch fails. VSS ensures that the backup switch takes over the primary switch’s role, enabling seamless failover and ensuring that network traffic continues to flow.
- Hot Standby Router Protocol (HSRP): The WS-X4640-CSFP-E line card supports HSRP, which allows you to configure redundant routers to provide backup in case the primary router fails. HSRP ensures that the backup router takes over the primary router’s IP address, enabling seamless failover and ensuring that network traffic continues to flow.
- Graceful Restart: The WS-X4640-CSFP-E line card supports graceful restart, which allows the switch to recover from failures and restart without disrupting network operations. This feature ensures that the switch and its line cards remain operational during restarts, reducing the risk of downtime and service interruptions.
General Information about this Cisco WS-X4640-CSFP-E
- Manufacturer: Cisco
- Part Number or SKU# WS-X4640-CSFP-E
- Product Type: Expansion Module
- Product Name: Catalyst 40 Ports Expansion Module
- Line Extension: Catalyst
- Series Extension: 4500-E
Technical Specifications
- Ports: 40 x Gigabit SFP (Small Form-Factor Pluggable)
- Series: 4500 Series Switches
- Enclosure Type: Plug-in module
- Jumbo Frame Support: Up to 9216 bytes
- Max Operating Temperature: 104°F
- Storage Temperature: -40°F to 167°F
- Humidity Range Operating: 10% – 90% (non-condensing)
- Interfaces: 40 x SFP (mini-GBIC)
- Subtype: Gigabit Ethernet
- Performance Per-slot switching capacity: 24 Gbps
- OS Required: Cisco IOS XE
I/O Expansions
- Expansion Slots 40 x SFP (mini-GBIC)
- Management & Protocols
- Management QoS
Compatibility
- Cisco Catalyst 4500E Series Switches
- Green Compliant Yes
- Green Compliance Certificate/Authority RoHS-5
In general, the Cisco WS-X45-SUP9-E Catalyst 4500E Series module is a versatile and high-performance networking solution designed to meet the demands of modern enterprise and service provider networks. With its advanced features, scalability, and reliability, it offers a cost-effective way to enhance connectivity, improve performance, and strengthen security across the network infrastructure. Whether deployed in enterprise data centers, campus networks, or service provider environments, the Cisco WS-X45-SUP9-E module delivers the performance and flexibility needed to support a wide range of applications and services.
