Description
Overview of the Cisco ASR 1001-X Ethernet Router

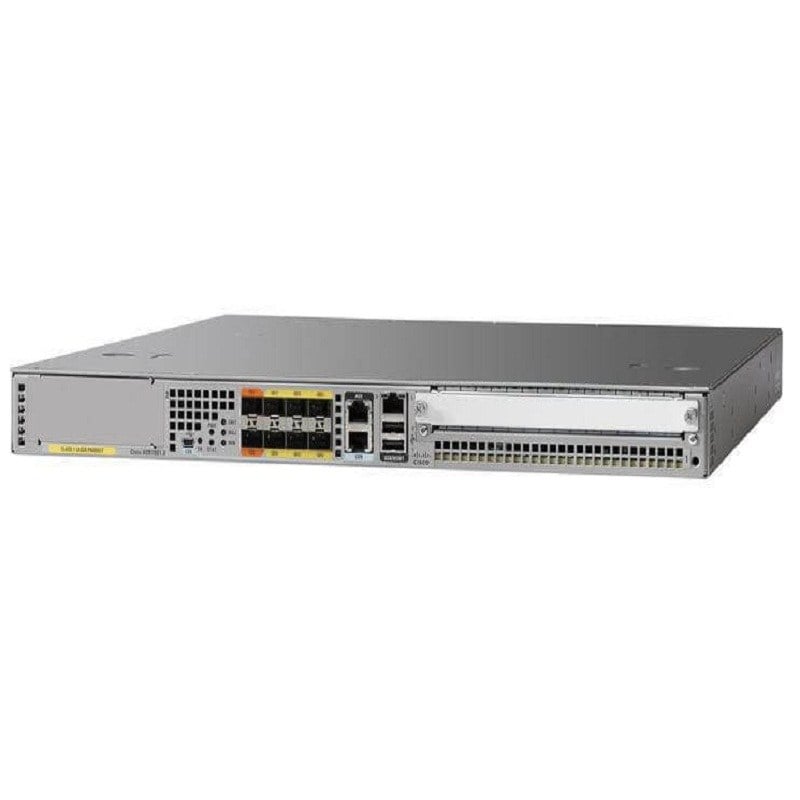

The Cisco ASR1001X-20G-VPN is a cutting-edge aggregation services router (ASR) designed for high-performance networking, delivering advanced capabilities suitable for a wide range of applications. This 1U rack-mountable router is equipped with powerful features, including 9 expansion slots, 10 Gigabit Ethernet interfaces, and an embedded services processor. In this detailed exploration, we will delve into the key attributes of the ASR1001X-20G-VPN, emphasizing its modularity, wired routing capabilities, and the unique advantages it brings to network infrastructure.
Features and Benefits of the Cisco 10 Gigabit Ethernet Router
The Cisco ASR1001X-20G-VPN is a powerful and versatile networking solution designed for businesses and organizations seeking high-performance, scalable, and secure networking capabilities. In this detailed exploration, we will delve into the key features of this router, including its expansion slots, 10 Gigabit Ethernet support, rack-mountable design, and the benefits of the Cisco ASR 1000 Series Embedded Services Processor.
Expansion Slots for Enhanced Scalability
One of the standout features of the ASR1001X-20G-VPN is its nine expansion slots, providing ample room for customization and scalability. These slots enable users to integrate various modules and interfaces, tailoring the router to meet specific networking requirements. Whether it’s additional ports, advanced security features, or enhanced connectivity options, the expansion slots empower organizations to adapt their networking infrastructure as needs evolve.
High-Speed Connectivity with 10 Gigabit Ethernet
In today’s fast-paced digital landscape, high-speed connectivity is non-negotiable. The ASR1001X-20G-VPN meets this demand by supporting 10 Gigabit Ethernet, ensuring swift and reliable data transfer. This capability is crucial for data-intensive tasks, such as large file transfers, video streaming, and real-time collaboration. The router’s 10 Gigabit Ethernet support positions it as a robust solution for businesses with demanding networking requirements.
Rack-Mountable Design for Space Efficiency
Space efficiency is a critical consideration in modern data centers and networking environments. The ASR1001X-20G-VPN addresses this concern with its rack-mountable design. The 1U form factor makes it easy to integrate the router into standard server racks, optimizing space utilization. This compact design is especially beneficial for businesses with limited rack space, allowing them to maximize the efficiency of their networking infrastructure without compromising performance.
Aggregation Services Routers (ASR) 1001-X Modular Architecture
The ASR1001X-20G-VPN belongs to the ASR 1001-X modular series, known for its modular architecture. This design philosophy enhances flexibility and scalability by allowing users to upgrade and expand individual components without replacing the entire router. This modular approach not only simplifies upgrades but also future-proofs the networking infrastructure, enabling organizations to adapt to evolving technologies seamlessly.
Cisco ASR 1000 Series Embedded Services Processor (ESP)
At the heart of the ASR1001X-20G-VPN lies the Cisco ASR 1000 Series Embedded Services Processor. This dedicated processing unit is specifically designed to handle a range of services, including security, acceleration, and traffic management. By offloading these tasks to a specialized processor, the router can maintain optimal performance even when subjected to resource-intensive workloads. The inclusion of the ASR 1000 Series ESP reinforces the router’s capability to deliver reliable and high-performance networking services.
20Gbps Throughput for Efficient Data Handling
The ASR1001X-20G-VPN boasts a remarkable 20Gbps throughput, signifying its ability to handle substantial data loads with ease. This high throughput is essential for ensuring smooth and uninterrupted network operations, especially in environments with high data traffic. Whether supporting numerous users, managing large datasets, or facilitating data-intensive applications, the router’s 20Gbps throughput ensures that it can meet the demands of modern networking environments.
Maximum 2 Installed Internal Power Supply

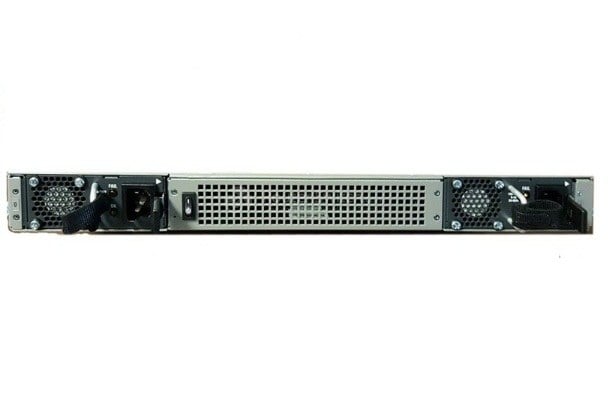

To further enhance reliability, the ASR1001X-20G-VPN supports a maximum of two installed internal power supplies. This dual power supply configuration adds an extra layer of resilience to the router’s power infrastructure. In addition to the redundancy feature, having two internal power supplies ensures that the router can efficiently distribute power, contributing to stable and consistent performance.
Use Cases of Rack-mountable 10 Gigabit Ethernet Router Enterprise Networking
The ASR1001X-20G-VPN is well-suited for enterprise networking environments where scalability, high-speed connectivity, and reliability are paramount. Its modular design allows enterprises to adapt to changing business needs without the need for a complete router replacement.
Data Center Deployments
In data center deployments, where space efficiency is crucial, the 1U rack-mountable design of the ASR1001X-20G-VPN shines. The router’s high-speed data transfer capabilities make it suitable for handling the large volumes of data typically encountered in data center operations.
Service Provider Networks
Service providers benefit from the ASR1001X-20G-VPN’s scalability and modular architecture. The router’s ability to support a variety of interfaces and services makes it an excellent choice for building robust and adaptable networks in service provider environments.
Power Redundancy and ReliabilityInternal Power Supply
The ASR1001X-20G-VPN features an internal power supply, streamlining its installation and reducing the need for external power sources. This internal power supply enhances the router’s overall reliability by minimizing points of failure and simplifying the setup process for network administrators.
Maximum 2 Installed
For added redundancy and resilience, the ASR1001X-20G-VPN supports a maximum of 2 installed internal power supplies. This dual-power supply configuration ensures continuous operation even in the event of a power supply failure. This feature is critical for businesses that prioritize uninterrupted network connectivity and uptime.
General Information for the Cisco 10 Gigabit Ethernet Router
Manufacturer: Cisco
Part Number or SKU# ASR1001X-20G-VPN
Product Series: ASR 1000
Product Name: ASR 1001-X Router
Product Type: Router
Technical Information of ASR 1001-X Router Module
- Enclosure Type: Rack-mountable – modular – 1U
- Connectivity Technology: Wired
- Data Link Protocol: Gigabit Ethernet
- Performance: Bandwidth: 20 Gbps
- Network/Transport Protocol: IPSec
- Encryption Algorithm: AES
- Features: Firewall protection, VPN support
- Compliant Standards: EN55022, UL 60950, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, AS/NZS, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, EN 55024: CISPR 24:2010, EN 300 386
Memory
Processor: 1 x
RAM: 8 MB (installed) / 16 GB (max)
Status Indicators: Power, status, alarm, console
Expansion/Connectivity
- Interfaces:
- Management: 1 x 10Base-T/100Base-TX – RJ-45
- Management: 1 x console – RJ-45
- Management: 1 x auxiliary – RJ-45
- USB: 1 x console
- USB: 2 x 4-pin USB Type A
- 6 x SFP (mini-GBIC)
- 2 x SFP+
- Expansion Slots: 1 (total) / 0 (free) x expansion slot
- Installed Modules Qty (Max): 0 (installed) / 1 (max)
Power
- Power Device: Internal power supply
- Power Redundancy: Yes
- Installed Qty: 2 (installed) / 2 (max)
In summary, the Cisco ASR1001X-20G-VPN stands out as a robust and feature-rich aggregation services router, catering to the diverse needs of modern networking environments. Its modularity, 10 Gigabit Ethernet interfaces, rack-mountable design, integration of the Cisco ASR 1000 Series Embedded Services Processor, 20Gbps throughput, and power redundancy collectively make it a compelling choice for organizations seeking a reliable and scalable solution. The router’s internal power supply further adds to its appeal, simplifying deployment and contributing to a more efficient network infrastructure. As technology continues to evolve, the ASR1001X-20G-VPN positions itself as a forward-looking investment, capable of meeting the challenges of today and tomorrow in the dynamic landscape of networking.
