Product Introduction of the GBIC-SFP Transceiver
In the ever-evolving landscape of networking solutions, the GLC-BX-U Cisco 1000Base BX10 SFP Transceiver Module emerges as a key player. This comprehensive guide is designed to demystify the technical intricacies, specifications, and applications of the GLC-BX-U, making it accessible for both tech enthusiasts and those navigating the world of networking components.
Unveiling the GLC-BX-U

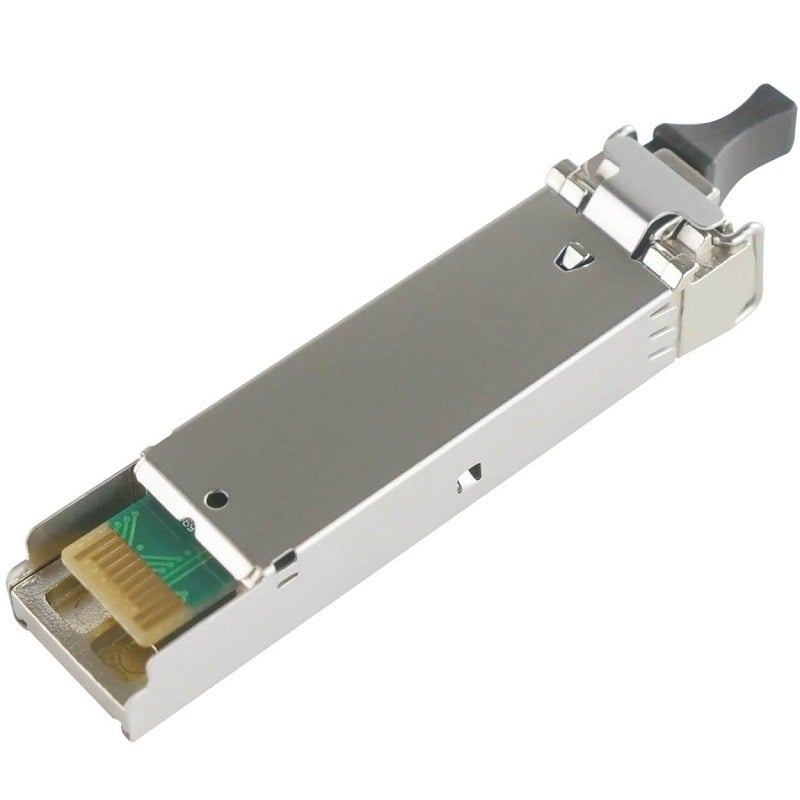

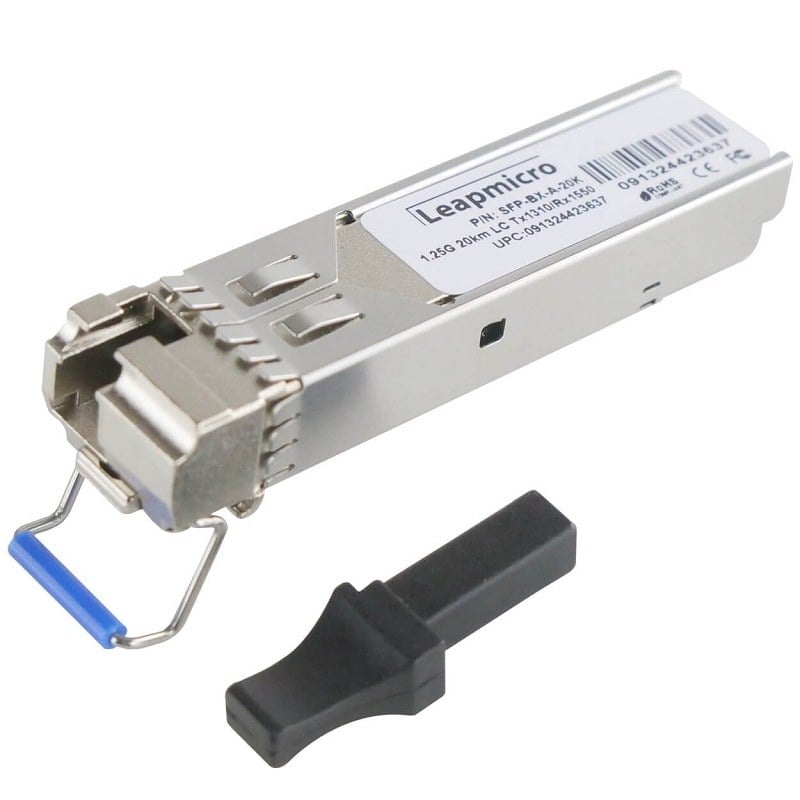

The GLC-BX-U is a Small Form-Factor plugable (SFP) transceiver module manufactured by Cisco, designed to operate within the framework of 1000Base BX10 specifications. Let’s delve into the specifics that define the functionality and significance of this transceiver module.
Understanding the Technical NuancesProduct Name: GLC-BX-U Cisco 1000Base BX10 SFP Transceiver Module
The product name itself provides a wealth of information. GLC-BX-U signifies the product line and model, Cisco indicates the manufacturer, 1000Base BX10 specifies the standard it adheres to, and SFP Transceiver Module highlights its form factor and functionality.
Data Rate: 1 Gigabit Ethernet
The GLC-BX-U operates at a data rate of 1 Gigabit per second (1 Gbps), aligning with the Gigabit Ethernet standard. This ensures swift and efficient data transfer, making it suitable for a wide range of networking applications.
Wavelength: BX10 (Bidirectional 10)
The BX10 designation indicates a bidirectional communication method, where data is transmitted and received over the same fiber strand. This bidirectional approach enhances efficiency and is particularly relevant to the BX (BiDirectional) standard.
Fiber Type: Single-Mode
Designed for use with Single-Mode Fiber, the GLC-BX-U excels in scenarios where data needs to traverse longer distances with minimal signal loss. Single-mode fiber is known for its capability to support high bandwidth over extended distances.
Transmission Distance: Up to 10 Kilometers
The GLC-BX-U is optimized for a transmission distance of up to 10 kilometers. This makes it a suitable choice for scenarios where connectivity is required across larger physical spaces, such as between buildings in an enterprise network.
Wavelengths: 1310nm for TX and 1490nm for RX
The specified wavelengths, 1310nm for Transmit (TX) and 1490nm for Receive (RX), indicate the light frequencies used for data transmission. This adherence to standard wavelengths ensures compatibility with other networking components and supports efficient data transfer.
Connector Type: LC Connector
The use of the LC Connector is a noteworthy feature. LC Connectors are known for their compact size and reliable performance, facilitating a secure connection between the GLC-BX-U module and the optical fiber.
Applications and Use Cases
Understanding where the GLC-BX-U fits into the broader networking landscape is pivotal. Let’s explore its applications and use cases to appreciate its versatility.
Data Centers
In the dynamic environment of data centers, where high-speed and long-distance connectivity is imperative, the GLC-BX-U finds its application. Its compatibility with Single-Mode Fiber and 10km transmission distance is advantageous for interconnecting servers, switches, and storage devices.
Enterprise Networks
Enterprise networks often span across multiple buildings or locations. The GLC-BX-U’s 10km reach becomes a valuable asset for establishing reliable connections between different branches or departments within a corporate network.
Telecommunication Networks
Telecommunication networks demand robust and efficient components for transmitting data over varying distances. The GLC-BX-U, with its Single-Mode Fiber compatibility, aligns with the requirements of telecommunication infrastructures, ensuring data integrity and reliability.
Internet Service Providers (ISPs)
ISPs navigating the complexities of network infrastructure benefit from the GLC-BX-U’s capabilities. Whether establishing links between network nodes or providing connectivity to end-users, this transceiver module contributes to the seamless flow of data.
Installation Guide
Deploying the GLC-BX-U requires a systematic approach to ensure optimal performance. Let’s outline the key steps for its installation.
Compatibility Check
Before installation, confirm that the GLC-BX-U is compatible with your networking device. Refer to the device’s documentation or the GLC-BX-U datasheet to ensure alignment with technical specifications.
Safety First
Ensure all devices involved in the installation, including the transceiver module and networking equipment, are powered off. Safety is paramount during installation procedures.
Insertion of GLC-BX-U
Carefully insert the GLC-BX-U into the designated SFP slot on the networking device. Ensure proper alignment with the slot to avoid damage.
Securing the Connection
Once inserted, secure the connection by gently pushing the module until it clicks into place. This ensures a stable and reliable connection between the GLC-BX-U and the networking device.
Connect Fiber Optic Cables
Connect the Single-Mode Fiber optic cables to the LC connectors on the GLC-BX-U. Ensure a snug fit to prevent signal loss or disconnection.
Power On and Testing
Power on the networking device and monitor the system for the detection of the GLC-BX-U. Perform thorough testing to ensure proper connectivity, data transfer rates, and the absence of any issues.
Advantages and Benefits
Understanding the advantages of the GLC-BX-U is critical for making informed decisions about its deployment. Let’s explore the benefits it brings to networking setups.
Long-Distance Connectivity
The GLC-BX-U’s compatibility with Single-Mode Fiber and a 10km transmission distance make it an ideal choice for establishing long-distance connectivity within a network.
High-Speed Data Transfer
Operating at 1Gbps, the transceiver module ensures high-speed data transfer, crucial for applications where rapid data exchange is a necessity.
Versatility with SFP Design
The Small Form-Factor Plugable design adds versatility to the GLC-BX-U, allowing for easy integration into a variety of networking devices with SFP slots.
Reliable LC Connector
The use of the LC Connector ensures a reliable and secure connection, minimizing the risk of signal loss or disruption.
Broad Applications in Various Settings
From data centers to enterprise networks and telecommunication infrastructures, the GLC-BX-U’s versatility positions it as a valuable component in diverse networking settings.
Specific Performance
The GLC-BX-U Cisco 1Gbps 1000Base-BX-U Single-mode SFP Transceiver Module is designed to provide high-performance Gigabit Ethernet connectivity over a single-mode optical fiber.
- Data rate: supports data rates of up to 1 Gbps.
- Distance: It can support a maximum distance of 10km over a single-mode optical fiber.
- Wavelength: The module uses a wavelength of 1310nm for transmission and 1490nm for reception.
- Connectivity: it is compatible with Cisco devices that support the SFP interface.
The module is designed to operate in a wide range of temperatures and humidity levels, and it complies with industry standards for electromagnetic compatibility (EMC) and safety. Its compact form factor and high performance make it ideal for use in a variety of applications, including data centers, enterprise networks, and service provider networks.
General Information about this Cisco GLC-BX-U
- Manufacturer: Cisco
- Part Number or SKU# GLC-BX-U
- Product Name: 1000BASE-BX10 Upstream SFP Module
- Product Type: Transceiver Module
Technical Information of 1000BASE-BX10 SFP Module
- Interface Type: SFP (mini-GBIC)
- Application/Usage: Data Networking
- Type: SFP (mini-GBIC) transceiver module
- Form Factor: Plug-in module
- Connectivity Technology: Wired
Interfaces/Ports of 1GBPS Transceiver Module
- Interfaces/Ports: 1 x 1000Base-BX
- Interfaces/Ports Details: 1 x LC 1000Base-BX
- Ports Qty: 1
- Max Transfer Distance: 6.2 miles
Performance of Single-Mode Transceiver
- Connectivity Media: G.652 µm Single-mode Optical Fiber
- Data Transfer Rate: 1 Gbps Gigabit Ethernet
- Media Type Supported: Optical Fiber
- Fiber Mode Supported: Single-mode
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 1000Base-BX10
Management and Protocols
- Management: Digital optical monitoring (DOM) functions
Compatibility
The Cisco GLC-BX-U is compatible with a wide array of Cisco devices. Here’s a comprehensive list:
- ASA5500 Series Appliances
- ASR 901 and 903 Series Routers
- ASR 1000, 9000, and 9000v Series Routers
- Catalyst Express 500 and Express 520
- Catalyst 2350 and 2360 Series
- Catalyst 2900, 2940, 2950, 2960, 2960-Plus, 2960-C, 2960-S, 2960-SF, 2960-X Series
- Catalyst 2970 and 2975 Series
- Catalyst 3000 and 3100 Blade Switches
- Catalyst 3500XL Series
- Catalyst 3550, 3560, 3560-C, 3560-E, 3560-X Series
- Catalyst 3750-E Series, 3750 Metro, 3750-X Series
- Catalyst 3850 Series
- Catalyst 4500 and 4500-X Series
- Catalyst 4900 Series
- Catalyst 6000 Series
- Catalyst 6800 Series
- Cisco 1941 Series Router
- Cisco 2600, 2800, 2900 Series Router
- Cisco 3200, 3600, 3700 Series Router
- Cisco 4400 Series Router
- Cisco 5700 Series Wireless LAN Controller
- Cisco 6400 Universal Access Router
- Cisco uBR7200 Series
- Cisco 7200, 7300, 7500, and 7600 Series Routers
- Cisco 10000 and uBR 10000 Series Routers
- Cisco 10700 Series Internet Router
- Cisco 12000 Series Router
- Cisco 2000 Connected Grid Router Series
- Cisco 2500 Connected Grid Switch Series
- Cisco IE2000 and IE2000U Series
- Cisco IE3010 Series
- Cisco MDS 9000
- Cisco ME 2400
- Cisco ME 2600X
- Cisco ME 3400
- Cisco ME 3600X and ME 3800X
- Cisco ME 4600 and ME 4900 Series
- Cisco ME 6500 Series
- Cisco MWR 2941 Mobile Wireless Router
- CRS Router Series
- CSS 11500 Series
- Cisco RF Gateway Series
- NAM 2200 Series Appliances
- Nexus 2000, 3000, 4000, 5000, 7000, 9000, 9300, 9500 (modular) Series
In summary, the GLC-BX-U Cisco 1000Base BX10 SFP Transceiver Module stands as a reliable and efficient solution for diverse networking needs. From its technical specifications to its broad range of applications, this guide aims to simplify the understanding of this essential networking component. Whether you’re an IT professional looking to optimize data center connectivity or a business owner exploring networking upgrades, comprehending the GLC-BX-U contributes to informed decision-making and seamless network operations.
