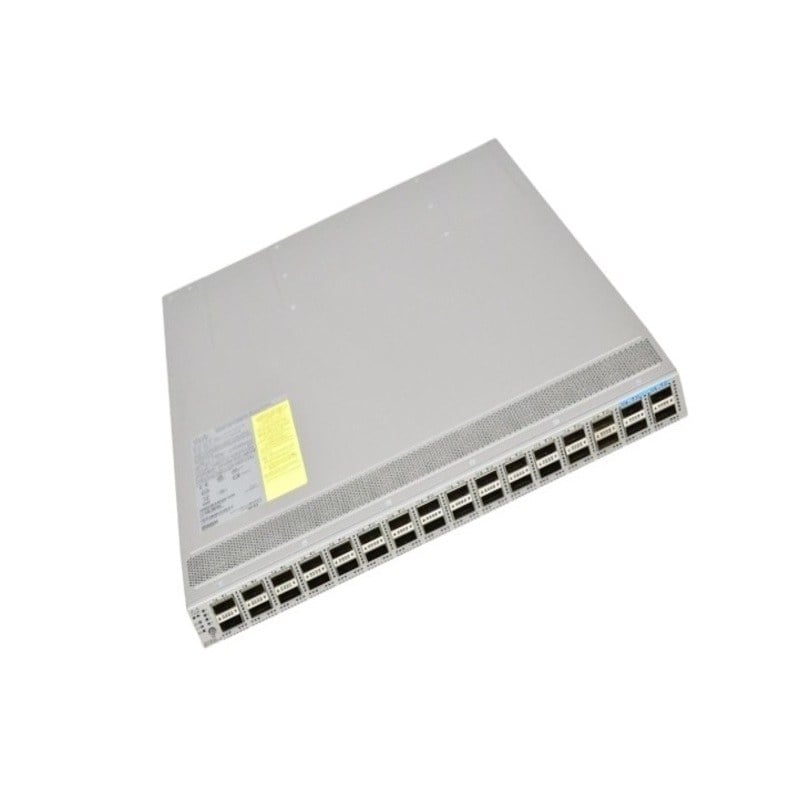

Product Details for the Cisco N9K-C93180LC-EX Managed Switch
The N9K-C93180LC-EX belongs to Cisco’s Nexus series, renowned for delivering advanced networking solutions. This particular switch is engineered to provide high-speed, reliable connectivity in data centers, offering 40 Gigabit Ethernet expansion slots and a range of features that make it an ideal choice for enterprises with demanding networking needs. One such exemplary offering from Cisco is the N9K-C93180LC-EX Nexus switch, a powerful 40-gigabit Ethernet switch designed to meet the demands of modern data centers and networking environments.
Layer 3 (L3) Functionality
The Layer 3 functionality of the Cisco N9K-C93180LC-EX Nexus switch adds a layer of intelligence to network routing. This capability enables the switch to make routing decisions based on IP addresses, optimizing the flow of data between different subnets. Layer 3 switches are essential for efficiently managing large and complex networks, and the inclusion of this feature enhances the switch’s overall performance.
40 Gigabit Ethernet Capability
The Cisco N9K-C93180LC-EX is equipped with cutting-edge 40 Gigabit Ethernet (40GbE) technology, enabling high-speed data transmission within the network. This capability is crucial for handling the increasing data loads in modern data centers and facilitating faster communication between servers, storage devices, and other network components.
Expansion Slots and 40GBase-X Connectivity
One of the standout features of this Nexus switch is its expansion slots, which play a pivotal role in enhancing its scalability and flexibility. The switch supports 40GBase-X connectivity, allowing for the use of 40 Gigabit Ethernet expansion modules. These expansion slots open up opportunities for additional connections and future upgrades, ensuring that the switch remains adaptable to evolving network requirements.
Rack Mountable 1U Design
The Cisco N9K-C93180LC-EX is designed with practicality in mind, featuring a rack mountable 1U form factor. This compact design is space-efficient and fits seamlessly into standard server racks, maximizing the use of valuable data center space. The rack-mountable configuration also simplifies installation and maintenance, making it an ideal choice for environments where space is at a premium.
28 Slots and 24 Manageable Ports
The switch offers a total of 28 slots, providing ample room for expansion modules and additional ports. Among these, 24 ports are manageable, allowing for efficient control and configuration of network traffic. The combination of numerous slots and manageable ports makes the Cisco N9K-C93180LC-EX an ideal solution for growing networks with evolving connectivity needs.
Switch Manageability
Managing a network switch is a critical aspect of maintaining optimal performance and security. The Cisco N9K-C93180LC-EX excels in terms of manageability, offering advanced features for network administrators. From configuring ports to monitoring network traffic, the switch provides a user-friendly interface that simplifies the often complex task of network management.
Benefits
- Enhanced Network Performance: The Cisco N9K-C93180LC-EX Nexus switch delivers enhanced network performance through its 40 Gigabit Ethernet capabilities. This is crucial for data-intensive applications, enabling faster data transfers and reduced latency for improved user experiences.
- Flexibility and Connectivity Options: The switch’s 30 QSFP+ ports and 28 QSFP slots provide a high degree of flexibility in terms of connectivity options. This versatility allows organizations to adapt their network architecture to specific needs and integrate the switch seamlessly into existing infrastructures.
- Space-Efficient Design: The 1U rack-mountable design of the switch optimizes space in data center racks. This is essential for organizations with limited rack space, allowing them to deploy a high-performance switch without compromising on the efficiency of their data center layout.
- Scalability for Future Growth: The scalability of the N9K-C93180LC-EX ensures that organizations can easily expand their network infrastructure to accommodate future growth. This scalability is vital for businesses that anticipate increases in data traffic and need a network solution that can scale accordingly.
- Reliability and Redundancy: Cisco’s commitment to reliability is reflected in the N9K-C93180LC-EX, which supports redundant power supplies and fans. This redundancy minimizes the risk of downtime due to hardware failures, contributing to the overall reliability of the network.
- Efficient Management and Monitoring: The comprehensive management options of the switch contribute to efficient network administration. Network administrators can easily configure and monitor the switch, facilitating proactive and ensuring the overall health and performance of the network.
Use Cases of 40 Gigabit Ethernet Switch
The Cisco N9K-C93180LC-EX Nexus Switch is well-suited for a variety of use cases across different industries. Some notable implementations include:
Data Centers
In data center environments where high-performance networking is paramount, the N9K-C93180LC-EX shines. Its 40 Gigabit Ethernet expansion slots, coupled with 30 QSFP+ ports and 28 QSFP slots, make it an ideal choice for handling the substantial data transfer requirements of modern data centers. The 1U rack-mounted form factor further enhances its suitability for space-constrained data center environments.
Enterprise Networks
For large enterprises with diverse networking needs, the switch’s Layer 3 capabilities and manageable ports offer the flexibility required to support complex network topologies. Whether connecting multiple office locations, supporting virtualization initiatives, or ensuring reliable connectivity for critical business applications, the N9K-C93180LC-EX provides a robust and scalable networking solution.
Service Providers
Service providers operating in telecommunications and other network-centric industries can benefit from the switch’s high-speed connectivity and scalable design. The abundance of QSFP+ ports and QSFP slots makes it well-suited for aggregating and transporting large volumes of data across the network. The Layer 3 capabilities add an extra layer of intelligence to the switch, facilitating efficient routing in service provider environments.
High Performance of Manageable Switch
The N9K-C93180LC-EX Cisco Nexus 24 Ports Layer 3 Managed Switch is considered to have high-performance capabilities. This switch is designed for data center environments and is equipped with advanced features such as Quality of Service (QoS), VLAN support, and security features. It also supports Cisco Application Centric Infrastructure (ACI) which allows for automated and programmable network infrastructure.
The switch has a high-performance ASIC that provides up to 1.44 Tbps of throughput, making it suitable for high-bandwidth applications. It also supports 40 and 100 GbE ports, which provide fast and reliable connectivity for your network.
The part switch is equipped with advanced features such as Virtual Extensible LAN (VXLAN) and Network Virtualization using Generic Routing Encapsulation (NVGRE), which provide a scalable and secure network infrastructure.
Main Information for the Cisco N9K-C93180LC-EX Ethernet Switch
- Manufacturer: Cisco
- Part Number or SKU# N9K-C93180LC-EX
- Product Line: Nexus
- Product Series: 9300-EX
- Product Type: Ethernet Switch
Technical Information
- Total Number of Network Ports: 24
- Uplink Port: No
- Modular: Yes
- Stack Port: No
- Port/Expansion Slot Details: 6 x 100 Gigabit Ethernet Expansion Slot
- Port/Expansion Slot Details: 24 x 40 Gigabit Ethernet Expansion Slot
Performance
- Media Type Supported: Optical Fiber
- Ethernet Technology: 100 Gigabit Ethernet
- Ethernet Technology: 40 Gigabit Ethernet
- Network Technology: 100GBase-X
- Network Technology: 40GBase-X
- Number of Total Expansion Slots: 30
- Expansion Slot Type: QSFP+
- Expansion Slot Type: QSFP28
- Shared SFP Slot: No
- Layer Supported: 3
Interfaces
- 24 x 40Gbit/50Gbit LAN Qsfp+ Downlink
- 6 x 100Gbit/40Gbit LAN Qsfp28 Uplink
- 1 x Management RJ-45
- 1 x Management SFP+
- 1 x USB
- 1 x Serial (RS-232)
Power
- Power Device: Internal Power Supply (not installed) – Hot-plug
- Max Supported Qty: 2
- Power Redundancy: Optional
- Power Redundancy Scheme: N+1
Finally, the Cisco N9K-C93180LC-EX Nexus Switch stands out as a versatile and powerful networking solution with a rich set of features. From its 40 Gigabit Ethernet expansion slots to its Layer 3 capabilities and manageable ports, this switch is designed to meet the demands of modern and dynamic networking environments. Whether deployed in data centers, enterprise networks, or by service providers, the N9K-C93180LC-EX offers a reliable and scalable foundation for building robust and high-performance networks. With its 1U rack-mounted form factor, it optimizes space utilization, making it a practical choice for organizations seeking efficient and space-conscious networking solutions.
