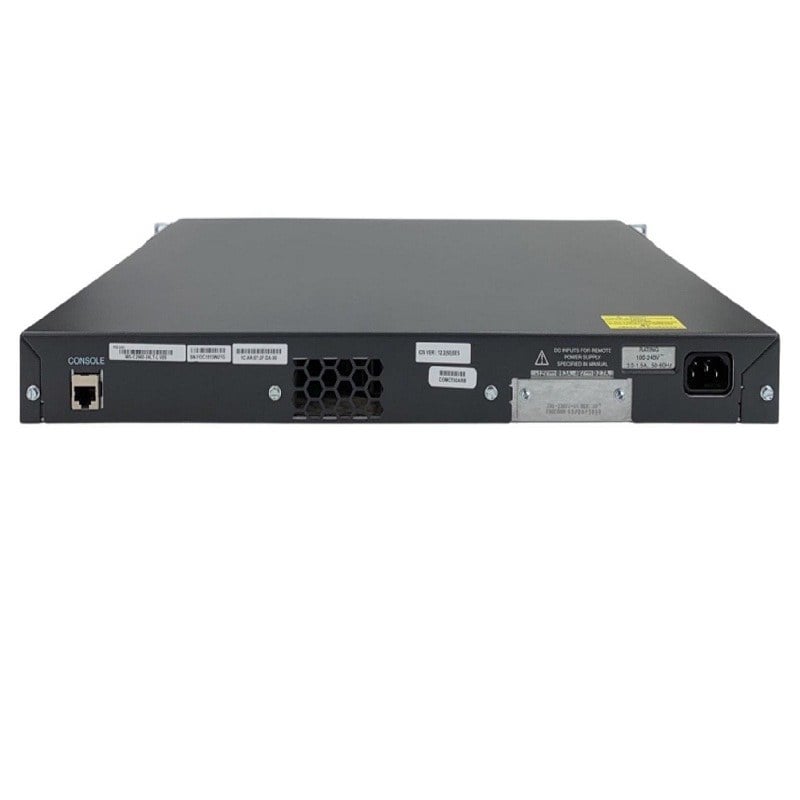

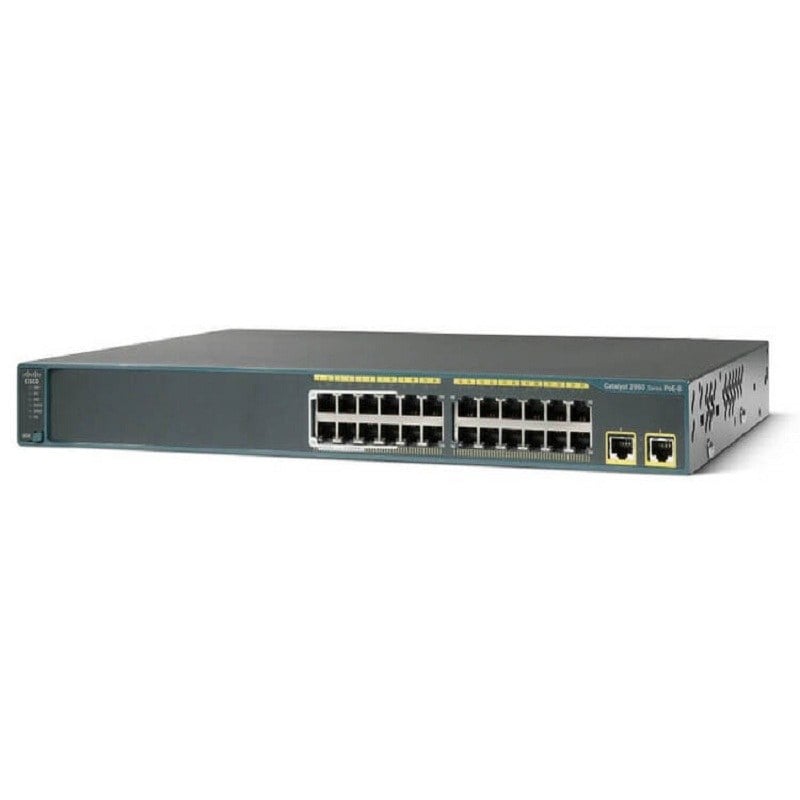

Product Overview of the Cisco WS-C2960-24LT-L Catalyst 2960 Managed Switch
The Cisco WS-C2960-24LT-L Catalyst 2960 is a managed switch renowned for its reliability and performance in networking. With support for 24 ports operating at Fast Ethernet speeds through twisted pair cabling, this rack-mountable switch plays a pivotal role in establishing resilient and high-performing networks.
Key Features
- Fast Ethernet Support: The switch provides support for 24 ports, all capable of delivering Fast Ethernet connectivity via twisted pair cabling.
- Rack-Mountable Design: Its design allows for easy installation in standard server racks, optimizing space utilization in network environments.
- Managed Switch Functionality: Offering managed switch capabilities, it enables administrators to configure, monitor, and optimize network performance.
Detailed Overview of Key FeaturesFast Ethernet Support
The switch’s 24 ports are designed to facilitate Fast Ethernet connectivity, allowing for reliable data transfer at a rate of 100 megabits per second (Mbps). This speed is suitable for various devices within a network, including computers, printers, and IP phones, ensuring swift data exchange.
Rack-Mountable Design
Its rack-mountable feature allows for convenient installation in standard server racks, streamlining the organization of networking equipment in data centers or server rooms. This design aids in efficient space utilization, crucial for maintaining a tidy and manageable infrastructure.
Managed Switch Functionality
As a managed switch, the WS-C2960-24LT-L Catalyst 2960 offers advanced capabilities for network administration. This includes features such as VLAN management, Quality of Service (QoS) settings, and security configurations, providing administrators control over network traffic and security protocols.
Use Cases and Applications
- Small to Medium-Sized Businesses: The switch caters to the networking needs of small to medium-sized enterprises, providing essential connectivity and management features.
- Office Environments: Ideal for office setups, the switch efficiently connects devices within the same network segment, supporting seamless data transfer for various tasks.
- Educational Institutions: In educational settings, the switch helps establish reliable and manageable networks for classrooms or administrative purposes.
Benefits of Cisco WS-C2960-24LT-L Catalyst 2960 Switch
- Fast Ethernet Connectivity: The switch’s support for Fast Ethernet ensures reliable and swift data transfer between connected devices.
- Space Optimization: Its rack-mountable design optimizes space in server racks, making it suitable for various network environments.
- Managed Switch Capabilities: Administrators can efficiently manage and configure the switch, enabling customized settings for improved network performance and security.
24 Ports Managed Switch
The WS-C2960-24LT-L is a Cisco Catalyst switch with 24 Ethernet ports. It is a managed switch, meaning it can be configured and monitored through a network management system. The switch supports Fast Ethernet (10/100 Mbps) speeds on all ports and has a switching capacity of 8.8 Gbps. It also supports advanced features such as Quality of Service (QoS), VLANs, and link aggregation. The “L” in the model number indicates that it is a lower-cost option compared to other models in the 2960 series.
This model is a Cisco Catalyst-managed Ethernet switch that has 24 ports. It is designed for small to medium-sized businesses and enterprise branch offices. It provides performance and reliability through features such as:
- Fast Ethernet connectivity for high-speed data transfer
- Quality of Service (QoS) for prioritizing network traffic
- Access Control Lists (ACLs) for security
- Power over Ethernet (PoE) for powering devices such as IP phones and wireless access points
- VLANs for segmenting the network and improving security
In terms of performance, this item is capable of forwarding packets at a rate of up to 38.69 Mpps (million packets per second) and has a switching capacity of 4.8 Gbps. This means it can handle a large amount of network traffic and can support a high number of connected devices.
Compliant Standards
The WS-C2960-24LT-L Cisco Catalyst switch is compliant with a number of industry standards, which ensure that the device is compatible with other networking equipment and functions as expected. Some of the compliant standards for this switch include:
- IEEE 802.3: This standard defines the physical and data link layers of Ethernet networking. It specifies the characteristics of the cables and connectors used, as well as the format of data packets and how they are transmitted over the network.
- IEEE 802.3u: This standard defines the Fast Ethernet (100 Mbps) specifications for Ethernet networks. It specifies the characteristics of 100BASE-TX and 100BASE-FX cabling, which are used to connect devices to the switch.
- IEEE 802.3ab: This standard defines the Gigabit Ethernet (1000 Mbps) specifications for Ethernet networks. It specifies the characteristics of 1000BASE-T cabling, which is used to connect devices to the switch.
- IEEE 802.1Q: This standard defines a method of creating virtual LANs (VLANs) on a LAN, allowing for the segmentation of a network into smaller, more manageable segments.
- IEEE 802.1D: This standard defines the Spanning Tree Protocol (STP), which is used to prevent loops in a network and ensure that there is only one active path between two devices.
- IEEE 802.1p: This standard defines a method of prioritizing traffic on a LAN, allowing time-sensitive traffic such as voice or video to be given priority over less time-sensitive traffic such as file transfers.
- IEEE 802.3af: This standard defines the Power over Ethernet (PoE) feature, which allows the switch to power connected devices through the Ethernet cables, eliminating the need
Robust Security and Dynamic Quality
The WS-C2960-24LT-L Cisco Catalyst switch is a managed switch that provides robust security features to protect your network from unauthorized access and network threats. It supports advanced security features such as Access Control Lists (ACLs) which can be used to control access to the network based on specific criteria such as IP address or MAC address. It also supports other features like 802.1X authentication and DHCP Snooping which provide additional security to the network.
The switch also provides dynamic quality of service (QoS) features that can be used to prioritize different types of network traffic. This ensures that critical applications and services have the necessary bandwidth to operate effectively, while non-essential traffic is given lower priority. This can be useful for applications such as VoIP and video conferencing which require a consistent level of network performance.
General Information about this Cisco WS-C2960-24LT-L
- Manufacturer: Cisco
- Model Number or SKU# WS-C2960-24LT-L
- Product Line: Catalyst
- Product Series: 2960
- Product Name: Catalyst C2960-24LT-L Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Ports for 24 Ports Ethernet Switch
- Electrical Interface: Ethernet Fast – 100Mbps
- Interface Types: Ethernet RJ45, SFP, GBIC
- Total Number of Network Ports: 24
- Uplink Port: Yes
- Uplinks Port Details: 2 Ethernet 10/100/1000 ports
Media & Performance of Catalyst Managed Switch
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 5
- Ethernet Technology: Fast Ethernet
- Network Technology: 10Base-T
- Network Technology: 10/100/1000Base-T
- Maximum transmission unit (MTU) Up to 9000 bytes
- Jumbo frames: 9018 bytes (2960G only)
- Forwarding Rates: 64-Bytes packets 6.5 MPPS
Memory
- Standard Memory: 64 MB
- Memory Technology: DRAM
- Flash Memory: 32 MB
- Forwarding bandwidth 16 Gbps
- MAX VLANs 255
- VLAN IDs 4000
Product Features
- Layer 2 switching, auto-sensing per device, DHCP support
- Power over Ethernet (PoE), auto-negotiation,
- VLAN support, auto-uplink (auto MDI/MDI-X)
- IGMP snooping, DHCP snooping, Quality of Service (QoS)
Management Protocol
- Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2
- Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Power Description
- PoE (RJ-45) Port: Yes
- Input Voltage: 110 V AC
- Input Voltage: 220 V AC
- Redundant Power Supply: Yes
- Available PoE Power 123 Watts
Environmental Parameters
- Minimum Operating Temperature: 23 °F
- Maximum Operating Temperature: 113 °F
In summary, the Cisco WS-C2960-24LT-L Catalyst 2960 switch is an essential component in establishing reliable and efficient networks. With its Fast Ethernet support across 24 ports, rack-mountable design, and managed switch capabilities, this device caters to the fundamental networking needs of small to medium-sized enterprises, office setups, and educational institutions.
