Product Overview of the Cisco Catalyst 3750 Switch

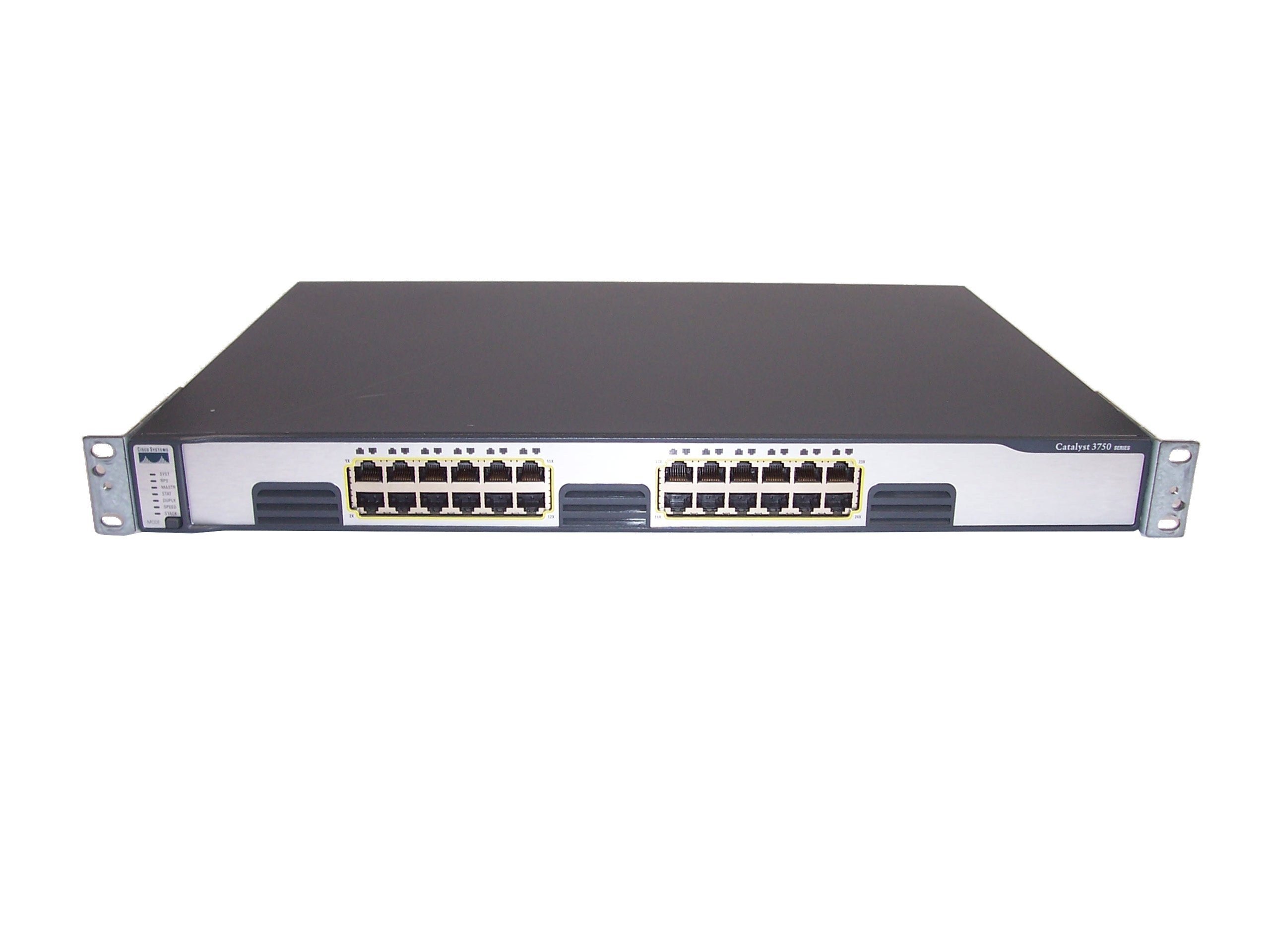

The Cisco WS-C3750G-24T-E is a robust and versatile switch designed to meet various networking needs. Featuring 24 ports supporting 10/100/1000T Gigabit Ethernet connections through RJ-45 connectors, this Layer 3 switch is rack-mountable, occupying 1U of space, and is stackable, offering scalable and efficient connectivity solutions. This item is a model of the Cisco Catalyst 3750 series of switches. It is a fixed-configuration, stackable Gigabit Ethernet switch that provides enterprise-class Layer 2 and Layer 3 switching for networks of all sizes.
This specific model, the WS-C3750G-24T-E, has 24 Gigabit Ethernet ports, as well as several advanced features to help ensure high availability and scalability. Some of these features include support for advanced quality of service (QoS), security, and management capabilities. Additionally, it supports EnergyWise technology which can monitor the energy consumption of connected devices and adjust power usage accordingly to reduce energy consumption. It also includes a StackWise technology which allows multiple switches to be stacked to create a single logical unit and that increases
Understanding Switch Ports and Capabilities
Switches like the WS-C3750G-24T-E facilitate connections between multiple devices in a network. With 24 ports supporting Gigabit Ethernet connections, this switch ensures high-speed and reliable data transfer among connected devices, enabling seamless communication within the network.
Features of Cisco WS-C3750G-24T-E Catalyst 3750 Switch24 Ports Supporting 10/100/1000T Gigabit Ethernet
The switch offers 24 ports that support Gigabit Ethernet connections, allowing multiple devices to connect at high speeds.
RJ-45 Connectors
Using standard RJ-45 connectors, the switch ensures compatibility with a wide range of networking devices and cables.
Manageable Features
The switch is manageable, providing administrators with control over network configurations and performance.
Layer 3 Functionality
Layer 3 capabilities enable the switch to make routing decisions based on IP addresses, enhancing network efficiency.
Rack-Mountable and Stackable Design
Designed for rack mounting, the switch occupies 1U of space and offers stacking capabilities for scalability and streamlined management.
Importance of Layer 3 Switches in Network Environments
Layer 3 switches offer several advantages in networking environments:
Enhanced Routing Capabilities
Layer 3 switches can make routing decisions based on IP addresses, improving network efficiency and performance.
Inter-VLAN Routing
Layer 3 switches facilitate inter-VLAN routing, enabling communication between different VLANs within a network.
Better Control over Network Traffic
With Layer 3 capabilities, administrators can implement access control lists (ACLs) for better traffic control and security.
Benefits of Using Cisco WS-C3750G-24T-E Catalyst 3750 SwitchHigh-Speed Connectivity
The switch’s 24 Gigabit Ethernet ports ensure high-speed and reliable connections between devices within the network.
Manageability and Control
With manageable features, administrators have greater control over network configurations and optimizations.
Scalability and Stackability
The switch’s stackable design allows for easy expansion, offering scalability for growing network requirements.
Use Cases for Cisco WS-C3750G-24T-E Catalyst 3750 SwitchEnterprise Networks
Ideal for medium to large enterprises requiring scalable and efficient networking solutions with robust management capabilities.
Data Centers
Suitable for data center environments, providing high-speed connectivity and efficient routing for servers and storage devices.
Campus Networks
In educational or corporate campus setups, the switch efficiently handles multiple connections and offers scalable solutions.
Features and Benefits of Catalyst 3750 Switch
The WS-C3750G-24T-E is a Cisco Catalyst 3750 series switch that has 24 Gigabit Ethernet ports. It is a stackable switch, which means that multiple switches can be connected and managed as a single device, providing increased scalability and ease of management. The switch supports both layer 2 (data link) and layer 3 (network) switching and provides advanced features such as Quality of Service (QoS), VLANs, and link aggregation. It also supports Power over Ethernet (PoE) which allows you to power devices such as IP phones and wireless access points over the Ethernet cables. Additionally, it provides security features such as access control lists (ACLs) and Cisco’s proprietary security features like Cisco TrustSec. This switch has good throughput performance as it supports non-blocking switching architecture which provides wire-speed performance for all the ports.
High-Reliability
The WS-C3750G-24T-E is a Cisco Catalyst 3750 series switch that has 24 Ethernet ports. This switch is designed for enterprise-class access layer switching, providing high availability, scalability, security, and energy efficiency.
One of the key features of this switch is its reliability. It uses a stackable design that allows multiple switches to be connected and managed as a single entity, increasing the overall availability and resiliency of the network. Additionally, the switch uses hardware redundancy and failover mechanisms to minimize downtime in the event of a failure. The switch also supports features such as Link Aggregation Control Protocol (LACP) and Hot Standby Router Protocol (HSRP) to provide additional redundancy at the network layer.
The switch runs on Cisco’s proprietary IOS (Internetwork Operating System) software, which is known for its stability and feature-richness. This software is regularly updated by Cisco to address security vulnerabilities and bugs, further enhancing the switch’s reliability.
General Information about this Cisco WS-C3750G-24T-E
- Manufacturer Cisco
- Model Number or SKU# WS-C3750G-24T-E
- Product Line: Catalyst
- Product Series: 3750
- Product Name: Catalyst 3750G-24T Ethernet Switch
- Product Type: Ethernet Switch
Interfaces/Port
- Total Number of Network Ports: 24
- Number of Stack Ports: 2
- Stack Port: Yes
- Number of Network (RJ-45) Ports: 24
Performance
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard Category 5
- Ethernet Technology: Gigabit Ethernet
- Network Technology:10Base-T
- 10/100/1000Base-T
Network & Communication
- Layer Supported: 3
Management & Protocols
- Manageable Yes
- Management-
- Command-line interface (CLI)
- Cisco Cluster Management Suite (CMS) Software
- CiscoWorks
- IGMP snooping
- Up to 1024 VLANs per switch or stack and up to 128 spanning-tree instances per switch are supported
- 4000 VLAN IDs are supported
- Cisco Group Management Protocol (CGMP)
- RMON
- Trivial File Transfer Protocol (TFTP)
- Web browser setup utility allows one-click initialization for IP addresses and passwords
- SNMP v1, v2c, and v3
Memory
- Standard Memory: 128 MB
- Flash Memory: 16 MB
In summary, the Cisco WS-C3750G-24T-E Catalyst 3750 Switch, featuring 24 ports supporting 10/100/1000T Gigabit Ethernet connections, a manageable Layer 3 functionality, rack-mountable and stackable design, stands as a reliable and scalable networking solution. Its high-speed connectivity, manageability, and Layer 3 capabilities make it suitable for various applications, including enterprise networks, data centers, and campus setups. Cisco’s commitment to robust and manageable networking solutions positions the Catalyst 3750 switch as an essential component in modern and efficient network infrastructures.
