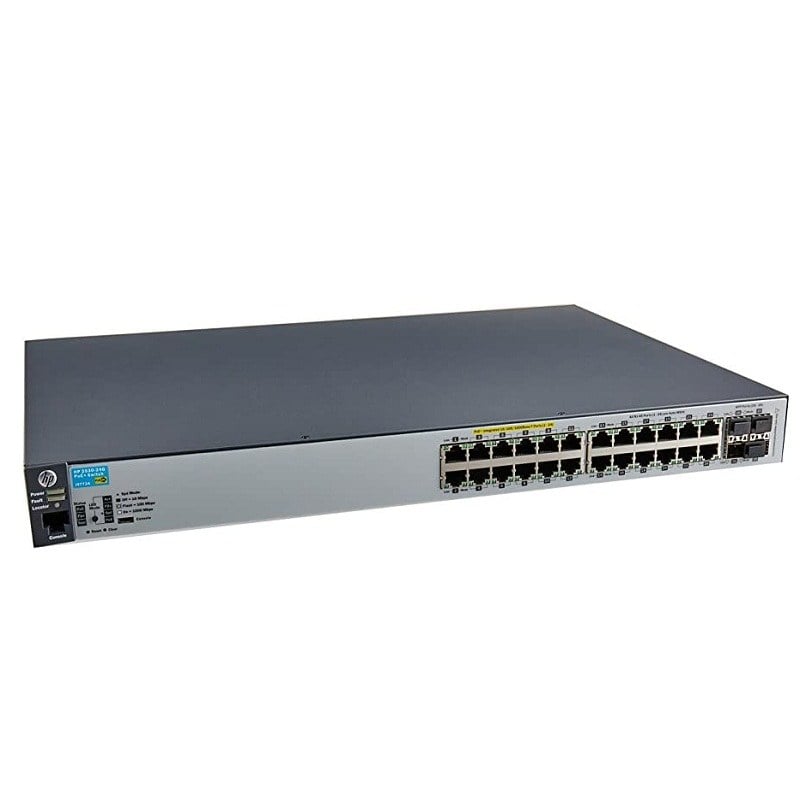

Details Information about this HPE J9779-61101
A managed switch is a network switch that provides advanced network management features such as configuring, monitoring, and controlling network traffic. HPE J9779-61101 2530-24-poe+ Ethernet 24 Port Managed Switch is a highly reliable and scalable managed switch designed for small and medium-sized businesses (SMBs).
The switch supports Power over Ethernet (PoE+) technology, which provides power and data to connected devices over a single Ethernet cable. This eliminates the need for separate power cables and simplifies the installation process.
In this article, we will discuss in detail the features and benefits of the HPE J9779-61101 2530-24-poe+ Ethernet 24 Port Managed Switch.
Key Features of HPE J9779-61101 2530-24-poe+ Ethernet 24 Port Managed Switch
- Power over Ethernet (PoE+) Support The HPE J9779-61101 2530-24-poe+ Ethernet 24 Port Managed Switch supports PoE+ technology, which can deliver up to 30W of power to connected devices. This means that the switch can power devices such as IP phones, wireless access points, and IP cameras without the need for a separate power source. PoE+ technology also enables the switch to automatically detect and provide power only to devices that support it, ensuring safe and efficient operation.
- 24 Ethernet Ports The switch has 24 Ethernet ports that can support data transfer rates of up to 1 Gbps. This allows you to connect multiple devices such as computers, servers, and printers to the switch for faster and more efficient communication.
- Managed Switching The HPE J9779-61101 2530-24-poe+ Ethernet 24 Port Managed Switch is a fully managed switch that provides advanced network management features. These features include VLAN support, QoS (Quality of Service) prioritization, link aggregation, and port mirroring. These features help to optimize network performance and improve security.
- Flexible Deployment Options The switch can be deployed in a variety of configurations to suit your needs. It can be used as a standalone switch or as part of a larger network infrastructure. It also supports multiple deployment options, including desktop, wall-mount, and rack-mount configurations.
- Energy Efficient The HPE J9779-61101 2530-24-poe+ Ethernet 24 Port Managed Switch is designed to be energy efficient, helping to reduce operating costs. The switch features Energy Efficient Ethernet (EEE) technology, which automatically reduces power consumption during periods of low network activity. The switch also features a fanless design, which reduces noise and further lowers power consumption.
Benefits of HPE J9779-61101 2530-24-poe+ Ethernet 24 Port Managed Switch
- Simplified Installation The switch's PoE+ technology eliminates the need for separate power cables, simplifying the installation process. This can save time and reduce the complexity of the installation process.
- Improved Network Performance The switch's advanced management features such as VLAN support and QoS prioritization can help to improve network performance. These features enable you to optimize network traffic and prioritize critical applications, ensuring faster and more efficient communication.
- Enhanced Security The switch's advanced management features such as port mirroring and link aggregation can help to improve network security. Port mirroring enables you to monitor network traffic for suspicious activity, while link aggregation provides redundancy and resilience, ensuring uninterrupted network access.
General Information about this HPE J9779-61101
- Manufacturer: HPE
- Part Number or SKU# J9779-61101
- Product Type: Networking
- Interface Type: Ethernet Switch
Key Features of 24 Ports Switch
- Device Type : Switch - 24 Ports - Managed
- Enclosure Type : Desktop, Rack-mountable, Wall-mountable - 1u
- Ports : 24 X 10/100 + 2 X Gigabit Sfp + 2 X 10/100/1000
- Power Over Ethernet (poe) : Poe+
Performance for Managed Switch
- Throughput : Up To 9.5 Mpps Switching Capacity : 12.8 Gbps
- Capacity : Mac Addresses : 16000
- Mac Address Table Size : 16000 Entries
- Jumbo Frame Support : 9220
- Remote Management Protocol : Snmp 1, Rmon 1, Rmon 2, Rmon 3, Rmon 9, Telnet, Snmp 3, Snmp 2c, Http, Tftp, Ssh-2, Cli
- Encryption Algorithm : Ssl
- Authentication Method : Radius, Tacacs+, Secure Shell V.2 (ssh2)
Features of Ethernet Switch
- Flow Control, Dhcp Support, Bootp Support, Arp Support, Trunking, Vlan Support, Auto-uplink (auto Mdi/mdi-x), Port Mirroring, Ipv6 Support, Half Duplex Mode, Full Duplex Mode, Sntp Support, Sflow, Multiple Spanning Tree Protocol (mstp) Support, Access Control List (acl) Support, Quality Of Service (qos), Stp Root Guard, Lldp Support, Class Of Service (cos), Generic Attribute Registration Protocol (garp)
Compliant Standards
- Ieee 802.3, Ieee 802.3u, Ieee 802.1d, Ieee 802.1q, Ieee 802.3ab, Ieee 802.1p, Ieee 802.3x, Ieee 802.3ad (lacp), Ieee 802.1w, Ieee 802.1x, Ieee 802.1s, Ieee 802.1ab (lldp), Ieee 802.3at, Ieee 802.3az
Memory/Processor
- Processor : 1 X Arm : 800 Mhz
- Ram : 256 Mb - Ddr3 Sdram
- Flash Memory : 128 Mb
Expansion / Connectivity
- Interfaces : 2 X 10base-t/100base-tx/1000base-t - Rj-45 2 X Sfp (mini-gbic) Management : 1 X Console - Rj-45 24 X 10base-t/100base-tx - Rj-45 - Poe
Power
- Power Device : Power Supply
- Voltage Required : Ac 120/230 V ( 50/60 Hz )
Different Types of Switches
Networking switches vary widely depending on the number of devices they can support, network bandwidth/speed, and form factor. Switches for small offices will have anything between 4 and 8 ports and can fit on a desk. For larger office network implementation, switches may have 24 ports, 48 ports, 96 ports, and 128 ports and are rack-mountable between 1U and 4U. Switches come in different types depending on the network speed and tasks they support. These include 40/100 Gbps, 10 Gigabit (up to 10000 Mbps), Gigabit Ethernet (up to 1000 Mbps), Power over Ethernet, and Fast Ethernet (10/100 Mbps).
Unmanaged Switches
The unmanaged switches offer fixed configurations on a plug-and-play basis. It is the most basic switch and there are a few choices in the market. These switches are affordable, but the basic features make them inappropriate for enterprise applications.
Managed Switches
The number of features and level of functionality improves with managed switches, making them ideal for enterprise and business applications. These switches are built with the command-line interface for ease of configuration. Equally, they support SNMP agents that come in handy when troubleshooting network issues.
The security on managed switches is better and will protect different types of traffic. Other features include support for virtual LANs, IP routing, and quality of service settings. Managed switches are more expensive compared to all other types of switches.
Smart Switches
Smart switches refer to switches that possess more features than those unmanaged switches but do not have the full features of managed switches. Smart switches are more cost-effective than managed switches.
Some of the limitations of the smart switches are a lack of telnet access support, Web GUIs, and a lack of many features for VLANs. They are affordable compared to a fully managed switch and are suitable for a smaller computer network.
Modular Switches
Modular switches allow the addition of expansion modules as the network expands. The expansion modules allow for more networked devices but are application-specific. They may include wireless access points, firewalls, or network analysis tools. The flexibility of a modular networking switch comes at a higher cost.
