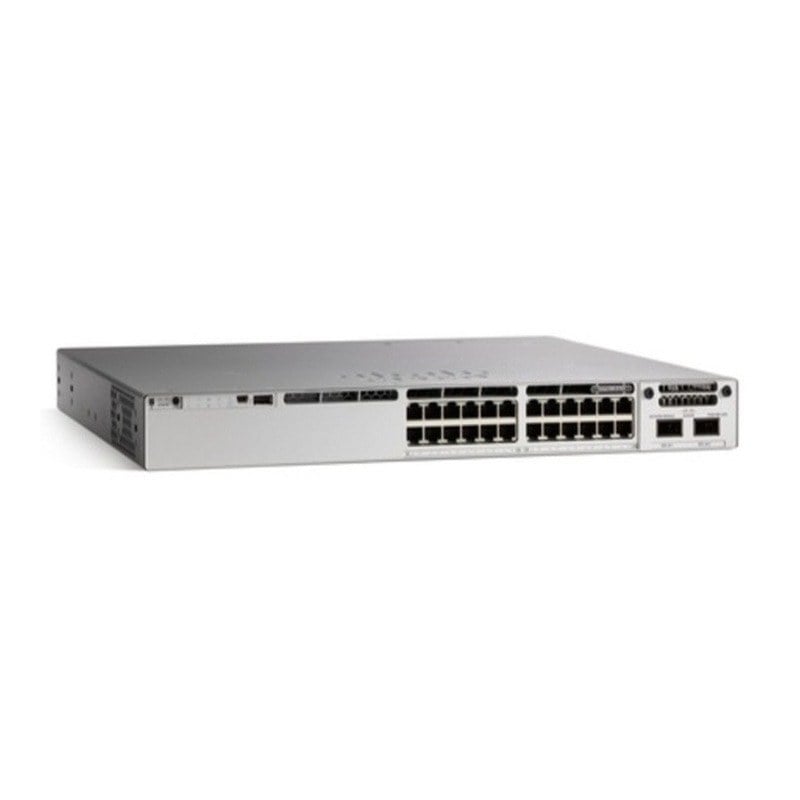

More Information for the Cisco C9300-24U-E 24 Ports Manageable Switch
The Cisco Catalyst 9300 24 Ports Manageable Switch, also known as the C9300-24U-E, is a cutting-edge networking device designed to meet the demands of modern business environments. This switch belongs to the renowned Cisco Catalyst 9300 Series, which is known for its advanced features, reliability, and scalability. In this comprehensive guide, we will delve into the key aspects of the C9300-24U-E switch, exploring its specifications, capabilities, and the benefits it brings to network infrastructure.
Overview of the Cisco Catalyst 9300 Series
The Cisco Catalyst 9300 Series represents a new era in enterprise networking, providing a robust and intelligent foundation for digital transformation. This series is built upon Cisco’s innovative intent-based networking, offering enhanced security, automation, and programmability. The C9300-24U-E switch is a pivotal member of this series, designed to address the connectivity needs of businesses with 24 manageable ports.
Key Features of the C9300-24U-E Switch
- 24 Manageable Ports: The C9300-24U-E switch is equipped with 24 manageable ports, providing ample connectivity for a variety of devices within a network. These ports support both data and power delivery, making them suitable for devices such as IP cameras, phones, and access points.
- Scalability and Flexibility: One of the standout features of the C9300-24U-E switch is its scalability. Businesses can expand their network infrastructure seamlessly by adding additional switches to accommodate growing connectivity requirements. This scalability is complemented by the switch’s flexibility, allowing for easy integration into existing network architectures.
- High Performance: The C9300-24U-E switch is designed for high-performance networking. With advanced hardware and software capabilities, it ensures low latency, high throughput, and reliable connectivity. This is crucial for applications that demand real-time data transfer and minimal delays.
- Intent-based networking (IBN) Capabilities: Cisco’s intent-based networking is a transformative approach that focuses on business outcomes. The C9300-24U-E switch leverages IBN to automate routine tasks, enhance network visibility, and proactively respond to security threats. This leads to improved operational efficiency and a more secure network environment.
- Enhanced Security Features: Security is a top priority in the C9300-24U-E switch. It incorporates a range of security features, including integrated threat defense and trustworthy systems. These features work together to safeguard the network infrastructure, data, and connected devices from potential cyber threats.
- Energy-Efficient Design: The switch is designed with energy efficiency in mind, incorporating features such as Energy-Efficient Ethernet (EEE) and low-power idle modes. This not only reduces the environmental impact but also contributes to cost savings by minimizing power consumption during periods of low network activity.
Use Cases and Applications
The C9300-24U-E switch finds application across various industries and scenarios due to its versatile features. Some notable use cases include:
- Enterprise Networks: In large enterprises, the C9300-24U-E switch can serve as a core component of the network infrastructure, providing connectivity for workstations, servers, and other devices. Its scalability makes it suitable for accommodating the evolving needs of expansive corporate networks.
- Smart Buildings: With the increasing prevalence of IoT devices in smart buildings, the C9300-24U-E switch offers a reliable solution for connecting and powering a multitude of sensors, cameras, and smart devices. Its security features are particularly valuable in environments where data integrity is paramount.
- Education Institutions: Educational institutions benefit from the switch’s scalability and manageability, enabling seamless connectivity for classrooms, administrative offices, and other campus facilities. The high-performance capabilities ensure a smooth online learning experience for students and faculty.
- Healthcare Environments: In healthcare settings, where network reliability and security are critical, the C9300-24U-E switch can play a vital role in connecting medical devices, and workstations, and ensuring the secure transfer of sensitive patient data.
High Performance
The C9300-24U-E Cisco Catalyst 9300 24 Ports Ethernet Switch is a high-performance device that is designed for use in enterprise-level networks. It is built with advanced features and technologies that help to enhance the overall performance of the device.
One of the key features of the part is its support for Cisco DNA, which is a software-driven network architecture that helps to optimize network performance and security. The switch also supports Cisco Application Visibility and Control (AVC), which allows administrators to monitor and control network traffic based on application and user behavior.
The switch also supports high-speed network connectivity, with support for 10G and 40G Ethernet ports. This allows for faster data transfer and improved overall network performance. Additionally, the switch supports advanced features such as Quality of Service (QoS), VLANs, and Link Aggregation Control Protocol (LACP), which help to enhance the overall performance and reliability of the device.
Exceptional Reliability
The C9300-24U-E Cisco Catalyst 9300 24 Ports Ethernet Switch is a highly reliable device that is designed for use in enterprise-level networks. The switch is built with high-quality components and is designed to handle heavy network traffic, making it suitable for use in data centers and other high-density environments.
One of the key features of the product is its support for Cisco IOS, which is known for its stability and reliability. The switch also supports redundancy, which ensures that the device continues to function even in the event of a failure in one of the components. Additionally, the switch is equipped with a variety of advanced features, such as Quality of Service (QoS), VLANs, and Link Aggregation Control Protocol (LACP), which help to enhance the overall performance and reliability of the device.
The product also supports network virtualization technologies such as Cisco Application Centric Infrastructure (ACI) and Cisco SD-Access which allows a more efficient use of the network resources and improves reliability.
General Information about this Cisco C9300-24U-E
- Manufacturer: Cisco
- Model Number or SKU# C9300-24U-E
- Product Type: Ethernet Switch
- Product Line: Catalyst
Interfaces/Ports
- Total Number of Network Ports: 24
- Uplink Port: Yes
- Modular: No
- Stack Port: Yes
- Port/Expansion Slot Details: 24 x Gigabit Ethernet Network
Performance of Ethernet Switch
- Media Type: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Layer Supported: 2
- Manageable: Yes
Management & Protocols
- Routing Protocol: OSPF, IS-IS, RIP-1, RIP-2, EIGRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
- Remote Management Protocol: SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
- Encryption Algorithm: 128-bit AES
Capacity
- IPv4 routing table entries: 32,000
- IPv6 routing table entries: 16,000
- Flexible NetFlow entries: 64,000
- VLAN IDs: 4,000
- Switched virtual interfaces (SVIs): 2,000
- MAC Address Table Size: 32,000 entries
- Jumbo Frame Support: 9,198 bytes
Power Description
- Power Device: Internal power supply – hot-plug
- Installed Qty: 1 (installed) / 2 (max)
- Power Redundancy: Optional
- Power Provided: 1,100 Watt
- Voltage Required: AC 120/230 V (50 – 60 Hz)
- Power Source: Power Supply
- Redundant Power Supply Supported: No
Features
- Trunking, full duplex mode
- Class-Based Weighted Fair Queuing (CBWFQ)
- Weighted Random Early Detection (WRED)
- Spanning Tree Protocol (STP) support
- Access Control List (ACL) support
- Quality of Service (QoS)
- Non-Stop Routing (NSR)
- Remote Switch Port Analyzer (RSPAN)
- Management Information Base (MIB)
- Cisco StackWise-480 technology
- Cisco StackPower technology
- Flexible NetFlow (FNF)
- 802.1x authentication
- 16MB packet buffer
- FTP client
- 3 fans
- Control plane protection (CoPP)
- Virtual Extensible LAN (VXLAN)
- Source-Specific Multicast (SSM)
- Integrated Wireshark
- VLAN Double Tagging (Q-in-Q)
- Ethernet over MPLS (EoMPLS)
- Hierarchical Virtual Private LAN Service (H-VPLS)
- Private VLAN
- Encapsulated Remote SPAN (ERSPAN)
- Security Group Access Control List (SGACL)
- IT Service Management (ITSM) integration
Expansion/Connectivity
- Interfaces: 48 x 1000Base-T RJ-45 UPOE, 1 x USB 2.0
- Expansion Slots: 1 (total) / 1 (free) x expansion slot
Compliant Standards
- CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, CAN/CSA C22.2 No. 60950-1, VCCI Class A, EN 300386, EN 55022 Class A, FCC CFR47 Part 15 A, TVCN 7317, VCCI V-3/2009 Class A
Software/System Requirements
- OS Required: Cisco IOS Universal
Environmental Parameters
- Min Operating Temperature: 23 °F
- Max Operating Temperature: 113 °F
- Humidity Range Operating: 5 – 90% (non-condensing)
- Min Storage Temperature: 158 °F
- Max Storage Temperature: 104 °F
- Humidity Range Storage: 5 – 90% (non-condensing)
In general, the Cisco Catalyst 9300 24 Ports Manageable Switch (C9300-24U-E) stands as a powerful and versatile solution for modern networking challenges. With its advanced features, scalability, and security capabilities, this switch addresses the connectivity needs of diverse industries, ranging from large enterprises to educational institutions and healthcare facilities. As businesses continue to embrace digital transformation, the C9300-24U-E switch provides a reliable foundation for building robust and secure network infrastructures. When deployed thoughtfully and configured to meet specific requirements, this Cisco switch becomes a key enabler of efficient and resilient networking environments.
