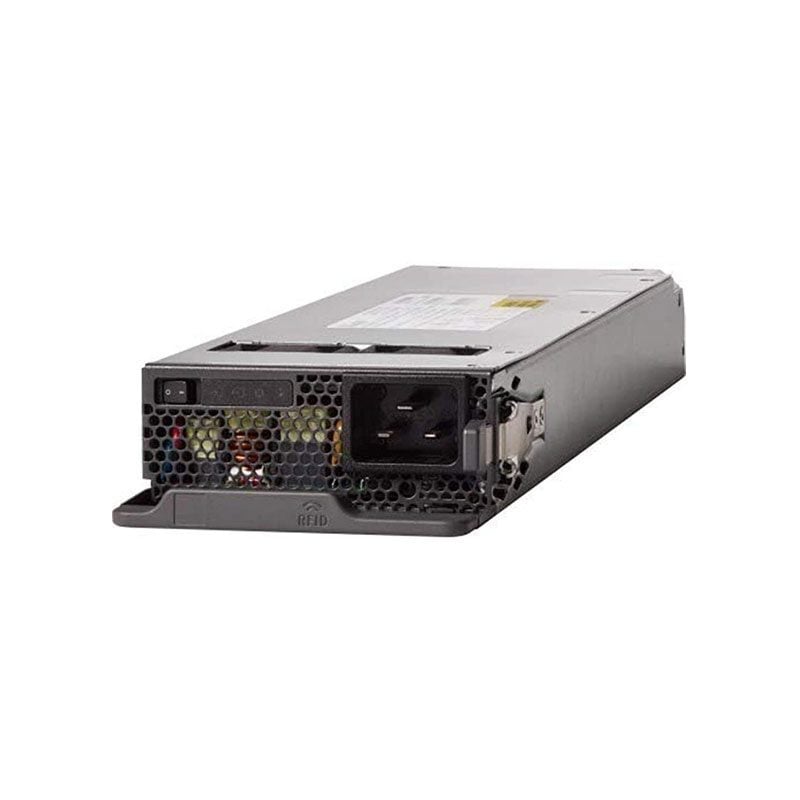

Overview of the Cisco PWR-C6-125WAC 125 Watts AC Power Supply
The Cisco PWR-C6-125WAC Config 6 is a robust power supply module engineered to meet the demanding power requirements of the Catalyst 9200 Series switches. As an integral component of the Cisco Catalyst 9200 Series, this power supply module plays a crucial role in ensuring the availability and reliability of power to support the continuous and efficient functioning of network infrastructure.
Input Voltage 100-240V AC
The versatility of the Cisco PWR-C6-125WAC Config 6 is highlighted by its wide input voltage range of 100-240V AC. This flexibility allows the power supply to adapt to different voltage environments, making it suitable for deployment in various regions with different power standards.
Output Power 125 Watts
The power supply boasts a robust power output of 125 Watts, providing ample energy to support the demanding requirements of modern networking equipment. This ensures that the Catalyst 9200 Series switches operate optimally, even in high-traffic and resource-intensive environments.
Plug-and-Play Module
Simplicity in deployment is a key consideration for any network administrator. The Config 6 power supply is designed as a plug-in module, streamlining the installation process. This plug-and-play functionality reduces the complexity of setup and minimizes the time required to integrate the power supply into the Catalyst 9200 Series switches. The plug-and-play nature of the module simplifies the deployment process, making it accessible even for users with limited technical expertise. This user-friendly design aligns with Cisco’s commitment to providing solutions that are both powerful and easy to manage.
High Availability
The redundant hot plug capability ensures high availability by eliminating single points of failure. In the event of a power supply unit malfunction, the system seamlessly switches to the redundant unit, preventing disruptions and maintaining continuous operation.
Redundancy for Reliability
Redundancy is a critical aspect of any reliable network infrastructure. The Config 6 power supply is designed with redundancy in mind, offering a hot-plug capability. This means that if one power supply unit fails, the redundant unit seamlessly takes over, preventing any downtime and ensuring continuous operation.
Energy Efficiency
With a power output of 125 Watts, the Config 6 power supply strikes a balance between providing sufficient energy for the Catalyst 9200 Series switches and ensuring energy efficiency. This is crucial in today’s eco-conscious environment, where businesses are increasingly focused on minimizing their carbon footprint.
Versatility in Deployment
The wide input voltage range (100-240V AC) makes the Config 6 power supply versatile and suitable for deployment in various locations globally. This adaptability simplifies the logistics of network infrastructure planning and implementation.
Hot-plug Capability
The hot plug feature allows the power supply module to be replaced or added without shutting down the entire system. This not only simplifies maintenance and upgrades but also contributes to the overall system reliability. The hot plug capability minimizes downtime, a crucial factor for businesses with stringent uptime requirements.
Benefits
The PWR-C6-125WAC Cisco Catalyst 9200 AC Power Supply is designed to provide reliable and efficient power to the Cisco Catalyst 9200 series of network switches. It has a maximum power draw of up to 100 watts, providing sufficient power to the switch and its peripherals. The power supply is hot-swappable, which means it can be replaced without having to power off the switch. This feature ensures minimal downtime and minimal disruption to network operations. The power supply also has a feature of power redundancy, which means it can be used as a backup power supply to another power supply. It means that if one power supply fails, the other power supply will automatically take over and keep the switch running without interruption. It also has a feature called Power-on Self-Test (POST) which is a diagnostic testing sequence that the switch runs through each time it is powered on. This helps to ensure that the power supply is functioning properly and that the switch can operate at optimal performance levels.
Use Cases of Catalyst 9200 Series Power Supply
To better understand the practical applications of the Cisco PWR-C6-125WAC Config 6, let’s explore a few use cases where this power supply shines.
Enterprise Networking
In large enterprise networks where reliability and high performance are paramount, the Config 6 power supply provides the necessary redundancy and power output to support the Catalyst 9200 Series switches. This ensures uninterrupted connectivity for critical business operations.
Data Centers
Data centers, with their high-density networking equipment, require power solutions that can handle the demands of constant data transmission and processing. The Config 6 power supply’s hot plug redundancy and energy efficiency make it an ideal choice for data center environments.
Remote Locations
For businesses with a global footprint or those operating in remote locations with varying power standards, the Config 6 power supply’s wide input voltage range proves invaluable. It allows for consistent and reliable power delivery, regardless of the regional power specifications.
Resiliency and High Availability
The model Cisco Catalyst 9200 AC Power Supply is designed to provide resiliency and high availability for the Cisco Catalyst 9200 series of network switches.
One of the key features that contribute to the power supply’s resiliency is its hot-swappable design. This means that the power supply can be replaced without having to power off the switch. This minimizes downtime and helps to ensure that the switch remains operational even in the event of a power supply failure.
Another important feature is the power redundancy, which means that the PWR-C6-125WAC can be used as a backup power supply to another power supply, providing an extra layer of protection for the switch in case of a power supply failure. This ensures that the switch remains operational even in the event of a power supply failure.
The power supply also supports Energy Efficient Ethernet (EEE), which can help lower power consumption during periods of low data activity. This can help prolong the life of the power supply and increase overall system uptime.
General Information for the Cisco PWR-C6-125WAC Power Supply
- Manufacturer: Cisco
- Part Number or SKU# PWR-C6-125WAC
- Product Type: Power Supply
Power Device for Power Adapter
- Power Adapter: Switching PSU
- Input Voltage: AC
- Power Capacity: 125 Watt
Compatibility Information
- Cisco Catalyst 9200 (125 Watt)
Finally, the Cisco PWR-C6-125WAC Config 6 plays a pivotal role in ensuring the reliable and efficient operation of Catalyst 9200 Series switches. With its 125 Watts power output, hot-plug redundancy, wide input voltage range, and plug-and-play functionality, it addresses the diverse needs of modern networking environments.
Network administrators looking to enhance the resilience and performance of their infrastructure can benefit from the Config 6 power supply’s high availability, energy efficiency, versatility, and seamless integration. By understanding its features, benefits, and use cases, organizations can make informed decisions to support their networking requirements.
As technology continues to advance, Cisco remains at the forefront of innovation, providing solutions that empower businesses to thrive in an interconnected world. The Cisco PWR-C6-125WAC Config 6 exemplifies this commitment, offering a reliable and robust power supply solution for the Catalyst 9200 Series.
