Product Overview of the Cisco 24 Ports Ethernet Switch
In the rapidly evolving landscape of networking technology, the Cisco SG550X-24P-K9-NA emerges as a powerful and versatile solution for businesses seeking efficient and reliable connectivity. This 24-port Gigabit PoE+ switch is not only equipped with advanced features but also offers stackable capabilities, making it a compelling choice for organizations with expanding networking needs.

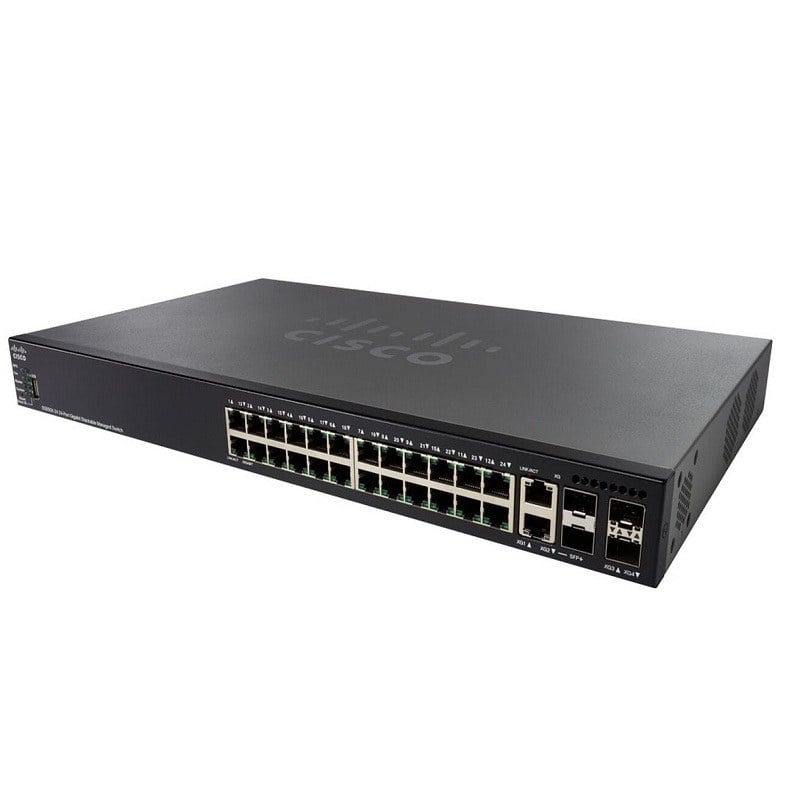

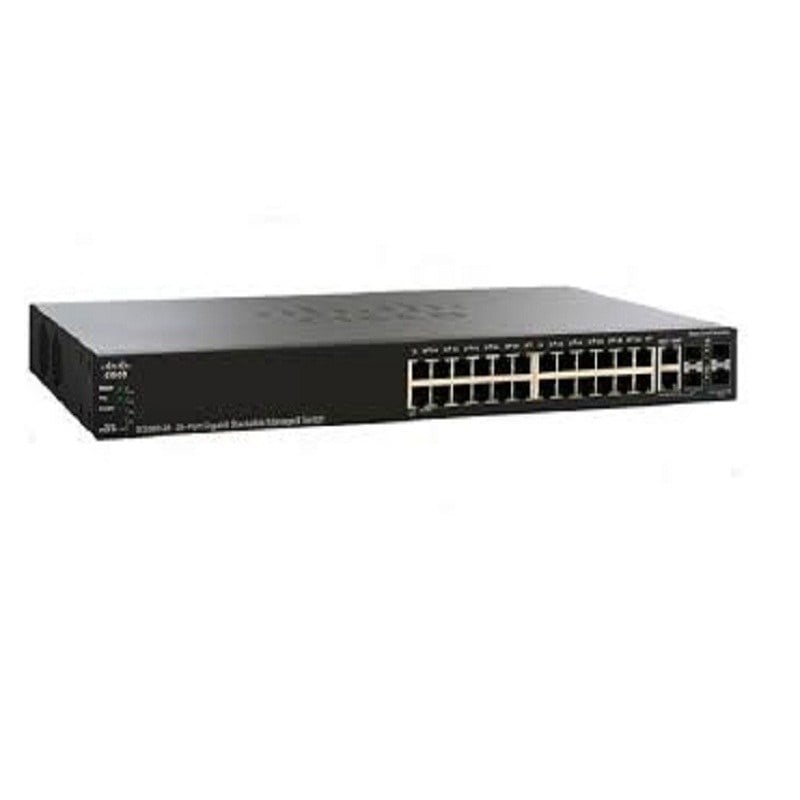

Cisco SG550X-24P-K9-NA24 Ports Switch
The Cisco SG550X-24P-K9-NA boasts 24 ports, each capable of supporting Gigabit Ethernet. This abundance of ports provides businesses with the flexibility to connect a multitude of devices, from computers and servers to IP cameras and VoIP phones.
Power over Ethernet Plus (PoE+)
One standout feature of this switch is its Power over Ethernet Plus capability. PoE+ enables the switch to deliver both data and electrical power over Ethernet cables to connected devices, eliminating the need for separate power sources. This is particularly advantageous for devices like IP cameras and wireless access points that can be conveniently powered through the same cable that connects them to the network.
Stackable Design
The stackable design of the Cisco SG550X-24P-K9-NA is a game-changer for businesses aiming for scalability. Stackable switches allow multiple units to be connected and managed as a single entity. This not only simplifies administration but also enhances performance by providing increased bandwidth and redundancy.
Layer 3 Routing Capabilities
This switch goes beyond basic Layer 2 functionality, offering Layer 3 routing capabilities. This allows for more advanced network configurations, including inter-VLAN routing, enhancing the overall efficiency and performance of the network.
High PoE Power Budget
With a robust PoE power budget, this switch can adequately power a significant number of PoE devices simultaneously. This is crucial for businesses deploying a multitude of powered devices, ensuring that power demands are met without compromising performance.
Energy-Efficient Design
Cisco is committed to environmental sustainability, and the SG550X-24P-K9-NA reflects this with its energy-efficient design. It incorporates features such as energy detection and cable length detection to optimize power consumption, contributing to lower operational costs.
Key FeaturesHigh Performance
The Cisco SG550X-24P-K9-NA is engineered for high performance, ensuring seamless data transfer and low latency. This is crucial for applications that demand real-time communication, such as voice and video conferencing.
Security Features
Security is a top priority in any network environment, and this switch doesn’t disappoint. With features like access control lists (ACLs) and port security, the Cisco SG550X-24P-K9-NA helps businesses protect their network from unauthorized access and potential security threats.
Quality of Service (QoS)
For businesses that prioritize certain types of network traffic over others, Quality of Service (QoS) is a critical consideration. The switch’s QoS capabilities allow for the prioritization of traffic, ensuring that mission-critical applications receive the necessary bandwidth for optimal performance.
Use CasesSmall to Medium-sized Businesses (SMBs)
For SMBs with growing networking needs, the Cisco SG550X-24P-K9-NA provides an excellent balance of performance, scalability, and cost-effectiveness. Its stackable design makes it easy to expand the network infrastructure as the business evolves.
Surveillance Systems
With its PoE+ capabilities, this switch is an ideal choice for businesses implementing surveillance systems. It can power IP cameras and provide a reliable and high-speed connection for transmitting video data.
VoIP Deployments
Businesses relying on Voice over Internet Protocol (VoIP) systems can benefit from the QoS features of the Cisco SG550X-24P-K9-NA. It ensures that voice traffic is prioritized, guaranteeing clear and uninterrupted communication.
Performance Evaluation
Throughput and Latency
The Cisco SG550X-24P-K9-NA demonstrates impressive throughput, ensuring that data can move seamlessly through the network. Additionally, low latency levels contribute to a responsive and efficient network, critical for real-time applications.
PoE Reliability
With 24 PoE+ ports and a substantial power budget, the switch delivers reliable power to connected devices. This is particularly advantageous in scenarios where a multitude of PoE-enabled devices, such as surveillance cameras and IP phones, need to be powered without compromise.
Scalability and Stackability
The stackable nature of this switch allows businesses to scale their networks easily. Adding more switches to the stack is a straightforward process, providing a practical solution for expanding network requirements.
Layer 3 Routing Performance
The inclusion of Layer 3 routing capabilities enhances network performance by allowing for more efficient routing between VLANs. This is especially beneficial for organizations with complex network architectures.
Use Cases
Small to Medium-sized Businesses (SMBs)
The Cisco SG550X-24P-K9-NA is an ideal choice for SMBs that require a reliable and scalable network infrastructure. With its 24 ports of 1Gbps connectivity and PoE support, it can easily accommodate the networking needs of a growing business.
Surveillance Systems
Businesses or institutions deploying surveillance systems can benefit from the switch’s PoE capabilities. It can efficiently power multiple IP cameras, simplifying the installation process and providing a centralized and easily manageable solution.
VoIP Deployments
In Voice over Internet Protocol (VoIP) deployments, where phones are powered through the Ethernet cable, the PoE+ support of this switch is invaluable. It ensures a streamlined and efficient setup for VoIP communication systems.
Flexible Network Expansion
The stackable design makes the Cisco SG550X-24P-K9-NA suitable for organizations with dynamic and evolving network requirements. As the business grows, additional switches can be seamlessly added to the stack, facilitating a smooth expansion process.
General Information about the Cisco SG550X-24P-K9-NA
- Manufacturer: Cisco
- Model Number or SKU# SG550X-24P-K9-NA
- Product Series: 550X
- Product Type: Layer 3 Switch
Interfaces and Ports of Layer 3 Switch
- Total Number of Network Ports: 24
- Uplink Port: Yes
- Modular: Yes
- Stack Port: Yes
Port Details
- 4 x 10 Gigabit Ethernet Expansion Slot
- 2 x 10 Gigabit Ethernet Uplink
- 24 x Gigabit Ethernet Network
Performance
- Forwarding Performance (64-byte packet size): 95.23 Mpps
- Switching Capacity: 128 Gbps
- MAC Address Table Size: 16K entries
- Jumbo Frame Support: 9216 bytes
Media Type & Technical Information
- Media Type Supported: Twisted Pair, Optical Fiber
- Ethernet Technology: 10 Gigabit Ethernet, Gigabit Ethernet
- Network Technology: 10GBase-T, 10/100/1000Base-T, 10GBase-X
I/O Expansions
- Number of Total Expansion Slots: 4
- Expansion Slot Type: SFP+
- Shared SFP Slot: Yes
- Number of SFP+ Slots: 4
Memory
- RAM: 256 MB
- Flash Memory: 32 MB
Network & Communication
- Layer Supported: 3
Management & Protocols
- Manageable: Yes
- Networking Protocol: PoE+
- Routing Protocol: Static IP routing
- Remote Management Protocol: SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS
Power Description
- Power Source: Power Supply
- PoE Budget: 195W
- Power: 100 – 240V 47 – 63 Hz, internal, universal
- Consumption: 110V=49.4W, 220V=50.1W
- Redundant Power Supply Supported: No
Miscellaneous
- Package Contents:
- SG550X-24P Layer 3 Switch
- Power Cord
- Cables Included: 1 x serial cable
- Rack Mounting Kit Included
- MTBF: 299,949 hours
- CD-ROM with User Documentation (PDF)
- Quick Start Guide
Compliant Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Finally, the Cisco SG550X-24P-K9-NA 24 Ports 1Gbps Switch Gigabit PoE+ Stackable is a robust networking solution that combines high-performance features with advanced security and management capabilities. Its versatility makes it suitable for a range of applications, from enterprise networks to IP surveillance and VoIP deployments. By investing in this switch, businesses can ensure a reliable and scalable networking infrastructure that meets the demands of today and is prepared for the challenges of tomorrow.
