Description

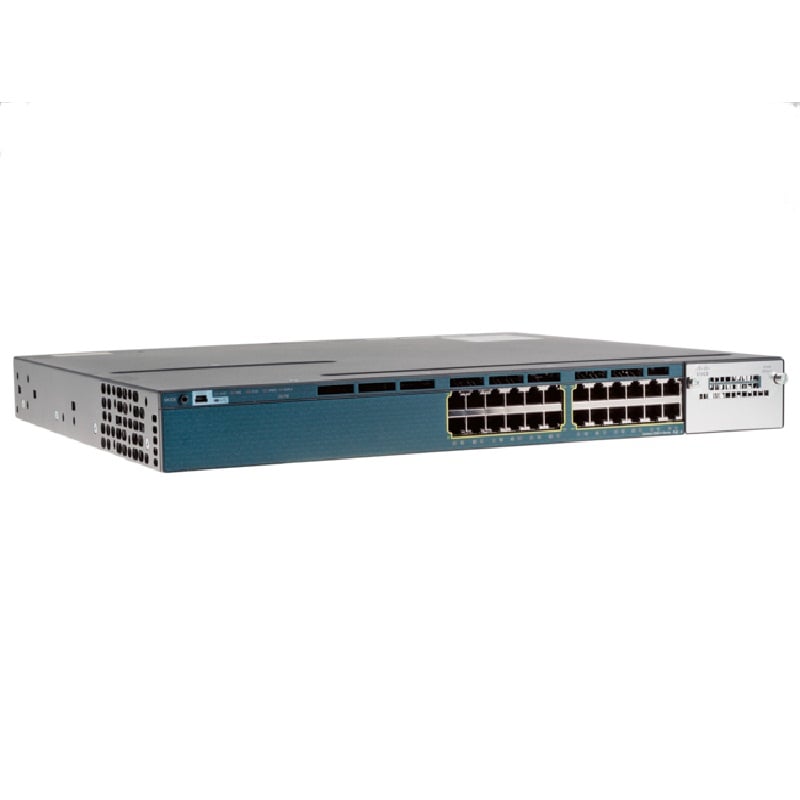

Product Details for the Cisco WS-C3560X-24P-S 24-Port Ethernet Switch
In the realm of networking, the Cisco WS-C3560X-24P-S stands as a prominent player, offering a sophisticated solution for businesses and organizations seeking a robust and manageable network switch. This description delves into the intricacies of the Cisco WS-C3560X-24P-S, exploring its key features, specifications, and the benefits it brings to the table.
24 Ports for Enhanced Connectivity
The WS-C3560X-24P-S boasts 24 ports, providing a plethora of options for connecting devices to the network. These ports support various data transfer rates, including 10Base-T, 100Base-TX, and 1000Base-T, making the switch versatile enough to accommodate a wide array of devices with different speed requirements.
Power Over Ethernet Plus (PoE+)
One of the standout features of this switch is its Power Over Ethernet Plus capability. This functionality allows the switch to deliver both data and electrical power over the Ethernet cables to connected devices, such as IP cameras, VoIP phones, and wireless access points. This eliminates the need for additional power sources, streamlining the deployment of devices and reducing cable clutter.
Layer 2 Functionality
The WS-C3560X-24P-S operates at Layer 2 of the OSI model, focusing on data link layer functionality. This layer is responsible for creating a reliable link between two directly connected nodes, ensuring seamless communication within the local network.
1U Form Factor for Space Efficiency
The switch is designed to be rack-mountable, occupying a mere 1U of space. This compact form factor is ideal for businesses with limited space in their network cabinets. The ability to mount the switch in a standard rack ensures efficient utilization of space while maintaining a neat and organized networking infrastructure.
Management Interface
Cisco understands the importance of user-friendly interfaces, especially when dealing with complex networking equipment. The WS-C3560X-24P-S comes equipped with a management interface that simplifies the configuration and monitoring processes. Whether you are an experienced network administrator or a novice, the intuitive interface ensures ease of use.
Remote Management Capabilities
In today’s dynamic business environment, the ability to manage network devices remotely is crucial. The WS-C3560X-24P-S supports remote management, allowing administrators to configure and monitor the switch from a central location. This feature enhances flexibility and efficiency, particularly in large-scale deployments.
Protecting the Network Ecosystem
Security is a top priority in the digital landscape, and the WS-C3560X-24P-S incorporates a range of security features to safeguard the network ecosystem. From access control lists (ACLs) to port security, the switch provides administrators with the tools needed to control and monitor access, mitigating potential security threats.
High Reliability for Uninterrupted Connectivity
Cisco is synonymous with reliability, and the WS-C3560X-24P-S is no exception. The switch is engineered to deliver high levels of reliability, ensuring uninterrupted connectivity for critical business operations. Redundancy features, such as hot-swappable power supplies and fans, contribute to the switch’s robust design.
Adapting to Changing Network Demands
As businesses evolve, so do their networking requirements. The WS-C3560X-24P-S is designed with scalability in mind, allowing organizations to expand their network infrastructure seamlessly. Additional switches can be integrated into the existing setup, creating a scalable network that grows with the demands of the business.
Benefits of Cisco WS-C3560X-24P-S Layer 2 Switch
- Simplified Deployment: The PoE+ functionality simplifies the deployment of network devices by eliminating the need for separate power sources. This is particularly advantageous in scenarios where running additional power cables is impractical.
- Versatility in Connectivity: With support for various Ethernet speeds (10/100/1000 Mbps), the switch accommodates a wide range of devices, from legacy systems to modern high-speed connections. This versatility makes it adaptable to different networking environments.
- Enhanced Security: As a Layer 2 switch, the WS-C3560X-24P-S contributes to network security by facilitating the implementation of VLANs. This helps in segmenting the network and controlling broadcast domains, thereby minimizing security risks.
- Space-Efficient Design: The 1U rack-mountable design makes efficient use of physical space in network cabinets or data center racks. This compact form factor is crucial in environments where space optimization is a priority.
- Comprehensive Management Options: The switch’s management interfaces, including web-based GUI, CLI, and SNMP support, empower network administrators with flexible and powerful tools to configure and monitor the network.
Performance of Catalyst 3560X Switch
The WS-C3560X-24P-S is a Cisco Catalyst 3560-X Series switch that has 24 ports. It is a fixed-configuration, stackable switch that provides enterprise-class access for branch offices and medium-sized businesses. The switch is equipped with Gigabit Ethernet ports that support both copper and fiber-optic connections and also supports Power over Ethernet (PoE) for powering devices such as IP phones and wireless access points. The switch also provides advanced security features and Quality of Service (QoS) capabilities to help ensure that network traffic is handled efficiently and effectively. Additionally, the switch supports EnergyWise technology which helps to reduce energy consumption and lower the cost of network ownership.
Compliant Standards
The WS-C3560X-24P-S Cisco Catalyst 3560-X Series 24 Ports Switch is compliant with some industry standards. These standards ensure that the switch operates consistently and reliably and that it is compatible with other networking equipment.
- IEEE 802.3: This standard defines the physical and data link layers of the OSI model for Ethernet networks. It specifies the frame format, media access control (MAC) address, and physical layer specifications for Ethernet networks.
- IEEE 802.3u: This standard defines the physical layer specifications for Fast Ethernet networks, which provide a data rate of 100 Mbps.
- IEEE 802.3x: This standard defines the flow control mechanism for Ethernet networks, which allows the switch to control the rate at which data is transmitted.
- IEEE 802.1D: This standard defines the Spanning Tree Protocol (STP), which is used to prevent loops in a network.
- IEEE 802.1Q: This standard defines Virtual LANs (VLANs), which allow the switch to segment a network into multiple logical subnets.
- IEEE 802.1p: This standard defines the Priority Code Point (PCP) field in the VLAN tag, which allows the switch to prioritize different types of traffic.
- IEEE 802.1w: This standard defines the Rapid Spanning Tree Protocol (RSTP), which is an improved version of STP that allows for faster convergence in the event of a topology change.
- IEEE 802.1x: This standard defines the Port-Based Network Access Control (PNAC) mechanism, which allows the switch to authenticate users before allowing them to access the network.
- IEEE 802.3ad: This standard defines Link Aggregation Control Protocol (LACP), which allows the switch to aggregate multiple physical links into a single logical link, providing increased bandwidth and redundancy.
General Information about this Cisco WS-C3560X-24P-S Ethernet Switch
- Manufacturer: Cisco
- Part Number or SKU# WS-C3560X-24P-S
- Product Line: Catalyst
- Product Series: 3560-X
- Product Type: Ethernet Switch
Technical Information
- Total Ports: 24
- Token Ring Port: No
- LRE Port: No
- USB: Yes
- PoE Ports: 24 (RJ-45)
I/O Expansions
- Total Expansion Slots: 2
- Expansion Slot Details: 24 x Gigabit Ethernet Network
Media & Performance
- Ethernet Technology: Gigabit Ethernet, Fast Ethernet
- Network Technology: 10/100/1000Base-T
Network Support
- Layer Supported: 2
Management & Protocols
- Manageable: Yes
- Protocols: CLI, DHCP, VLAN, QoS, SNMP v1,2c,3, RMON
Networking
- Virtual Interfaces (VLANs): 1005
- Jumbo Frame Support: 9216 bytes
- Routing Protocol: RIP-1, RIP-2, HSRP, static IP routing, RIPng
- Remote Management Protocols: SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI
- Authentication Methods: Kerberos, Secure Shell (SSH), RADIUS, TACACS+
- Compliant Standards: IEEE 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.1ae
Expansion / Connectivity
- Interfaces: 24 x 10Base-T/100Base-TX/1000Base-T (RJ-45), 1 x USB Type A, 1 x console – mini-USB Type B management, 1 x RS-232 – RJ-45 management, 1 x 10Base-T/100Base-TX – RJ-45 management
- Expansion Slots: 1 (total) / 1 (free) x expansion slot
Memory
- Standard Memory: 256 MB
- Memory Technology: DRAM
- Flash Memory: 128 MB
Power Description
- PoE (RJ-45) Port: Yes
- Power Source: Power Supply
- Power Redundancy: Optional
- Voltage Required: AC 120/230 V
- Frequency Required: 50/60 Hz
- Redundant Power Supply Supported: Yes
Environmental Parameters
- Min Operating Temperature: 23 °F
- Humidity Range Operating: 5 – 95% (non-condensing)
- Min Storage Temperature: -40 °F
- Max Storage Temperature: 158 °F
In summary, the Cisco WS-C3560X-24P-S is a feature-rich, reliable, and scalable network switch that caters to the diverse needs of modern businesses. From its 24 versatile ports and PoE+ capability to its Layer 2 functionality and user-friendly management interface, this switch embodies Cisco’s commitment to excellence in networking solutions. Whether you are establishing a new network or upgrading an existing one, the WS-C3560X-24P-S stands as a compelling choice for organizations seeking a robust and efficient networking infrastructure.
