Description
Key Features and Benefits

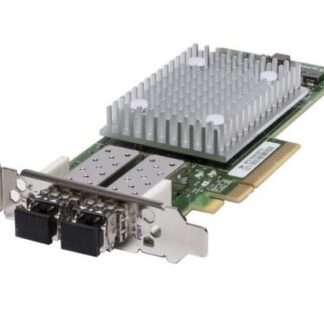

- High-speed connectivity: The Dell Sanblade 32GB Dual Ports PCI-E SFP+ Fiber Channel Host Bus Adapter provides fast and reliable connectivity with speeds up to 20Gbps per port.
- Dual port design: This adapter features dual ports for maximum connectivity, providing the ability to connect to multiple devices simultaneously.
- Large memory capacity: With 32GB of onboard cache memory, the adapter provides ample memory to support high-performance applications and demanding workloads.
- PCI-E interface: The adapter utilizes the PCI-Express 3.0 x8 interface, ensuring high-speed and low-latency data transfer.
- SFP+ transceiver support: The adapter supports 1Gbps and 10Gbps SFP+ transceivers, making it compatible with a wide range of devices and networks.
- Operating system support: The adapter is compatible with multiple operating systems including Microsoft Windows Server, Red Hat Enterprise Linux, SuSE Linux Enterprise Server, and VMware vSphere.
- Native FC drivers: The adapter comes with native FC drivers for Microsoft Windows and VMware vSphere, providing seamless integration and ease of use.
- Robust performance: With a dual port design, large memory capacity, and fast connectivity, the adapter delivers robust performance for demanding applications and workloads.
Host Interface and PCI-E Support
- Host Interface: PCI Express 3.0 x8
- Fibre Channel Interfaces: Dual ports, auto-sensing 2/4/8Gbps Fibre Channel
- SFP+ Transceiver Support: 1Gbps and 10Gbps SFP+ transceivers
- Data Transfer Rate: Up to 20Gbps per port
- Operating System Support: Microsoft Windows Server 2008 R2, 2012, 2012 R2, and 2016; Red Hat Enterprise Linux 5.x, 6.x, and 7.x; SuSE Linux Enterprise Server 10, 11, and 12; VMware vSphere 5.1, 5.5, 6.0, and 6.5
- Maximum Number of Devices: Up to 2,048 devices
- Memory: 32GB onboard cache memory
- Driver Support: Native FC drivers for Microsoft Windows and VMware vSphere; LINUX and RHEL drivers
- Dimensions: 6.6 x 6.6 x 0.75 in. (167.6 x 167.6 x 19 mm)
- Weight: 0.52 lbs (0.24 kg)
Operating System Compatibility
The operating system compatibility for the Dell Sanblade 32GB Dual Ports PCI-E SFP+ Fiber Channel Host Bus Adapter (403-BBMR) includes:
- Microsoft Windows Server 2008 R2, 2012, 2012 R2, and 2016
- Red Hat Enterprise Linux 5.x, 6.x, and 7.x
- SuSE Linux Enterprise Server 10, 11, and 12
- VMware vSphere 5.1, 5.5, 6.0, and 6.5.
General Information
- Manufacturer: Dell
- MPN: 403-BBMR
- Type: Controller
- Controller Type: Fiber Channel
- SKU: 403-BBMR
Technical Information
- Device Type: Host Bus Adapter
- Form Factor: Plug-in Card – Low Profile
- Interface (Bus) Type: PCI Express 3.0 X8
- PCI Specification Revision: PCIE 3.1
Networking
- Ports: 32GB Fiber Channel X 2
- Connectivity Technology: Wired
- Data Link Protocol: 32GB Fiber Channel
- Fiber Channel: FC-GS-2, FC-GS-3, FC-TAPE, FCP-2, FC-PI-5, SCSI-FCP, FC-PI-6
- Data Transfer Rate: 32 GBPS
- Max Transfer Distance: 623 Ft
- Capacity: Concurrent Logins: 2048 Active Exchanges: 2048
- Remote Management Protocol: SMI-S, Cli
Expansion / Connectivity
- Interfaces: 2 X 32GB Fiber Channel – SFP+
