Description
Product Details of D3X2V Dell 6GB Megaraid

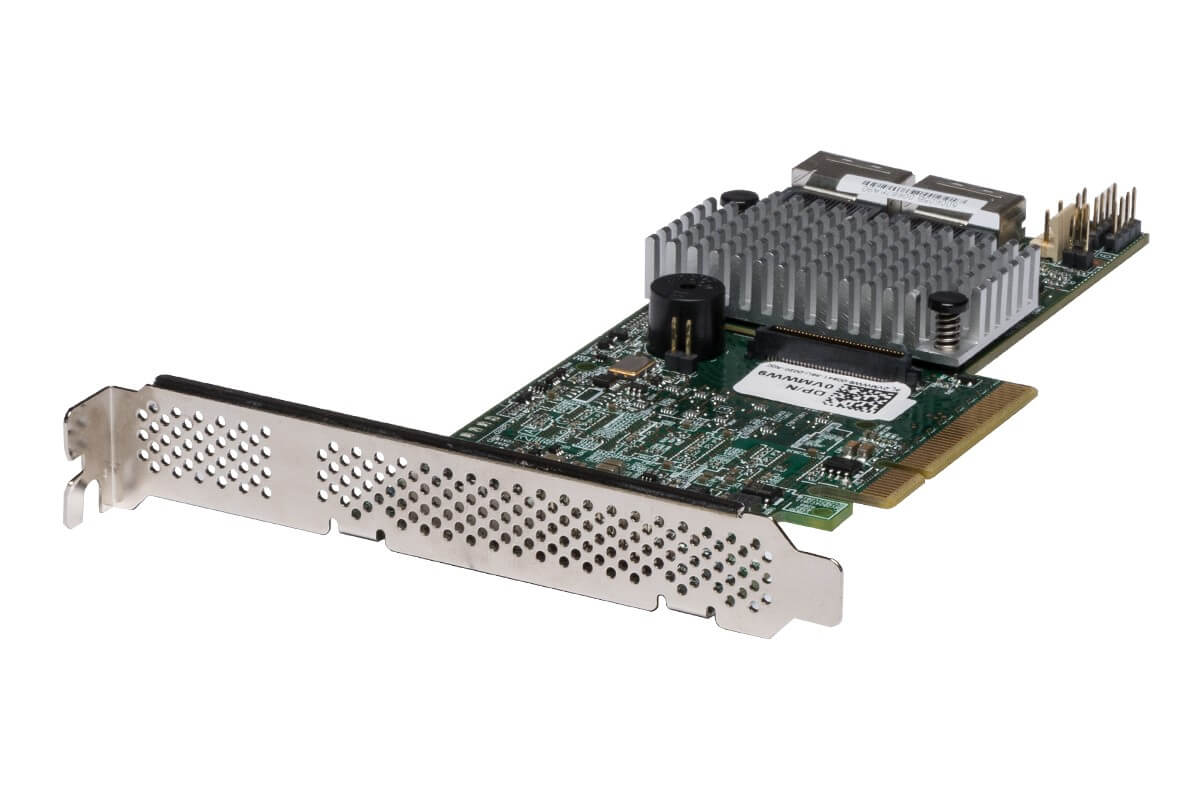

The Dell D3X2V 6GB MegaRAID SAS 8-Port PCI-E 3.0 x8 SAS SATA Host Bus Adapter (HBA) is a computer hardware device that allows a computer to communicate with SAS and SATA storage devices. It is designed to provide high-performance, reliable storage connectivity for servers and workstations.
PCI-E 3.0 x8 Interface
The Dell D3X2V HBA uses the PCI-E 3.0 x8 interface, which provides a high-speed connection between the HBA and the computer’s CPU. This interface provides a maximum bandwidth of 8 GT/s per lane, which means that the HBA can transfer data at a rate of up to 64 Gbps.
8-Port SAS/SATA Connectivity
The Dell D3X2V HBA features eight SAS/SATA ports, which can be used to connect up to eight storage devices. These ports support both SAS and SATA protocols, which allows the HBA to be used with a wide range of storage devices, including hard drives, solid-state drives, and tape drives.
RAID Support
The Dell D3X2V HBA supports RAID (Redundant Array of Independent Disks) configurations, which allow multiple storage devices to be combined into a single logical unit. This can provide improved performance and reliability, as well as increased capacity.
Low-Profile Bracket
The Dell D3X2V HBA comes with a low-profile bracket, which allows it to be installed in low-profile servers and workstations. This bracket reduces the overall height of the HBA, making it easier to install in systems with limited space.
Compatibility
The Dell D3X2V HBA is compatible with a wide range of servers and workstations, including those from Dell, HP, and IBM. It is also compatible with a wide range of operating systems, including Windows, Linux, and VMware.
General Information about the Dell D3X2V
- Brand Name : Dell
- Part Number or SKU# D3X2V
- Sub-Type : SAS-SATA
- Type : Controller
Technical Information
- Product Type: SAS Controller
- Host Interface: PCI Express 3.0 X8
- Data Transfer Rate: 768 MBPS Per Port
- Interfaces: Serial Attached SCSI (SAS), Serial ATA/600
- Raid Supported: Yes
- Raid Levels: 0, 1, 10, 50, 60, 5, 6
- Data Backup Type: Battery Backup
- Standard Memory: 1 GB DDR3 SDRAM
- Ports: 2 X SFF-8087 6GB/S SAS – Mini-SAS Internal
- Form Factor: Low-Profile Plug-In Card
