Description
Introduction to Dual Port Server Adapter

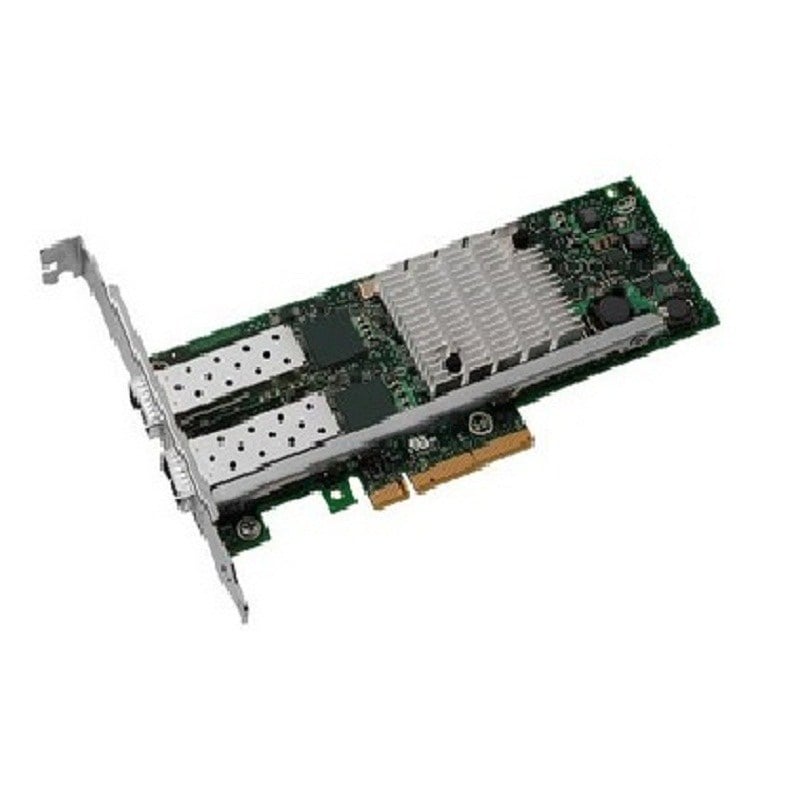

The T645H Dell 10GBPS AT2 Dual Port Server Adapter is a high-performance network interface card designed to deliver high-speed connectivity to servers. It provides 10 Gigabit Ethernet (10GbE) connectivity to the network, which enables faster data transfer rates and better performance for applications that require large amounts of data to be transferred quickly. This server adapter comes with both a full-height and low-profile bracket, which allows it to be installed in a variety of server configurations.
Key Features and Benefits of Dual Port Server Adapter
- Dual-Port Design
The T645H Dell 10GBPS AT2 Dual Port Server Adapter features a dual-port design, which enables it to support multiple network connections. This design provides redundancy and load balancing capabilities, which ensures that the network is always available and responsive.
- 10 Gigabit Ethernet (10GbE) Connectivity
The server adapter provides 10GbE connectivity, which delivers faster data transfer rates than traditional Ethernet. This enables better performance for applications that require large amounts of data to be transferred quickly, such as database applications, high-performance computing (HPC), and virtualization.
- PCIe 2.0 x8 Interface
The server adapter utilizes a PCIe 2.0 x8 interface, which provides high-speed connectivity to the server. This interface delivers up to 8 GB/s of data transfer rate, which ensures that the server adapter can keep up with the demands of high-bandwidth applications.
- Both Full-Height and Low-Profile Bracket
The T645H Dell 10GBPS AT2 Dual Port Server Adapter comes with both a full-height and low-profile bracket, which allows it to be installed in a variety of server configurations. This makes it versatile and easy to install, regardless of the server model.
- Advanced Network Features
The server adapter supports advanced network features, such as VLAN tagging, which enables network administrators to segment the network and improve network performance. It also supports jumbo frames, which enables the transmission of larger packets of data, which reduces network overhead and improves network efficiency.
Applications of 2 Ports Adapter
The T645H Dell 10GBPS AT2 2 Dual Port Server Adapter is a network interface card (NIC) designed for use in high-performance servers and data centers. It provides two 10 Gigabit Ethernet ports, each with full-duplex capability and support for a variety of network protocols.
Some common applications of the T645H Dell 10GBPS AT2 Dual Port Server Adapter include:
- High-speed data center connectivity: The T645H adapter is ideal for connecting servers to high-speed networks, such as those used in data centers or cloud computing environments. Its 10 Gigabit Ethernet ports provide fast and reliable connectivity for data-intensive applications, such as virtualization, database management, and storage networking.
- High-performance computing: The T645H adapter can also be used in high-performance computing (HPC) environments, such as those used in scientific research or financial modeling. The high-speed Ethernet ports can be used to connect servers to HPC clusters, enabling fast data transfer and parallel processing.
- Video streaming: The T645H adapter can be used in video streaming applications, where high-speed network connectivity is required to transmit large amounts of video data over the network. The adapter’s high-speed Ethernet ports can help ensure smooth and uninterrupted video playback, even at high resolutions.
Finally, the T645H Dell 10GBPS AT2 Dual Port Server Adapter is a high-performance network interface card designed to deliver high-speed connectivity to servers. It provides 10GbE connectivity, which enables faster data transfer rates and better performance for applications that require large amounts of data to be transferred quickly. The server adapter comes with both a full-height and low-profile bracket, which makes it easy to install in a variety of server configurations. It supports advanced network features, such as VLAN tagging and jumbo frames, which enables network administrators to segment the network and improve network performance.
Main Specification about the Dell T645H
- Manufacturer: Dell
- Part Number or SKU# T645H
- Device Type: Network Adapter
Technical Information
- Form Factor : Plug-In Card – Low Profile
- Interface (Bus) Type : PCI Express 2.0 X8
- Connectivity Technology : Wired
- Data Link Protocol : 10 GIGABIT Ethernet
- Data Transfer Rate : 10 GBPS
- Network / Transport Protocol : TCP/IP, UDP/IP, ISCSI
- Remote Management Protocol : SNMP, DMI 2.0
- Status Indicators : Link Activity
Features
- Flow Control, Fault Tolerance, Load Balancing, Vlan Support, Packet Filtering, Ipv6 Support, Intel I/O Acceleration Technology (I/Oat)
- Compliant Standards : IEEE 802.3, IEEE 802.1Q, IEEE 802.1P, IEEE 802.11A, IEEE 802.11E
Processor / Memory
- Processor : 1 X 82598EB – Intel
Expansion / Connectivity
- Expansion Slots Total (Free) : 2 ( 2 ) X SFP+
- Compatible Slots : 1 X PCI Express X8 – Low-Profile
