Description
Troubleshooting and maintenance
- Verify that the adapter is properly installed in the server and that all necessary drivers and software are up to date.
- Check the network cable connections to ensure that they are securely plugged in and functioning properly.
- Check the server’s BIOS settings to ensure that the adapter is recognized and enabled.
- Verify that the adapter is properly configured in the operating system and that all necessary settings are correctly configured.
- Check for any error messages or warnings in the event logs of the server and troubleshoot any issues that may be causing problems.
- Run diagnostic tests on the adapter to check for any hardware issues.
- Check for any software or firmware updates that may be available for the adapter and install them if necessary.
- If the issue persists, contact HP technical support for further assistance.
- Clean the adapter from dust and debris to ensure proper functioning.
- Check for any overheating issues and take necessary actions to resolve them.
- Check for any loose connections and re-seat the adapter if necessary.
Maximizing Performance
To maximize the performance of the 593722-B21 HP NC365T 4-ports 1GB Ethernet PCI-E G6 G7 G8 server adapter, there are a few steps that can be taken:
- Make sure that the adapter is properly installed and configured in the server. This includes ensuring that the correct drivers are installed and that the adapter is properly connected to the network.
- Use a high-quality network cable to connect the adapter to the network. This will ensure that data is transmitted quickly and reliably.
- Make sure that the network switch or router that the adapter is connected to is configured for optimal performance. This includes configuring Quality of Service (QoS) settings, jumbo frames, and other advanced features that can improve performance.
- Use a dedicated network for the server to avoid congestion and interference from other devices on the network. This will help to ensure that the adapter is always able to transmit data at its maximum speed.
- Keep the server and adapter software up to date. This will ensure that any performance enhancements or bug fixes are applied to the adapter, which can help to improve performance.
- Test and monitor the adapter’s performance regularly to ensure that it is operating at peak efficiency. This can help to identify any issues that may be affecting performance and allow them to be addressed quickly.
Installation and configuration instructions
- Start by installing the HP NC365T 4-Ports 1GB Ethernet PCI-E G6 G7 G8 Server Adapter into an available PCI-E slot on your server. Make sure the adapter is securely seated and the screw is tightened.
- Turn on your server and log in to the system.
- Open the Device Manager by going to Start > Control Panel > System and Security > Device Manager.
- Locate the HP NC365T 4-Ports 1GB Ethernet PCI-E G6 G7 G8 Server Adapter in the list of devices and double-click on it.
- Click on the Driver tab and then click on Update Driver.
- Click on Browse my computer for driver software and then navigate to the location where you have stored the driver software.
- Click on Next and follow the on-screen instructions to complete the installation of the driver software.
- Once the driver installation is complete, the adapter will be fully functional and ready to use.
- To configure the adapter, go to the Network Connections section in the Control Panel.
- Locate the HP NC365T 4-Ports 1GB Ethernet PCI-E G6 G7 G8 Server Adapter in the list of connections and right-click on it.
- Select Properties and then click on the Advanced tab.
- In the Advanced tab, you can configure various settings such as speed, duplex, and flow control.
- Once you have configured the adapter to your desired settings, click on OK to save the changes.
- The HP NC365T 4-Ports 1GB Ethernet PCI-E G6 G7 G8 Server Adapter is now fully installed and configured, and you can use it to connect to your network.

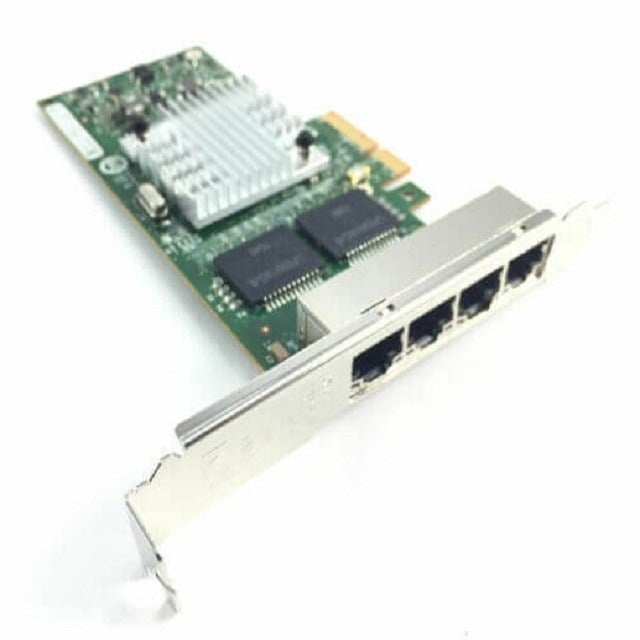

General Information about the HPE 593722-B21
- Manufacturer: HP
- Model Number or SKU# 593722-B21
- Adapter Type : Network Adapter – 4 Ports
- Form Factor : Plug-In Card – Low Profile
- Interface (Bus) Type : Pci Express 2.0 X4
Networking
- Connectivity Technology : Wired
- Cabling Type : Ethernet 10base-T, Ethernet 100base-Tx, Ethernet 1000base-T
- Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
- Data Transfer Rate : 1 GBPS
Processor / Memory
- Network Processor: Intel® 82580
Expansion / Connectivity
- Interfaces: 4 x 1000Base-T – RJ-45
- Compatible Slots: 1 x PCI Express 2.0 x4
Power
Power Requirement: 5.0W @ 3.3v maximum
Miscellaneous
IEEE Compliance: 802.3, 802.3u, 802.3ab, 802.3x, 802.3ad, 802.1p, 802.1q, 802.3z, 1588
Compatible Operating Systems: Microsoft Windows Server 2008, Microsoft Windows Server 2003 R2 SP2, Red Hat Enterprise Linux (RHEL), SLES 10, SLES 11, VMware ESX 4.0 Update 1, Microsoft Windows Hyper-V
Environmental Parameters
- Min Operating Temperature: 32 °F
- Max Operating Temperature: 131 °F
- Humidity Range Operating: 10 – 90% (non-condensing)
Dimensions & Weight
- Height: 2.25 inch
- Width: 9.50 inch
- Depth: 7.50 inch
- Weight: 1.00 lbs
Compatibility Information
- HP ProLiant DL Series: DL120 G7, DL120 G7 Base, DL120 G7 Entry, DL120 G7 Performance, DL165 G7 Performance, DL360 G7 Base, DL360 G7 Entry, DL360 G7 Special Server, DL360p Gen8, DL360p Gen8 Base, DL360p Gen8 CMS, DL360p Gen8 Entry, DL360p Gen8 High Performance, DL360p Gen8 Special Server, DL370 G6 Special Server, DL380 G6, DL380 G7 Base, DL380 G7 Efficiency, DL380 G7 Entry, DL380 G7 Performance, DL380 G7 Special Server, DL380p Gen8, DL380p Gen8 Base, DL380p Gen8 Entry, DL380p Gen8 High Performance, DL380p Gen8 Special, DL385 G6 ICE Performance, DL385 G7 Base,
- DL385 G7 Entry, DL385 G7 HE, DL385 G7 Performance, DL385p Gen8, DL385p Gen8 Dedicated Workload, DL385p Gen8 Entry, DL385p Gen8 Maximized Consolidation, DL385p Gen8 Storage, DL560 Gen8, DL560 Gen8 Base, DL560 Gen8 Entry, DL560 Gen8 Performance, DL580 G7, DL580 G7 Base, DL580 G7 High Performance, DL585 G7, DL585 G7 Base, DL585 G7 Performance, DL980 G7
- HP ProLiant ML Series: ML10 Entry, ML110 G7, ML110 G7 Base, ML110 G7 Entry, ML110 G7 Performance, ML310e Gen8, ML310e Gen8 Base, ML310e Gen8 Entry,
- ML310e Gen8 Performance, ML310e Gen8 v2, ML330 G6 Special Server, ML350e Gen8, ML350e Gen8 Base, ML350e Gen8 Entry, ML350e Gen8 Performance, ML350e Gen8 v2, ML350e Gen8 v2 Base, ML350p Gen8, ML350p Gen8 Special Server, ML370 G6 Special Server
- HP ProLiant SL Series: SL160s G6, SL165s G7, SL230s Gen8 1U Left Half Width Tray, SL230s Gen8 1U Right Half Width Tray, SL230s Gen8 Base 1U Left Tray Server, SL230s Gen8 Base 1U Right Tray Server, SL250s Gen8 2U Left Half Width Tray, SL250s Gen8 2U PCIe Gen3 Left Tray, SL250s Gen8 2U PCIe Gen3 Right Tray, SL250s Gen8 2U Right Half Width Tray, SL250s Gen8 Base 2U Left Half Width Tray, SL250s Gen8 Base 2U Right Half Width Tray, SL270s Gen8 1U Left Half Width Tray, SL270s Gen8 1U Right Half Width Tray, SL270s Gen8 Base 4U Left Half Width Tray, SL270s Gen8 Base 4U Right Half Width Tray, SL270s Gen8 SE 4U Left Tray, SL270s Gen8 SE 4U Right Tray, SL4545 G7
- HP MicroServer Gen8 Performance
