Description
Operating System Support
Operating System (OS) support refers to the ability of a hardware device or computer system to run and operate with a specific operating system software. In the case of HPE 605877-005 ProLiant DL380, it refers to the list of operating systems that can be installed and used on the server.
The HPE 605877-005 ProLiant DL380 supports various operating systems, including Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Oracle Linux, VMware ESXi, and Citrix XenServer, among others. Each of these operating systems has its own system requirements, hardware compatibility, and licensing conditions that must be met to operate on the HPE 605877-005 ProLiant DL380 server.
The operating system support of HPE 605877-005 ProLiant DL380 is critical because it enables the user to run the desired operating system with the necessary drivers and system software. The compatibility of the operating system with the server’s hardware components, including the processor, memory, storage, and network adapters, ensures smooth and efficient operation of the server.
It is important to ensure that the chosen operating system is supported by HPE 605877-005 ProLiant DL380 before installing it. This can be done by referring to the server’s documentation or by consulting with the manufacturer or vendor. Additionally, the server’s firmware and drivers should be updated regularly to maintain compatibility with the operating system and to ensure optimal performance and security.
Applications and Use Cases
HPE 605877-005 Intel Xeon 2.40GHz 6GB DDR3 SDRAM SAS/SATA DVD RW ProLiant DL380 is a versatile server that can be used in various applications and use cases. Some of the common applications and use cases for this server are:
- Web Hosting: HPE ProLiant DL380 server can be used as a web hosting server to host websites and web applications. Its powerful processor and memory, as well as the ability to support multiple storage drives, make it ideal for hosting high-traffic websites and web applications.
- Database Server: The HPE ProLiant DL380 server can be used as a database server to store and manage data. Its high-speed processors and memory, as well as its ability to support large amounts of storage, make it ideal for running database management systems such as Microsoft SQL Server or Oracle Database.
- Virtualization: The HPE ProLiant DL380 server can be used as a virtualization server to run multiple virtual machines (VMs) simultaneously. Its ability to support large amounts of memory and storage, as well as its high-speed processors, make it ideal for running virtualization software such as VMware vSphere or Microsoft Hyper-V.
- Cloud Computing: HPE ProLiant DL380 server can be used as a cloud computing server to provide cloud services such as Infrastructure as a Service (IaaS) and Platform as a Service (PaaS). Its high-performance processors and memory, as well as its ability to support multiple storage drives, make it ideal for running cloud computing software such as OpenStack or CloudStack.
- Data Analytics: The HPE ProLiant DL380 server can be used for data analytics applications such as machine learning, big data processing, and data warehousing. Its powerful processors, large memory capacity, and ability to support multiple storage drives make it ideal for running data analytics software such as Apache Hadoop or Apache Spark.
- High-Performance Computing: The HPE ProLiant DL380 server can be used for high-performance computing applications such as scientific computing, simulation, and modeling. Its powerful processors and memory, as well as its ability to support high-speed network adapters, make it ideal for running high-performance computing software such as MATLAB or ANSYS.
Management and Security Features
The HPE 605877-005 ProLiant DL380 server is equipped with various management and security features to ensure smooth operation and protect against security threats. Some of the key management and security features of the server are:
- Integrated Lights-Out (iLO) Management: The server comes with an integrated iLO management engine that allows remote management and monitoring of the server hardware, including power management, firmware updates, and hardware diagnostics. The iLO management engine also provides remote console access to the server, enabling administrators to troubleshoot and resolve issues from anywhere.
- HPE OneView: HPE OneView is a centralized management platform that provides a single view of the entire IT infrastructure, including the HPE ProLiant DL380 server. It enables administrators to monitor and manage server resources, automate routine tasks, and quickly provision and deploy new servers.
- Advanced Encryption Standard (AES) Encryption: The HPE ProLiant DL380 server supports AES encryption for secure data storage and transmission. AES encryption uses a symmetric key algorithm to encrypt and decrypt data, providing strong protection against unauthorized access.
- Trusted Platform Module (TPM): The server is equipped with a TPM, a hardware-based security chip that provides secure storage of cryptographic keys and other sensitive data. The TPM also enables secure boot, which ensures that the server boots only from trusted firmware and software.
- Secure Boot and Secure Start: The server supports Secure Boot and Secure Start features that ensure the integrity of the server firmware and software. Secure Boot ensures that the server boots only from trusted firmware and software, while Secure Start verifies the server hardware configuration and firmware before booting.
- Power-On Authentication: The server supports Power-On Authentication (POA), a security feature that requires users to authenticate themselves before the server can be powered on. POA provides an additional layer of security, preventing unauthorized access to the server.

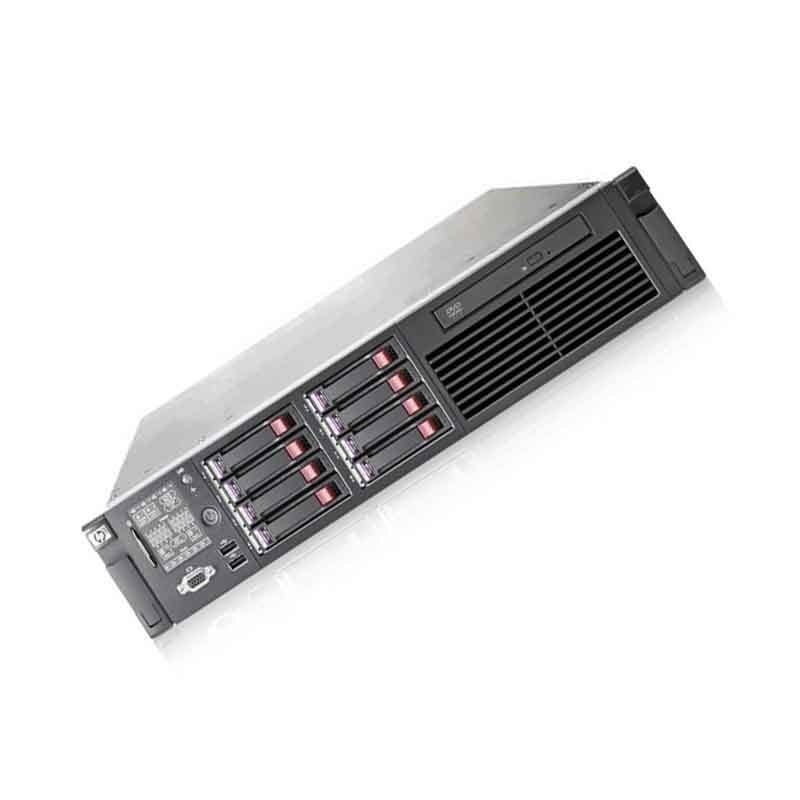

Product Information for this HPE 605877-005
- Brand: HPE
- Model Number or SKU# 605877-005
- Type: Server
- Product Type: ProLiant DL380
Processor & Chipset of ProLiant DL380
- Multi-Core Technology: Quad-Core.
- Installed Qty : 1
- Processor Type: Intel Xeon Processor E5620(2.40 GHz), 12MB L3 Cache, 80w)
- Max Supported Qty : 2
- Upgradability: Upgradable.
- 64-Bit Computing: Yes.
- Chipset Type: Intel 5520
Cache Memory about this L3 Cache
- Cache Memory Type: L3 Cache.
- Installed Size: 12 MB.
- Cache Per Processor: 12 Mb.
Ram of DDR3 SDRAM
- Installed Size: 6 GB.
- Max Supported Size: 48 GB.
- Ram Technology: DDR3 SDRAM.
- Memory Specification Compliance : Pc3-10600
- Form Factor: Dimm 240-Pin.
- Features: Unbuffered.
- Configuration Features: 3 X 2 GB
Storage & Storage Controller
- Hard Drive: None.
- Optical Storage Type: SATA DVD-RW.
- Internal Storage
- Standard: 8 SFF SAS/SATA HDD Bays.
- Storage Controller: 1 X Raid, Plug-In Card, PCI Express 2.0 X8
- Controller Interface Type: Serial Ata-300 / SAS 2.0
- Storage Controller Name : Smart Array P410i With 512MB Fbwc.
- Raid Level : Raid 0, Raid 1, Raid 5, Raid 6, Raid 1+0, Raid 5+0, Raid 6+0
- Buffer Size: 512 GB
Display & Graphics Controller
- Graphics Controller Type: Integrated.
- Graphics Processor: Ati Es1000
- Video Memory: 64 MB.
- Supported Resolution
- 16 Bit Color: Maximum Resolution Of 1600 X 1200
- 32 Bit Color: Maximum Resolution Of 1280 X 1024
Networking
- Networking: Network Adapter,Integrated.
- Ethernet Ports: 4 X Gigabit Ethernet.
- Ethernet Controller: 2 X Hp Nc382i.
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet.
- Remote Management Controller: Integrated Lights-Out 3
- Features: Wake On Lan (Wol), Acpi Support, Pxe Support.
Compliant Standards
- Ieee 802.3, Ieee 802.3u, Ieee 802.1q, Ieee 802.3ab
- Ieee 802.1p, Ieee 802.3ad (Lacp)
Expansion / Connectivity
- Expansion Bays Total (Free):
- 1 (0) X Front Accessible, 5.25in Slim Line.
- 8 (8) X Hot-Swap, 2.5in Sff.
- Expansion Slots Total (Free) :
- 2 (1) X Pci Express 2.0 X8, Half-Length, Full-Height ( X4 Mode ).
- 1 (1) X Pci Express 2.0 X16, Full-Length, Full-Height ( X8 Mode ).
- 18 (16) X Memory, Dimm 240-Pin.
- 2 (1) X Processor.
Interfaces
- 1 X Keyboard.
- 1 X Mouse.
- 5 X USB 2.0 Ports (2 Front, 2 Back, 1 Internal)
- 1 X Serial, Rs-232, 9 Pin D-SUB (Db-9)
- 2 X Display / Video, Vga, 15 Pin Hd D-Sub (Hd-15)
- 4 X Network – Ethernet 10base-T/100base-Tx/1000base-T – Rj-45
Power Device
- Power Device Type: Power Supply.
- Installed Qty : 1
- Max Supported Qty : 2
- Voltage Required: Ac 120/230 V ( 50/60 Hz )
- Power Provided: 460w Hot Plug Power Supply.
