Description
Product Specification

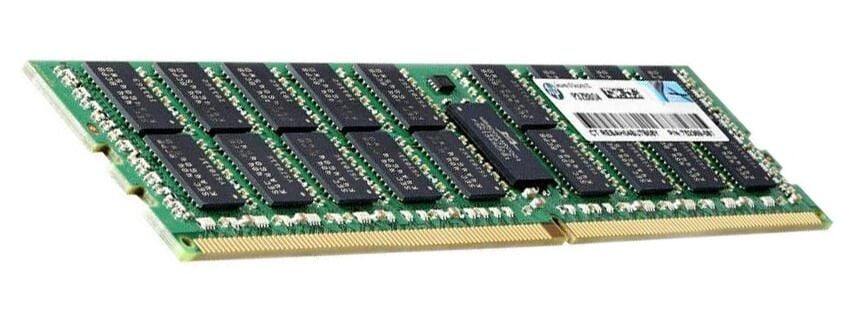

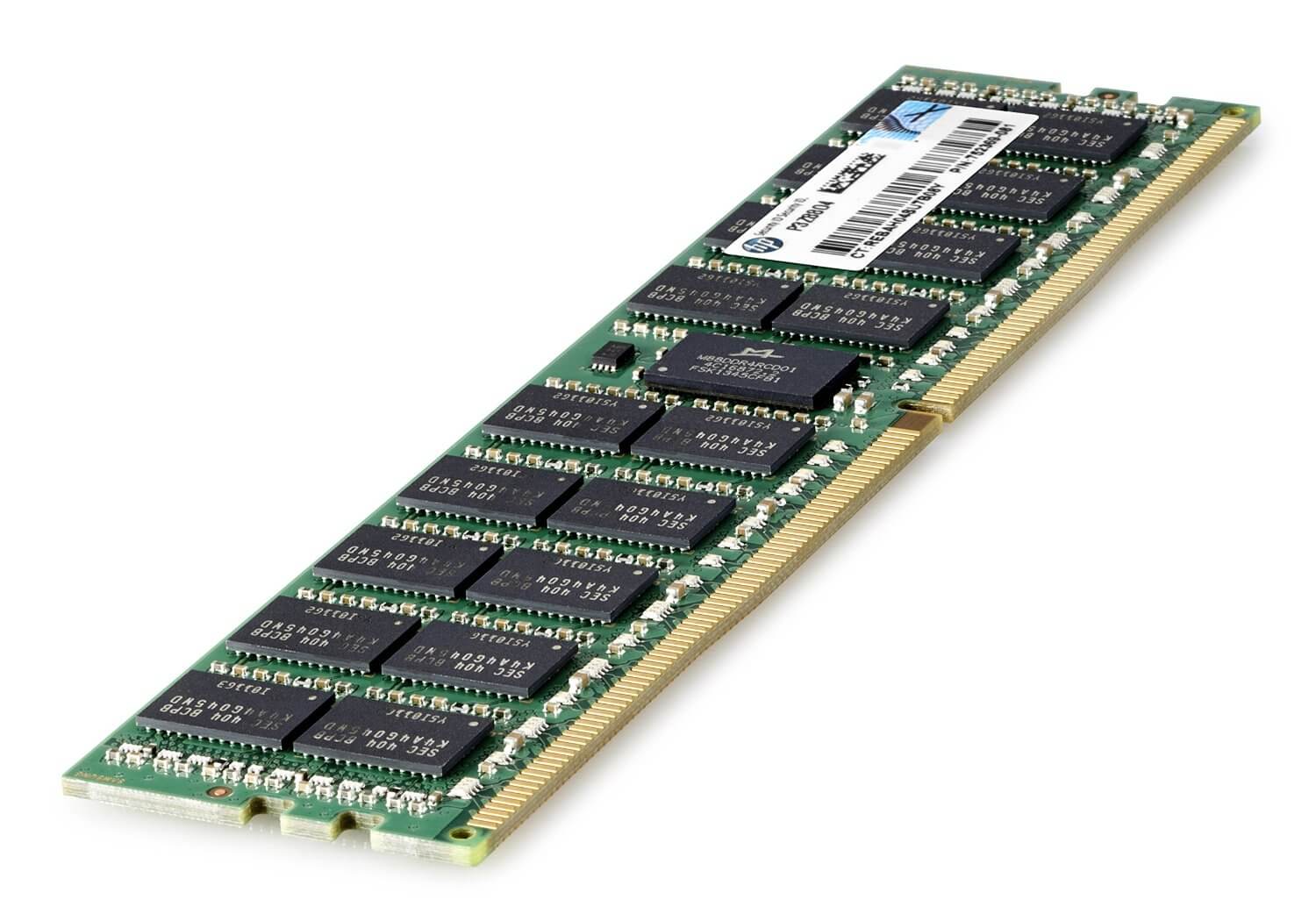

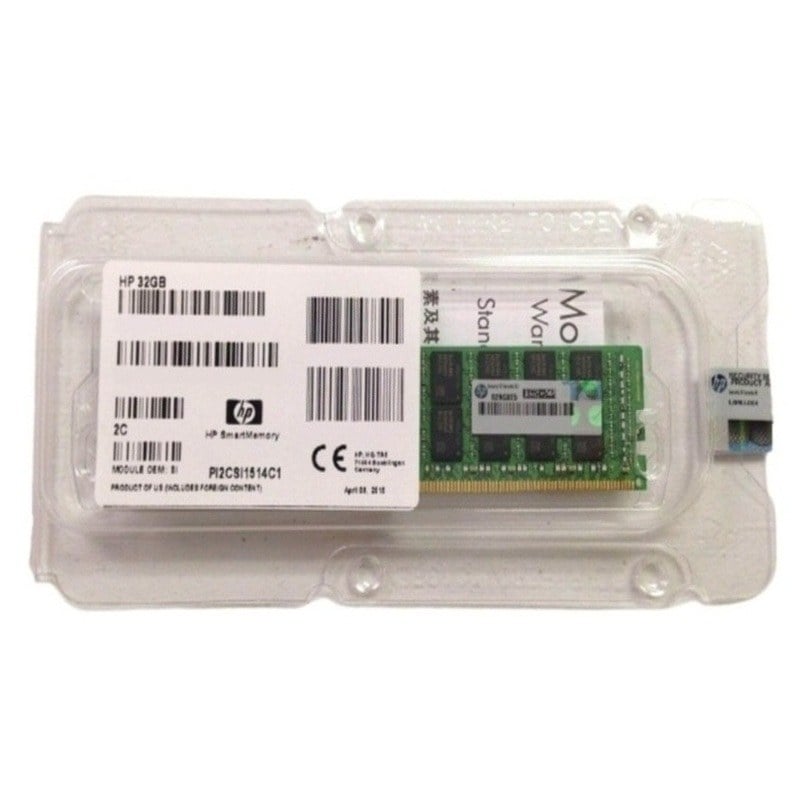

The 726719-32G is a server memory module that comes in a kit of two 16GB DIMMs, which amounts to 32GB of total capacity. This memory module has a clock speed of 2133MHz and a CAS latency of 15, which is a measure of how quickly the memory can respond to requests from the processor. It is also a registered ECC DDR4 memory, which means it can detect and correct errors that occur during data transmission. This feature is important for server applications where data accuracy and reliability are critical.
Dual Rank
The 726719-32G memory module is a dual-rank memory module, which means that each DIMM has two banks of memory. Dual-rank memory modules are capable of accessing more data at once, making them more efficient for data-intensive applications. However, they may not be as fast as single-rank memory modules, which have only one bank of memory. The choice between dual-rank and single-rank memory modules depends on the specific requirements of the application.
2133MHz Clock Speed
The clock speed of the 726719-32G memory module is 2133MHz. The clock speed refers to the rate at which the memory can send and receive data. A higher clock speed means that data can be accessed more quickly, resulting in faster system performance. However, the clock speed is only one factor in determining the overall performance of a memory module. Other factors, such as latency and the number of ranks, also play a role in determining the module’s performance.
PC4-17000 Standard
The 726719-32G memory module conforms to the PC4-17000 standard, which specifies the maximum bandwidth and data transfer rate for DDR4 memory modules. The PC4-17000 standard is also known as DDR4-2133, which corresponds to the memory module’s clock speed. DDR4 memory modules offer several improvements over their DDR3 counterparts, including higher clock speeds, lower power consumption, and higher memory density.
CL15 CAS Latency
The CAS latency of the 726719-32G memory module is 15. CAS latency is a measure of the delay between the time when the memory receives a request and when it is able to respond. A lower CAS latency means that the memory can respond more quickly to requests, resulting in faster system performance. However, lower CAS latency typically comes at the cost of higher power consumption.
Registered ECC DDR4 Memory
The 726719-32G memory module is a registered ECC DDR4 memory module. ECC stands for Error-Correcting Code, which is a feature that allows the memory to detect and correct errors that occur during data transmission. This feature is important for server applications where data accuracy and reliability are critical. Registered memory is also known as buffered memory and is designed to reduce the load on the memory controller by adding an additional buffer between the memory controller and the memory modules.
Ultra-Low Voltage
The 726719-32G memory module is an ultra-low voltage memory module. This means that it operates at a lower voltage than standard DDR4 memory modules. The lower voltage results in lower power consumption and heat generation, which can help to reduce the overall power consumption and heat dissipation of the server. However, ultra-low voltage memory modules may not be compatible with all server platforms, so it is important to check the compatibility before purchasing this type of memory module.
General Information about the HPE 726719-32G
- Manufacturer: HPE
- Part Number or SKU # 726719-32G
- Type: Memory (RAM)
- RAM Type: Pc4-17000
- Product Name: 32GB DDR4 SDRAM Memory Module
Technical Information
- Storage Capacity: 32GB
- Memory Technology: DDR4 SDRAM
- Number Of Modules: 2 X 16GB
- Memory Speed: 2133mhz DDR4-2133/PC4-17000
- Data Integrity Check: Ecc
- Features: Dual Rank, Ultra Low Voltage , Registered
- Cas Latency Timings: Cl15
- Platform Support: Hp Proliant Gan9
- Form Factor: 288-pin Dimm
Physical Characteristics
- Dimensions (W X D X H) : 8.89 X 19.81 X 1.91 Cm (3.5 X 7.8 X 0.75 In)
- Weight: 0.45 Kg (1 Lb)
Compatibility Information
- HPE Proliant
- Bl460c Gen9, Bl460c Gen9 Base, Bl460c Gen9 Entry, Bl460c Gen9 Performance, Dl160 Gen9, Dl160 Gen9 Base, Dl160 Gen9 Entry, Dl180 Gen9, Dl180 Gen9 Base, Dl180 Gen9 Entry, Dl360 Gen9, Dl360 Gen9 Base, Dl360 Gen9 Entry, Dl360 Gen9 Performance, Dl380 Gen9, Dl380 Gen9 Base, Dl380 Gen9 Entry, Dl380 Gen9 Performance, Ml350 Gen9, Ml350 Gen9 Base, Ml350 Gen9 Entry, Ml350 Gen9 Performance, Xl230a Gen9 :
Contact us or ask for live chat/help if you have any questions about the compatibility of this item to ensure the model’s matching features with your current system.
