Description
Use Cases and Applications

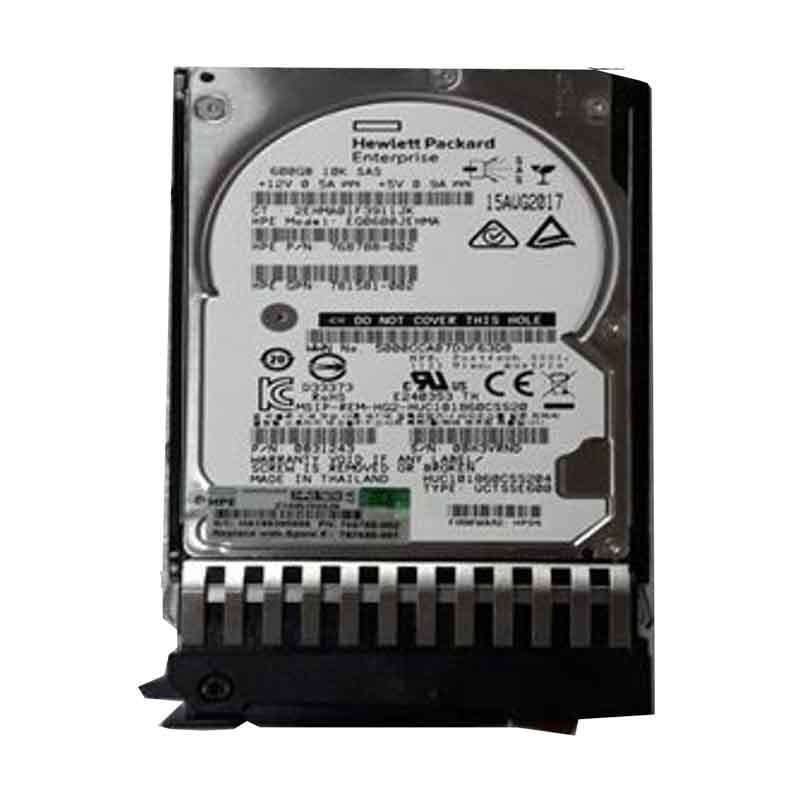

The HPE 787646-001 SFF 600GB 10K RPM SAS-12GBPS Hard Drive is designed for use in enterprise data center environments, where it provides high-performance, reliable storage for a wide range of applications. Some of the use cases and applications for this Hard Drive include:
- Database Servers: The high-performance and reliability of the HPE 787646-001 Hard Drive make it ideal for use in database servers, where fast and reliable storage is critical to support the performance of applications that rely on databases.
- Virtualization: The Hard Drive is also well-suited for virtualized environments, where it can provide reliable and high-performance storage for virtual machines and virtualized applications.
- Cloud Computing: The Hard Drive can also be used in cloud computing environments, where it can provide reliable and high-performance storage for cloud-based applications and services.
- Video Surveillance: The high storage capacity and reliability of the Hard Drive make it suitable for use in video surveillance systems, where it can store large amounts of video data over long periods of time.
- High-Performance Computing: The Hard Drive can also be used in high-performance computing environments, where it can provide fast and reliable storage for complex simulations and data analysis tasks.
Compatibility with HPE Servers
The HPE 787646-001 SFF 600GB 10K RPM SAS-12GBPS Hard Drive is designed to be fully compatible with HPE servers and storage systems. It has been extensively tested and validated by HPE to ensure that it operates seamlessly with HPE servers and storage controllers.
The Hard Drive uses the SAS interface, which is a widely used standard for storage connectivity, and is supported by most HPE servers and storage controllers. This makes it easy to integrate the Hard Drive into existing HPE storage systems and to take advantage of its high-performance and reliability features.
HPE also provides drivers and firmware updates for the Hard Drive that are specifically designed to be compatible with HPE servers and storage systems. These updates ensure that the Hard Drive operates smoothly and efficiently, and that it is fully compatible with the HPE server it is connected to.
Environmental Specifications
The HPE 787646-001 SFF 600GB 10K RPM SAS-12GBPS Hard Drive is designed to operate within specific environmental specifications. These specifications ensure that the Hard Drive operates reliably and efficiently, and that it is protected from environmental factors that could cause damage or affect its performance. Some of the key environmental specifications for the Hard Drive include:
- Temperature: The Hard Drive is designed to operate within a temperature range of 50°F to 95°F (10°C to 35°C). Operating the Hard Drive outside of this temperature range could result in reduced performance or damage to the drive.
- Humidity: The Hard Drive is designed to operate within a relative humidity range of 10% to 90%, non-condensing. Operating the Hard Drive outside of this humidity range could result in corrosion or other damage to the drive.
- Altitude: The Hard Drive is designed to operate at altitudes up to 10,000 feet (3,048 meters). Operating the Hard Drive at higher altitudes could result in reduced performance or damage to the drive.
- Shock and Vibration: The Hard Drive is designed to withstand shock and vibration during operation. It can withstand a shock of up to 40g during operation (2ms half-sine) and 300g while not operating (2ms half-sine). It can also withstand vibration of up to 0.5g (RMS) at a frequency of 5-500 Hz while operating.
- Airflow: The Hard Drive requires adequate airflow to maintain optimal operating temperatures. HPE recommends that the Hard Drive be installed in a system that provides sufficient airflow to keep the drive within its recommended temperature range.
The environmental specifications for the HPE 787646-001 SFF 600GB 10K RPM SAS-12GBPS Hard Drive are designed to ensure that the drive operates reliably and efficiently, even in challenging environmental conditions. By following these specifications, users can ensure that the Hard Drive operates optimally and provides reliable and high-performance storage for their critical business applications.
Product Information:
- Manufacturer Name: HPE
- MPN: 787646-001
- Type: Hard Drive – Hot-Swap
- HDD Type: SAS 12GBPS
- Option Part Number: J9F46A
- Model Number: EG0600JEHMA
- Model Number: EG0600JEMCV
- Model Number: EG0600JETKA
- Model Number: EG000600JWEBH
- Model Number: EG000600JWFUV
- Model Number: EG000600JWJNH
- Model Number: EG000600JWJNP
- Assembly Number: 787677-002
- Assembly Number: 781514-001
- Assembly Number: 796365-002
- Assembly Number: 869714-002
- SKU: 787646-001
Technical Information
- Capacity: 600 GB
- Form Factor: 2.5 Inch SFF
- Interface: SAS 12GBPS
- Bytes per Sector: 512
- Drive Technology (Fill): Air
- Carrier Type: Standard MSA Carrier
- Workload Type: Enterprise
- Plug Type: Hot Plug
- Features: Dual Port
- Bundled With: HPE Standard MSA Carrier
- Performance
- Drive Transfer Rate: 12 GB/Sec (External)
- Average Seek Time: 3.3 ms
- Max Seek Time: 6.6 ms
- Single Track Seek Time: 0.11 ms
- Spindle Speed: 10000 RPM
- Expansion & Connectivity
- Interfaces: 1 x SAS-12GB/S
- Compatible Bay: 2.5 Inch SFF
Dimension and Weight
- Width: 2.8 Inch
- Depth: 3.9 Inch
- Height: 0.6 Inch
- Weight: 0.50 LBS
Environmental Parameters
- Max Operating Temperature: 35 °C
- Min Operating Temperature: 10 °C
Environmental Parameters
- Min Operating Temperature: 50 °F (10° C)
- Max Operating Temperature: 95 °F (35° C)
Compatibility:
- HPE Modular Smart Array 1040 Dual Controller SFF Bundle, 1040 Dual Controller SFF Storage, 2040 10Gb iSCSI Dual Controller SFF Bundle, 2040 Dual Controller SFF Bundle, 2040 FC Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Bundle, 2040 SAN Dual Controller SFF Storage, 2040 SAN w/o SFP SFF Bundle, 2040 SAS Dual Controller SFF Bundle, 2040 SAS Dual Controller SFF Storage, 2040 SFF Chassis, 2040 SFF DC-power Chassis, 2042 SAN Dual Controller SFF Storage, 2042 SAN Dual Controller with Mainstream Endurance Solid State Drives SFF Storage, 2042 SAS Dual Controller SFF Storage, 2042 SAS Dual Controller with Mainstream Endurance Solid State Drives SFF Storage
