Description
Product Information

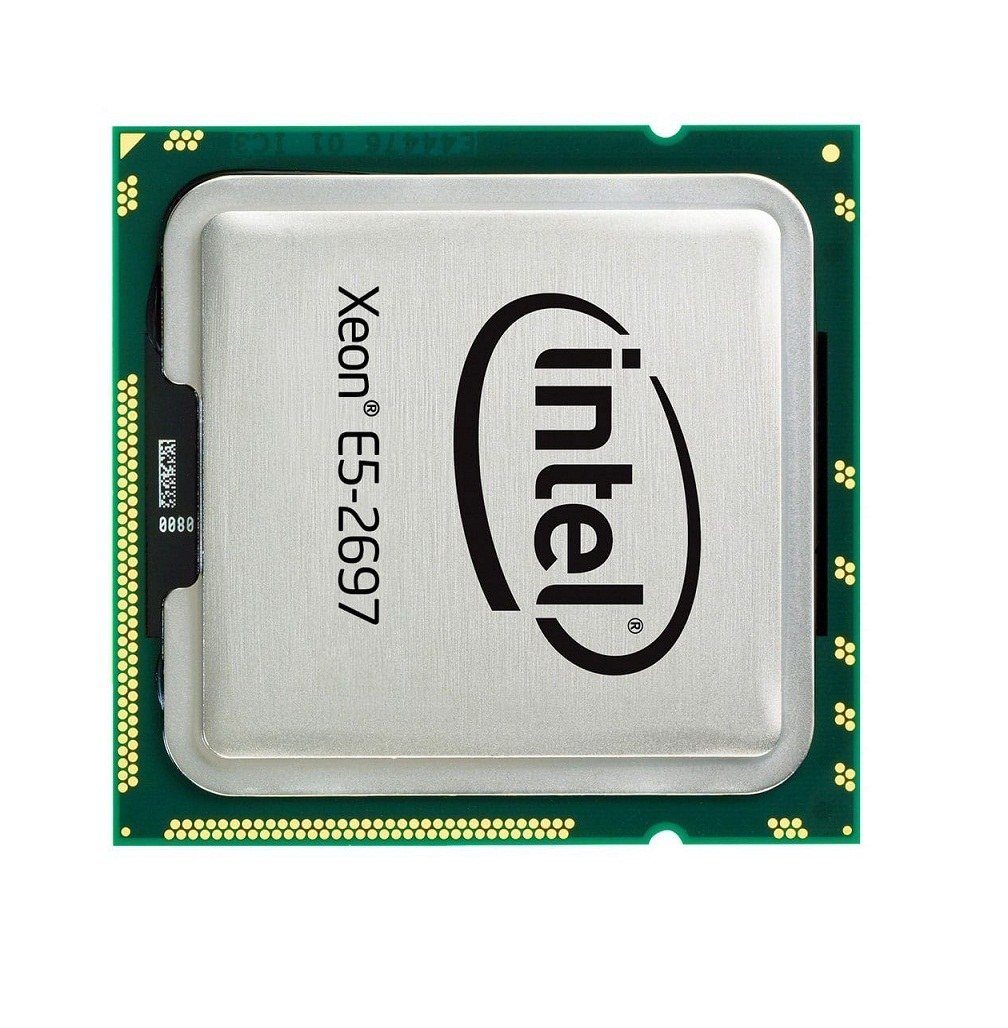

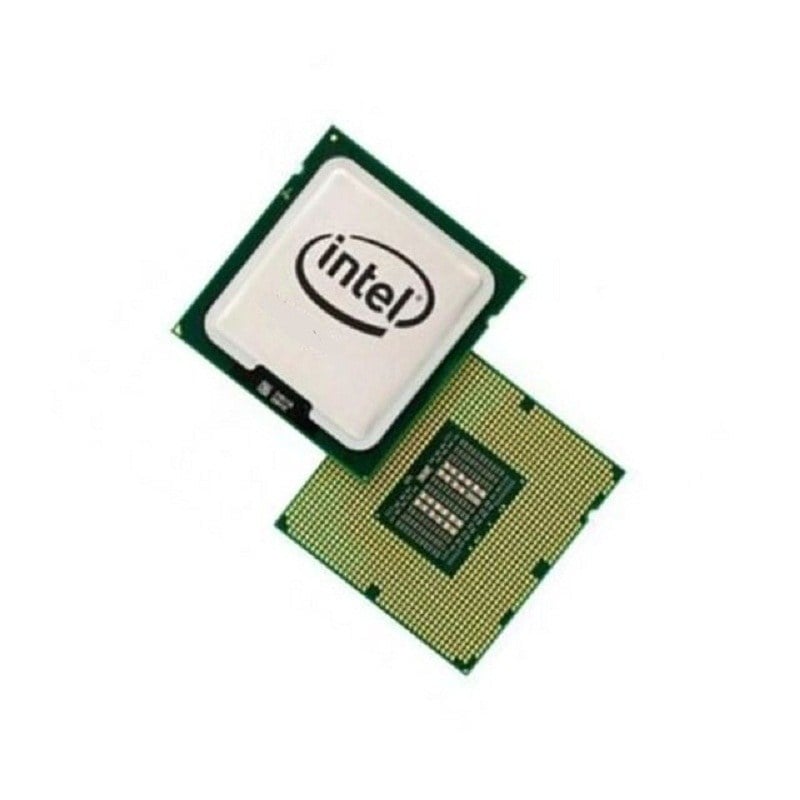

The HPE Intel Xeon E5-2697V4 18-Core 2.3GHz 45MB L3 Cache Processor is a powerful processor designed for use in high-performance computing (HPC) and enterprise applications. It is manufactured by Hewlett Packard Enterprise (HPE) and features Intel’s Xeon E5-2697V4 processor. In this article, we will discuss the features, specifications, and performance of this processor in detail.
Features
The HPE Intel Xeon E5-2697V4 processor has a base clock speed of 2.3GHz and can achieve a maximum turbo frequency of 3.6GHz. It has 18 physical cores and supports 36 threads with Intel’s Hyper-Threading technology. It also has 45MB of L3 cache, which helps to improve the processor’s performance by storing frequently accessed data closer to the processor.
The processor supports Intel’s Advanced Vector Extensions 2 (AVX2), which is an instruction set that can perform arithmetic and vector operations on multiple data elements simultaneously. This technology can help to improve the performance of applications that are optimized for AVX2.
The HPE Intel Xeon E5-2697V4 also supports Intel’s Turbo Boost Technology, which allows the processor to dynamically increase its clock speed when needed. This can help to improve the performance of applications that require short bursts of processing power.
Specifications
The HPE Intel Xeon E5-2697V4 processor has a thermal design power (TDP) of 145 watts, which means that it requires a cooling system capable of dissipating that amount of heat. The processor also supports up to 1.5TB of DDR4 memory, which can be configured in quad-channel mode for maximum performance.
The processor supports up to 40 lanes of PCI Express (PCIe) 3.0, which allows for high-speed data transfer between the processor and other components such as graphics cards, storage devices, and network adapters. It also has support for up to two Intel Ultra Path Interconnect (UPI) links, which allow for high-speed communication between multiple processors in a system.
Performance
The HPE Intel Xeon E5-2697V4 processor is designed for high-performance computing applications and can deliver excellent performance in a variety of workloads. In benchmark tests, the processor has achieved impressive results, with a score of 45,740 in the PassMark CPU benchmark.
In real-world applications, the processor has shown excellent performance in a variety of tasks. In scientific computing applications, the processor has demonstrated its ability to handle complex calculations quickly and efficiently. In financial modeling applications, the processor has shown its ability to quickly analyze large amounts of data.
In Summary, the HPE Intel Xeon E5-2697V4 18-Core 2.3GHz 45MB L3 Cache Processor is a powerful processor designed for high-performance computing applications. It features 18 physical cores and supports 36 threads, making it an ideal choice for applications that require a high level of parallel processing.
The processor’s support for Intel’s Advanced Vector Extensions 2 and Turbo Boost Technology, as well as its large L3 cache, help to improve its performance in a variety of workloads. With support for up to 1.5TB of DDR4 memory and up to 40 lanes of PCIe 3.0, the processor can handle even the most demanding applications.
General Information about this HPE 835616-001
- Manufacturer: HPE
- Part Number or SKU# 835616-001
- Type: Processor
- Sub Type: Intel Xeon 18-Core
Technical Information for Xeon 18-Core CPU
- Clock speed: 2.3GHz Processor
- Max turbo frequency: 3.6GHz
- Quick path interconnect(QPI) speed: 8GT/s
- No of qpi links: 2
- Instruction set: 64-Bit
- Instruction set extensions: AVX 2.0
Cache Memory Detail of 64-Bit Processor
- L3 Cache: 45MB
- Lithography: 14NM
- Max Thermal Design Power (TDP): 145W
- Compatible Processor Socket: FCLGA2011
