Description
Overview to the 850367-S01 Intel Xeon

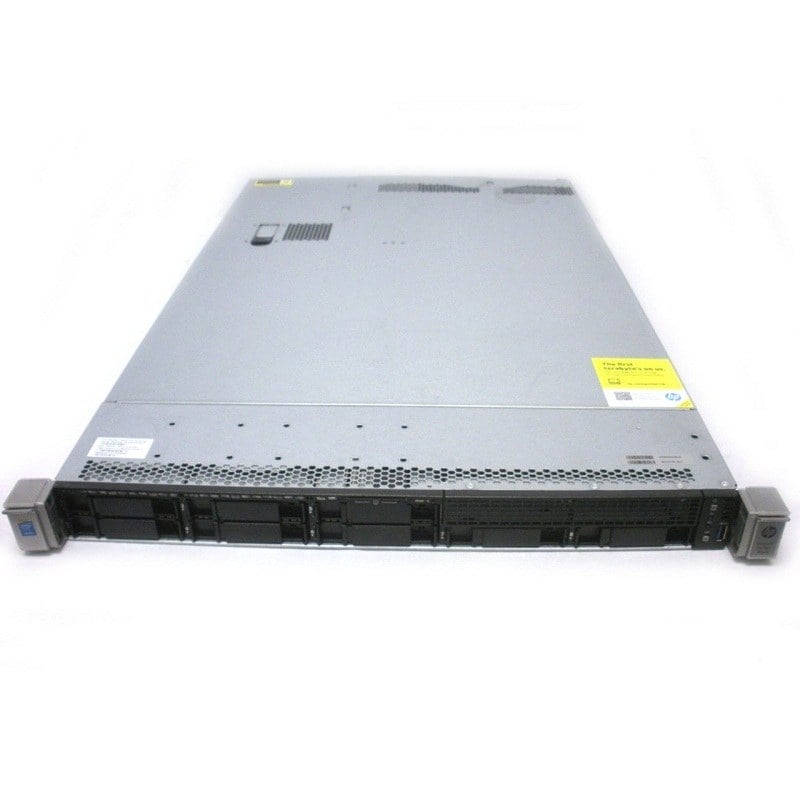

HPE (Hewlett Packard Enterprise) 850367-S01 ProLiant DL360 is a high-performance, Gen9 server designed for enterprise-level workloads. This server comes with powerful hardware components, including 2 processors, 64GB DDR4 DIMMs, 8 SFF SATA bays, and 2 x 800W power supplies. In this article, we will take a closer look at each of these components and their features.
Processors
The HPE 850367-S01 ProLiant DL360 server comes with two Intel Xeon E5-2690V4 processors. These processors are designed for high-performance computing and have a base clock speed of 2.6GHz. They also feature Intel Hyper-Threading technology, which allows each core to handle two threads simultaneously, increasing the server’s overall processing power. The processors also come with Intel Turbo Boost technology, which increases the clock speed of the processors when the workload demands it.
DDR4 DIMMs
The HPE 850367-S01 ProLiant DL360 server comes with 64GB DDR4 DIMMs. DDR4 is the latest generation of double data rate synchronous dynamic random-access memory (SDRAM) and is designed for higher performance and lower power consumption compared to its predecessor, DDR3. DDR4 DIMMs are also backward compatible with DDR3 DIMMs, so you can mix and match them in the same server.
SFF SATA Bays
The HPE 850367-S01 ProLiant DL360 server comes with 8 SFF (small form factor) SATA bays. These bays are designed to accommodate 2.5-inch SAS or SATA hard drives or solid-state drives (SSDs). The server also supports hot-swapping, which means you can replace or add hard drives without shutting down the server. The SFF bays are also configurable, which means you can set up RAID arrays for data redundancy and protection.
Power Supplies
The HPE 850367-S01 ProLiant DL360 server comes with two 800W power supplies. These power supplies are redundant, which means that if one power supply fails, the other one will take over and keep the server running. The power supplies also come with HPE’s Intelligent Power Discovery technology, which enables the server to discover and communicate with the power supplies, optimizing power usage and reducing energy costs.
Gen9 Server
Overall, the HPE 850367-S01 ProLiant DL360 is a Gen9 server. Gen9 servers are designed for the modern data center, which requires high-performance computing, virtualization, and cloud computing. Gen9 servers come with a range of features that make them ideal for enterprise-level workloads, including:
- Scalability: Gen9 servers are designed to be easily scalable, allowing you to add or remove components as your workload demands.
- Flexibility: Gen9 servers come with a range of customization options, allowing you to configure them to meet your specific needs.
- Security: Gen9 servers come with a range of security features, including hardware-based encryption, secure boot, and firmware validation.
- Management: Gen9 servers come with a range of management tools, including HPE Integrated Lights-Out (iLO), which allows you to manage the server remotely, even if it’s powered off or not responding.
General Information
- Brand Name : HPE
- Part Number or SKU# 850367-S01
Technical Information
- Number Of Cores: 14-core
- CPU Qty: 2
- Max CPU Qty: 2
- CPU Upgradability: Upgradable
- Max Turbo Speed: 3.3 GHz
- Processor Main Features: Hyper-threading Technology, Intel Turbo Boost Technology 2
Memory of this E5- 2680 v4 2.6 GHz Processors
- Installed Size: 64 GB / 384 GB (max)
- Technology: Ddr4 SDRAM – Advanced ECC
- Memory Specification Compliance: Pc4-17000
- Form Factor: DIMM 288-pin
- Features: Registered, Online Spare Memory, Quad Channel Memory Architecture, Hp Smartmemory
- Configuration Features: 4 X 16 GB
- Ram Supported: Pc4-17000 – 768 GB – Load-reduced ¦ Pc4-17000 – 384 GB – Registered
Storage Controllers
- Type: 1 X Raid – PCIE 3.0 X8
- Controller Interface Type: SATA 6gb/s / SAS 12gb/s
- Storage Controller Name: Smart Array P440ar With 2gb Fbwc
- Raid Level: Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
- Buffer Size: 2 GB
Display & Graphics Controllers
- Graphics Processor: Matrix G200
- Video Interfaces: VGA
Network & Communication
- Ethernet Ports: 4 X Gigabit Ethernet
- Ethernet Controller: Hp 331i
- Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote Management Controller: Integrated Lights-out 4
- Features: Wake On LAN (WOL), PXE Support
- Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Expansion/ Connectivity
- 1 (total) / 1 (free) X External
- 8 (total) / 8 (free) X Hot-swap 2.5 SFF
- 24 (total) / 20 (free) X DIMM 288-pin
- 2 (total) / 0 (free) X CPU
- 1 (total) / 1 (free) X PCIE 3.0 X16 – Three-quarter-length, Full-height
- 1 PCIE 3.0 X8 – Low-profile
- 1 (total) / 0 (free) X Flexible
- 1 (total) / 1 (free) X Micros Card (internal)
Interfaces & Ports
- 1 X VGA
- 1 X Serial
- 4 X LAN (gigabit Ethernet)
- 1 X Hp Ill
- 5 X USB 3.0 (1 Front, 2 Rear, 2 Internal)
Miscellaneous
- Compliant Standards
- CPI 2.0b, FCC Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, CISP 22, FCC Cfr47 Part 15, IEC 60950-1, En 60950-1, WEEE, GB 9254, CNS 13438
Power Description
- Device Type: Power Supply – Hot-plug
- Power Redundancy: Yes
- Power Redundancy Scheme: 1+1
- Installed Qty: 2
- Max Supported Qty: 2
- Nominal Voltage: Ac 120/230 V (50/60 Hz)
- Power Provided: 800 Watt
- 80 Plus Certification: 80 Plus Platinum
Dimensions & Weight
- Width: 17.1 Inch
- Depth: 27.5 Inch
- Height: 1.7 Inch
- Weight: 27.01 Lbs
