Description
Benchmark and Performance Metrics

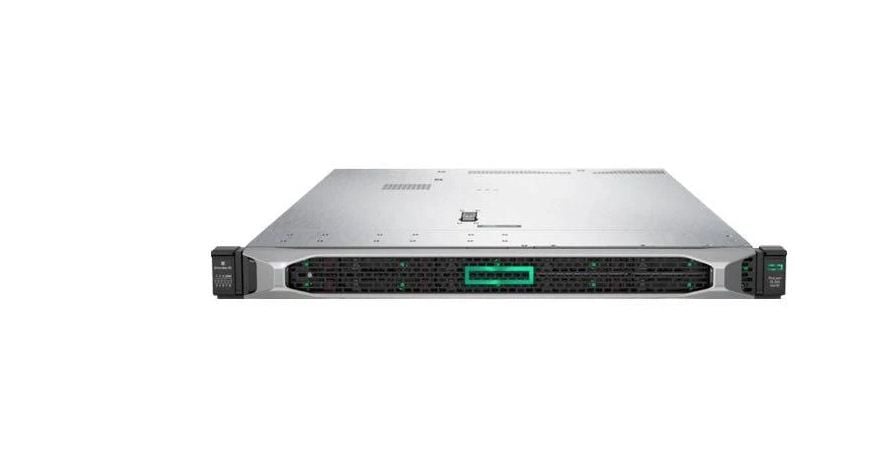

P40408-B21 HPE Proliant DL360 Gen10 NC is a high-performance server designed for enterprise-level computing and data-intensive applications. This server model is equipped with 1x Intel Xeon 20-core 2.1GHz processor and 32GB DDR4 RAM.
To evaluate the performance of P40408-B21 HPE Proliant DL360 Gen10 NC, the following benchmark and performance metrics can be used:
- CPU performance: The performance of the server’s CPU can be evaluated using benchmarks such as SPEC CPU2006 or Geekbench. These benchmarks measure the server’s ability to handle complex computations, including floating-point calculations, integer calculations, and memory access.
- Memory bandwidth: The memory bandwidth of the server can be measured using benchmarks such as STREAM. This benchmark measures the speed at which the server can transfer data to and from memory.
- Network performance: The network performance of the server can be evaluated using benchmarks such as iperf or netperf. These benchmarks measure the server’s ability to handle network traffic, including data transfer rates and latency.
- Storage performance: The storage performance of the server can be evaluated using benchmarks such as IOmeter or FIO. These benchmarks measure the server’s ability to handle I/O operations, including read and write speeds and latency.
- Power consumption: The power consumption of the server can be measured using a power meter or software tools such as PowerTOP. This metric can help evaluate the server’s energy efficiency and operating costs.
Remote Management and Virtualization Capabilities
The HPE Proliant DL360 Gen10 Nc Model server with the P40408-B21 configuration is a powerful server that comes equipped with remote management and virtualization capabilities. Let’s break down each of these capabilities in more detail.
Remote Management: The HPE Proliant DL360 Gen10 Nc Model server comes with HPE iLO5 (Integrated Lights Out) management software, which provides remote management capabilities. With iLO5, you can remotely manage and monitor the server from anywhere in the world using a web browser or the HPE iLO mobile app. This means that you can troubleshoot issues, update firmware, and perform other administrative tasks without physically being in the same location as the server.
Virtualization Capabilities: The P40408-B21 configuration of the HPE Proliant DL360 Gen10 Nc Model server comes with 32GB of DDR4 RAM and 1x Intel Xeon 20-core 2.1GHz processor. These hardware components are well-suited for running virtualized environments. With virtualization, you can create multiple virtual machines (VMs) on a single physical server, allowing you to run multiple operating systems and applications simultaneously. This can help reduce costs by consolidating multiple physical servers onto a single server.
In addition to the hardware components, the HPE Proliant DL360 Gen10 Nc Model server comes with HPE OneView, which is a management software that provides a unified interface for managing both physical and virtual resources. With HPE OneView, you can manage virtual machines, storage, and networking resources, as well as monitor the health and performance of your virtualized environment.
Security and System Management Features
The P40408-B21 HPE Proliant DL360 Gen10 NC Model is a server designed for high-performance computing and virtualization workloads. It comes with a variety of security and system management features to ensure the server’s reliability, availability, and serviceability.
Some of the key security features of the server include:
- Secure Boot: The server has a secure boot feature that ensures the integrity of the boot process by verifying the firmware, operating system, and other boot components before they are loaded.
- Trusted Platform Module (TPM): The server has a TPM module that provides hardware-based encryption and authentication capabilities to protect sensitive data.
- Advanced Encryption Standard (AES): The server supports AES encryption for data at rest, which ensures that any stored data is protected from unauthorized access.
- Secure Erase: The server has a secure erase feature that allows you to securely erase all data on the server’s hard drives, making it nearly impossible to recover any sensitive data.
- Integrated Lights-Out (iLO): The server comes with HPE’s iLO management system, which provides secure remote access and management capabilities, including secure firmware updates and remote console access.
In terms of system management features, the server includes:
- HPE OneView: The server supports HPE’s OneView management platform, which provides a unified view of all your HPE infrastructure, allowing you to manage your servers, storage, and networking from a single console.
- Intelligent Provisioning: The server includes HPE’s Intelligent Provisioning tool, which simplifies server deployment and configuration by automating many of the setup tasks.
- Redundant Components: The server includes redundant power supplies, fans, and network controllers, which provide additional reliability and availability in case of hardware failures.
- Smart Array Controller: The server includes an HPE Smart Array controller, which provides advanced RAID and storage management capabilities.
- Firmware Updates: The server includes automated firmware updates through HPE’s Service Pack for ProLiant (SPP), which ensures that your server’s firmware is always up-to-date with the latest security and performance updates.
General Information
- Manufacturer: HPE
- MPN: P40408-B21
- Type : Server
- Server Type: Proliant DL360
- Server Scalability : 2-Way
- Product Name: Proliant DL360 Gen10 – Rack Mountable Server (Networking Choice Model)
- SKU: P40408-B21
Processor & Chipset
- Cpu : 2nd Gen Intel Xeon Silver 5218r / 2.1 GHz
- Max Turbo Speed : 4 GHz
- Number Of Cores : 20-core
- Cpu Qty : 1
- Max Cpu Qty : 2
- Cpu Upgradability : Upgradable
- Processor Main Features : Hyper-threading Technology, Intel Turbo Boost Technology 2
- Cpu Socket : Fclga3647 Socket
- Chipset Type : Intel C621
Cache Memory :
- Installed Size : L3 Cache – 27.5 MB
- Cache Per Processor : 27.5 MB
Ram
- Installed Size : 32 GB / 1.5 TB (max)
- Technology : DDR4 SDRAM- Advanced Ecc
- Effective Memory Speed : 2666 MHz
- Rated Memory Speed : 2933 MHz
- Form Factor : DIMM 288-Pin
- Slots : 24 (total) / 23 (empty)
- Features : Registered, Slots 13 – 24 Are Available In Two-processor Configuration Only, Hpe Smartmemory
- Configuration Features : 1 X 32 GB
- Ram Supported : 3 TB Load-reduced – Ecc 1.5 Tb Registered – Ecc 192 Gb Non-volatile – Ecc
Hard Drive
- Type : No HDD
Storage Controllers
- Type : 1 X Sata
- Controller Interface Type : Sata 6gb/s
- Storage Controller Name : Hpe Smart Array S100i
- Channel Qty : 14
Optical Storage
- Type: No Optical Drive
Monitor
- Monitor Type : None
Graphics Controller
- Video Memory : 16 Mb
- Video Interfaces : Vga
Network & Communication
- Ethernet Ports : 2 X 10 Gigabit Ethernet
- Ethernet Controller : Broadcom Bcm57416
- Data Link Protocol : 10 Gigabit Ethernet
- Remote Management Controller : Integrated Lights-out 5
- Features : Wake On Lan (wol), Pxe Support
Expansion / Connectivity
- Bays :
- 1 (total) / 1 (free) X External Universal Media Bay
- 8 (total) / 8 (free) X Hot-swap 2.5 Sff
Slots :
- 1 (total) / 1 (free) X Pcie 3.0 X16 – Three-quarter-length, Full-height
- 1 (total) / 1 (free) X Pcie 3.0 X8 – Low-profile
- 1 (total) / 0 (free) X Flexiblelom
- 1 (total) / 1 (free) X Microsd Card (internal)
Interfaces :
- 1 X Vga
- 2 X Lan (10gigabit Ethernet)
- 1 X Hpe Ilo – Rj-45
- 3 X Usb 3.0 (1 Front, 2 Rear)
Miscellaneous
- Included Accessories : Hpe Standard Heatsink, 5 X Standard Fans, Sff Easy Install Rails
- Compliant Standards : Aes, Triple Des, Tls V1.2, Ashrae Class A4, Ashrae Class A3, Weee 2002/95/ec, Redfish Api, Uefi
Power Description
- Device Type : Power Supply – Hot-plug
- Power Redundancy : Optional
- Power Redundancy Scheme : 1+1 (with Optional Power Supply)
- Installed Qty : 1
- Max Supported Qty : 2
- Voltage Required : Ac 120/230 V (50/60 Hz)
- Power Provided : 800 Watt
- 80 Plus Certification : 80 Plus Platinum
Operating System
- Os Provided : No Operating System
Environmental Standards
- Energy Star Certified : Yes
- Energy Star Version : 3.0
Dimensions & Weight
- Width : 17.1 In
- Depth : 27.8 In
- Height : 1.7 In
- Weight : 28.75 LBS
