Details Information about this IBM 02JK690

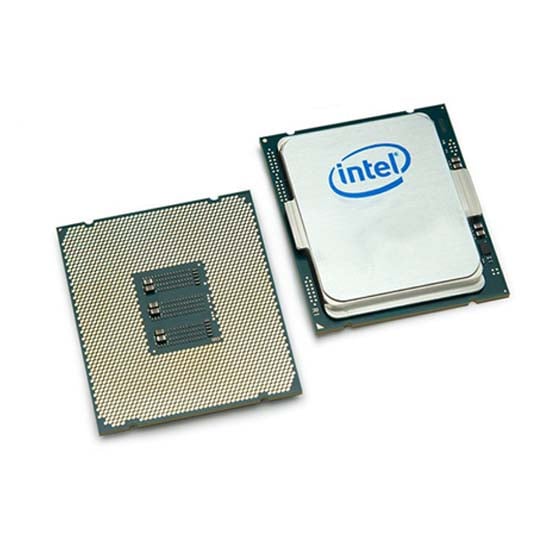

The IBM Xeon 16-core Gold 6246R 3.40GHz 35.75MB processor is based on the Intel Xeon Scalable Processor family and is manufactured using the 14nm process node technology.
The manufacturing process refers to the sequence of steps involved in creating a semiconductor device like a processor. The 14nm process node technology refers to the minimum feature size of transistors used in the processor. In this case, the 14nm process node technology means that the smallest feature size on the processor is 14 nanometers (nm).
To put this into context, a human hair is typically around 100,000 nm in diameter, so the 14nm process node technology represents a very small scale of manufacturing. The smaller feature size allows for more transistors to be packed into a smaller area, which leads to faster and more power-efficient processors.
The IBM Xeon 16-core Gold 6246R 3.40GHz 35.75MB processor has 16 cores and a clock speed of 3.40GHz. It also has a large 35.75MB cache size, which helps improve performance by reducing the time it takes to access frequently used data. The processor has a high thermal design power (TDP) of 205 watts, which means that it can consume a lot of power when running at full capacity. However, it is also designed to dynamically adjust its power consumption based on workload demands, which helps to optimize energy efficiency.
Core Count and Clock Speed
The IBM Xeon 16-core Gold 6246R processor is a high-performance CPU designed for use in servers and workstations. It features 16 processing cores, which means that it has 16 independent processing units that can each execute instructions simultaneously. This allows the processor to handle a large number of tasks at once, making it well-suited for demanding applications such as data analysis, scientific computing, and virtualization.
The clock speed of the Gold 6246R processor is 3.40 GHz. This refers to the frequency at which the processor’s internal clock ticks, and determines how many instructions the processor can execute per second. A higher clock speed generally means better performance, but it also comes with higher power consumption and heat generation.
In addition to its core count and clock speed, the Gold 6246R processor also has a large 35.75MB cache, which allows it to store frequently accessed data close to the processing cores for faster access. It is built using a 14nm manufacturing process, which means that the transistors on the chip are 14 nanometers apart, allowing for a higher density of transistors and better performance. Finally, the processor has a high power consumption of 205 watts, which means it requires a robust cooling solution and is generally used in systems with high power budgets.
Cache Size and Hierarchy
The IBM Xeon 16-core Gold 6246R processor has a cache size of 35.75MB. Cache is a type of high-speed memory that stores frequently accessed data and instructions. The larger the cache size, the more data and instructions can be stored, which can help to improve the overall performance of the processor.
There are typically three levels of cache in a processor, known as L1, L2, and L3. Each level of cache is faster but smaller than the level before it. The cache hierarchy works as follows:
- L1 cache is the fastest and smallest cache, located closest to the processor cores. It stores the most frequently accessed data and instructions.
- L2 cache is larger than L1 cache, but slightly slower. It is typically shared among the processor cores and helps to reduce the amount of data that needs to be fetched from the main memory.
- L3 cache is even larger than L2 cache, but slower than both L1 and L2. It is also shared among the processor cores and helps to further reduce the amount of data that needs to be fetched from the main memory.
In the case of the IBM Xeon 16-core Gold 6246R processor, the 35.75MB cache size is likely a combination of L2 and L3 cache. However, the exact breakdown between L2 and L3 cache is not specified in the processor’s specifications.
General Information
- Product Type : Server Processor
- Sub Type : 16-core
- Product manufacturer : Lenovo
- MPN : 02JK690
- Product model : Gold 6246R
- SKU : 02JK690
Technical Information
- Clock Speed : 3.40ghz
- Max Turbo Frequency : 4.10ghz
- No. Of Upi Links : 2
- Instruction Set : 64-bit
- Instruction Set Extensions : Intel® Sse4.2, Intel® Avx, Intel® Avx2, Intel® Avx-512
Cache Memory Detail
- Smart Cache : 35.75mb
- Lithography : 14nm
- Max Thermal Design Power (TDP) : 205w
- Compatible Processor Socket : FCLGA3647
Memory Specifications
- Max Memory Size (dependent On Memory Type) : 1TB
- Memory Types : DDR4-2933
- Maximum Memory Speed : 2.9ghz
- Max No. Of Memory Channels : 6
- Ecc Memory Supported : Yes
Dimension & Weight
- Width: 2.8 Inch
- Depth : 3.9 Inch
- Height : 0.6 Inch
- Weight : 0.50 Lbs
